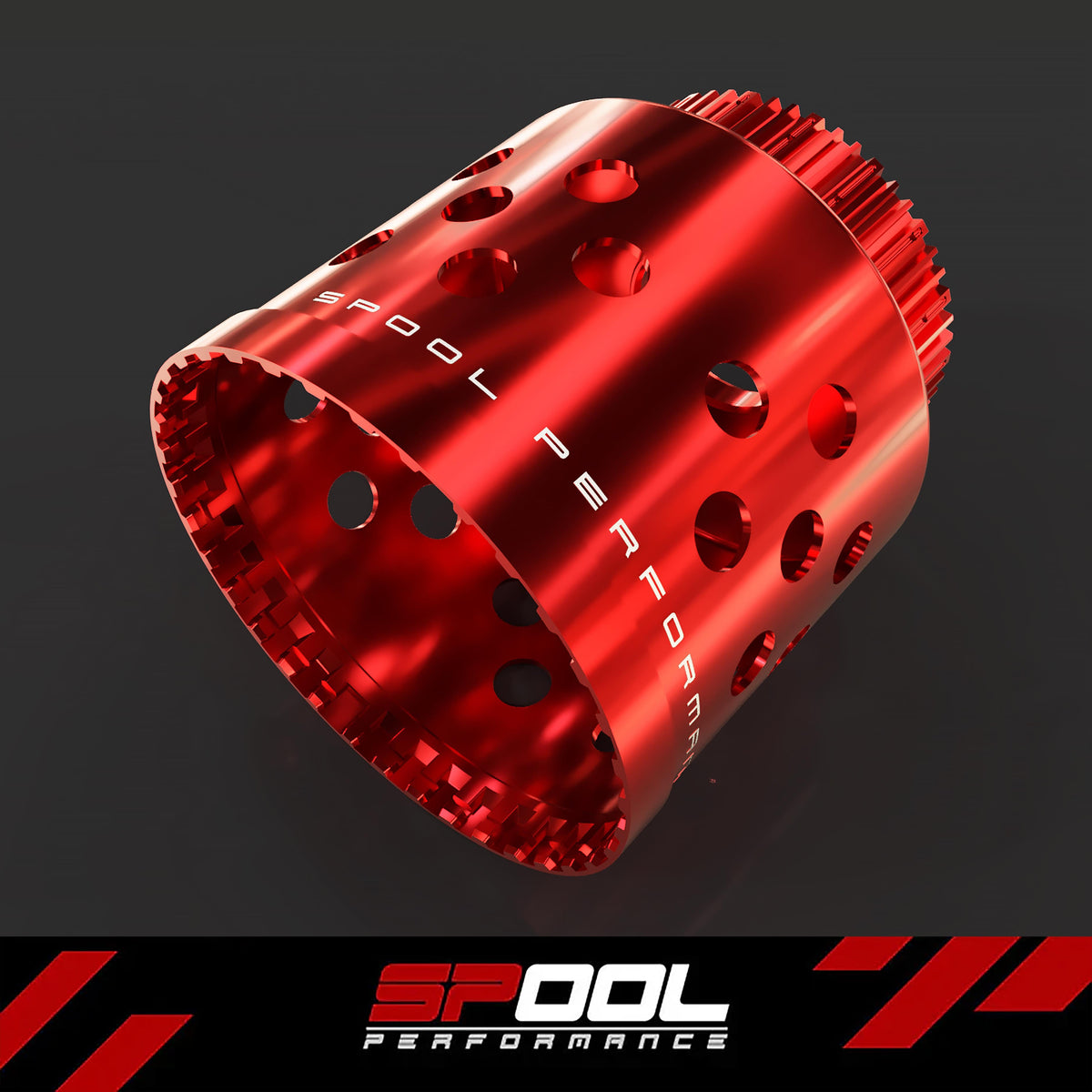

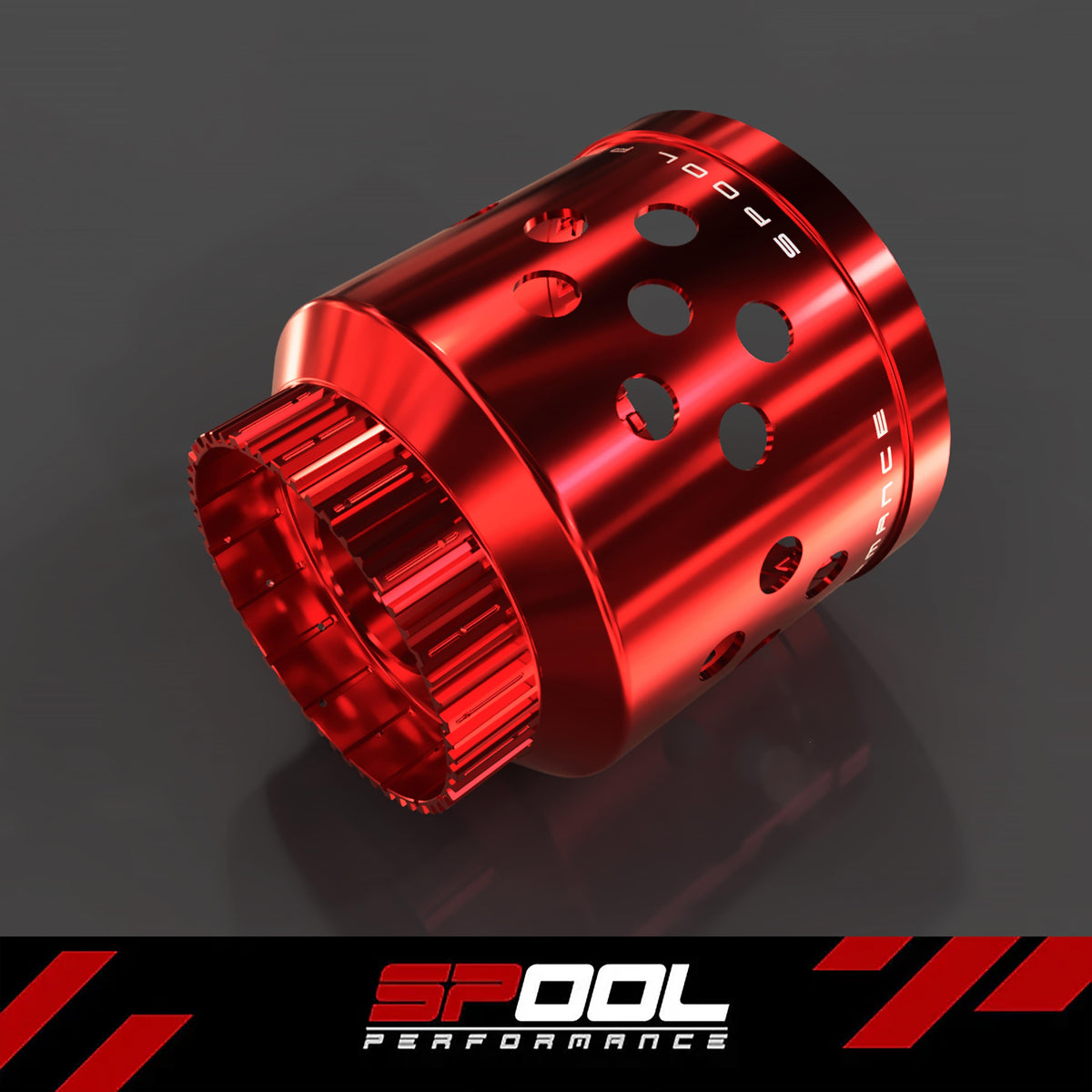

Spool Performance 8HP45 / 8HP50 / 8HP51 upgraded billet 7075-T6 D Clutch Drum

Spool Performance 8HP45 / 8HP50 / 8HP51 upgraded billet 7075-T6 D Clutch Drum

The factory A380 cast-aluminum D-drum in the ZF 8HP45/50/51 is one of the weak links once power levels rise—prone to cracking, distortion, and oil starvation under high load and high RPM clutch events. Spool Performance eliminates that limitation with a fully CNC-machined billet 7075-T6 D Clutch Drum, engineered for extreme durability and precise hydraulic control in high-horsepower builds.

Why 7075-T6? Superior Strength Where It Matters

Most OEM drums use A380 cast aluminum, chosen for cost—not strength. By contrast, 7075-T6 aerospace-grade billet aluminum delivers:

Massive Strength Increase Over A380

• 7075-T6 tensile strength: ~74–78 ksi

• A380 cast aluminum: ~46 ksi

• Result: Significantly higher resistance to cracking, deformation, and fatigue under aggressive clutch pressure spikes.

Why not Steel? - Half the Weight of Steel, Similar Strength

• Steel drums are strong but heavy, increasing rotational inertia.

• Deep Anodizing on the 7075-T6 brings its hardness to the same level as the clutch steels preventing teeth deformation.


• 7075-T6 offers near-steel strength at a fraction of the weight, improving drivetrain responsiveness and shift speed.

Better Heat Dissipation

7075 conducts heat more efficiently than steel, helping stabilize clutch pack temperatures during repeated high-load gear changes.

Precision Billet Machining for Performance

Our D drum is fully CNC-machined from a solid 7075-T6 billet, ensuring:

• Perfect roundness (no casting porosity)

• Consistent wall thickness

• Zero structural voids

• Increased clutch apply stability at high line pressures

This means cleaner, faster clutch engagement with drastically improved durability.

Improved Oil Pathways = Better Cooling & Apply Control

The Spool Performance upgraded drum integrates re-engineered oil feeds and flow channels, providing:

• More efficient fluid delivery to the clutch pack

• Enhanced cooling, reducing clutch heat soak during hard driving

• Better lubrication coverage, preventing hot spots and friction-surface distortion

These improvements directly translate to longer clutch life and higher power tolerance.

Whether you’re running upgraded turbos, ethanol, or launching heavy AWD setups, this drum is designed to withstand the load and hydraulic pressure that overwhelm the stock A380 unit.
