Fueling Solutions

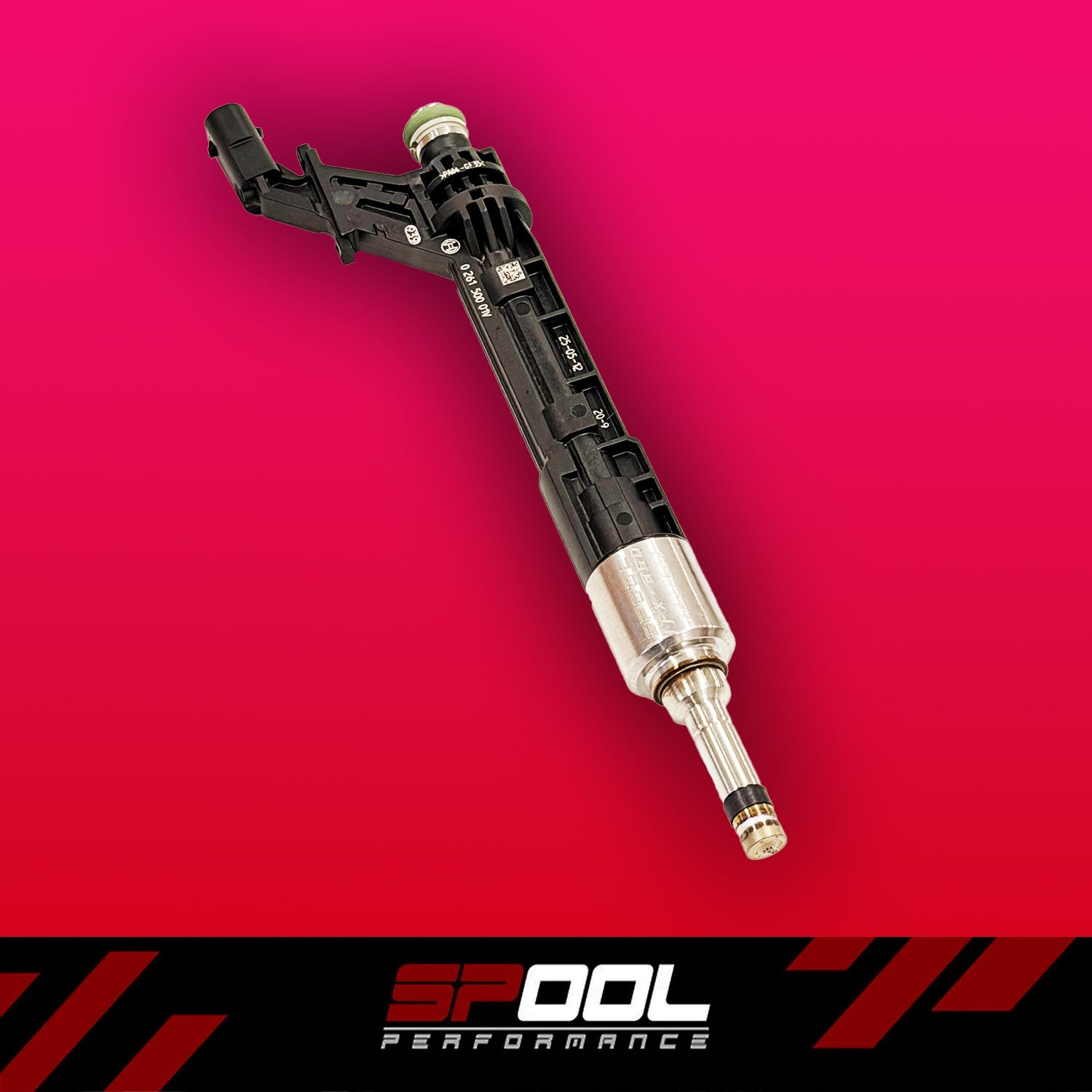

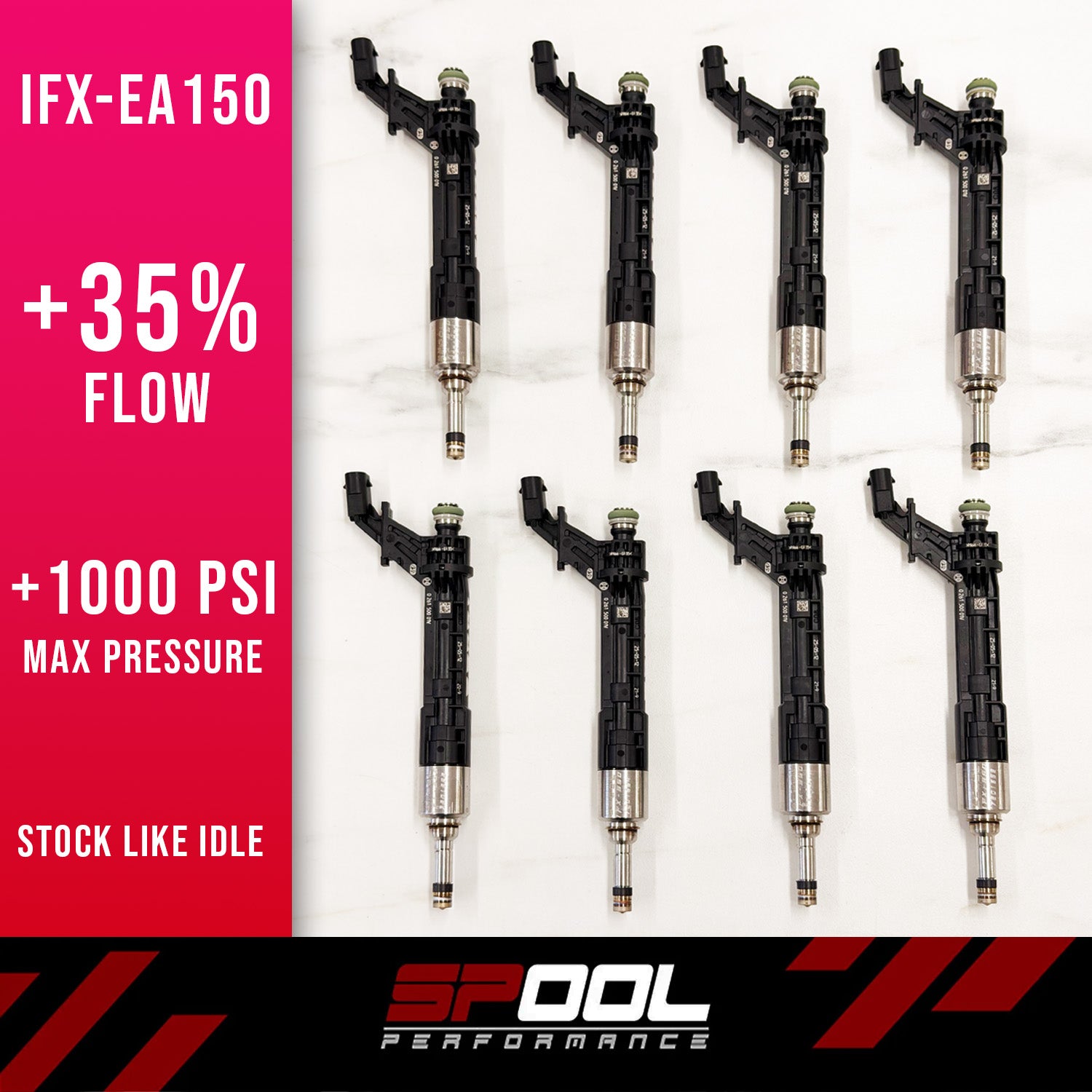

Spool Performance IFX-EA150 Upgraded DI Injectors for EA825

Unlock the full fueling potential of your EA825 platform with the Spool Performance IFX-EA150 Upgraded Direct Injectors—precision-engineered to support serious power with OEM-like refinement. Delivering 35% more flow and an additional 1,000 psi of maximum rail pressure capability, the IFX-EA150 injectors provide the fueling headroom required for high-boost, high-airflow builds.

    Once boost, airflow, or ethanol content increase, the factory EA825 injectors quickly become the limiting factor. High-RPM pulse-width extensions, late injection events, and cylinder-to-cylinder imbalance can all show up when the DI system is pushed beyond its design.

The IFX-EA150 injectors eliminate these constraints by offering:

• 35% Increased Flow Capacity
  More mass fuel per event with reduced pulse-width at high RPM.

• +1,000 psi Additional Pressure Capability
  Stronger atomization and improved combustion consistency even under extreme cylinder pressures.

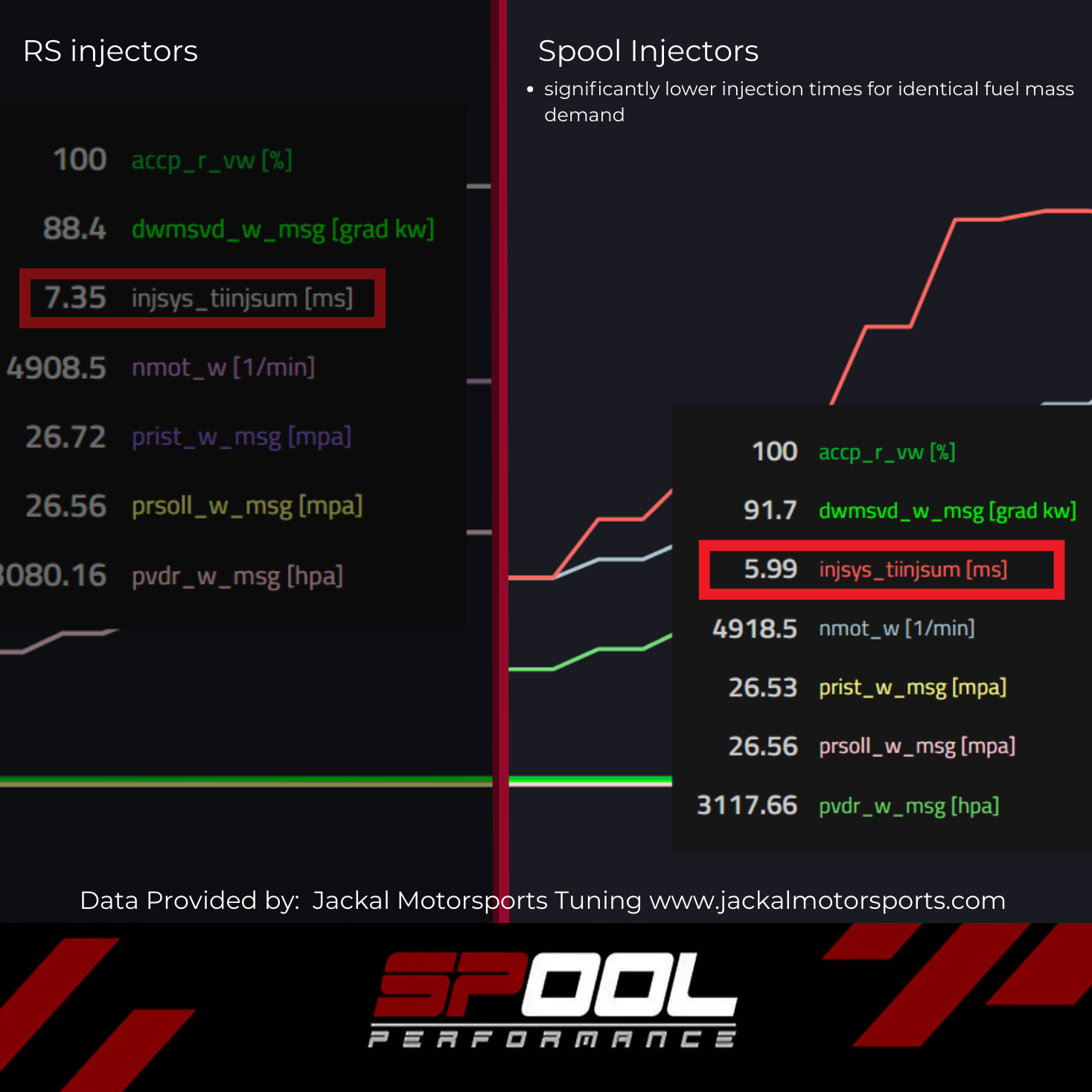

• Shorter Injection Window
  Meets fueling targets earlier in the cycle for cleaner, more complete combustion.

Performance Advantages

• Supports higher boost and more aggressive ignition timing

• Stabilizes fueling at high RPM where stock injectors fall short

• Enables safe power on ethanol blends, including E50–E85, without running the DI system at its limits

• Prevents lean-out, late-cycle injection, and uneven fuel distribution

• Ideal for big turbo and hybrid turbo EA825 builds targeting 800–1000+ whp

Optimized for E85 and High Ethanol Content

Ethanol requires ~30% more volume than pump gas to achieve the same energy output. This places enormous strain on the stock DI injectors and HPFP. The IFX-EA150 injectors provide the additional flow and pressure needed to run E85 or high-ethanol blends confidently and safely.

With the added flow capacity and increased pressure ceiling, the injectors maintain:

• Consistent lambda under high load

• Safe injector pulse-width at redline

• Stable spray pattern and atomization even with ethanol’s higher volume demand

When paired with the FX350 HPFP, the system has more than enough headroom to support full E85 on high-power EA825 builds—DI only.

Perfect Match With the Spool Performance FX350 HPFP

Combine the IFX-EA150 injectors with our Spool Performance FX350 High-Pressure Fuel Pump (capable of up to 35 MPa) for a complete, high-performance DI-only solution.

Combined Benefits of IFX-EA150 + FX350:

• Massive DI headroom for high-boost and ethanol-heavy setups

• Easily supports full E85 without adding port injection

• Shorter injection duration across the board for cleaner combustion

• OEM-like reliability with extreme fueling capacity

• Simplifies your build with a clean, emissions-friendly DI-only configuration

This pairing creates the strongest and cleanest EA825 fueling strategy available—ideal for builders wanting maximum power without the complexity of supplemental fueling.

Tuner-Friendly Calibration Support

To ensure seamless integration, Spool Performance provides full calibration assistance to your tuner. We work directly with tuners worldwide, ensuring your setup performs exactly as engineered.

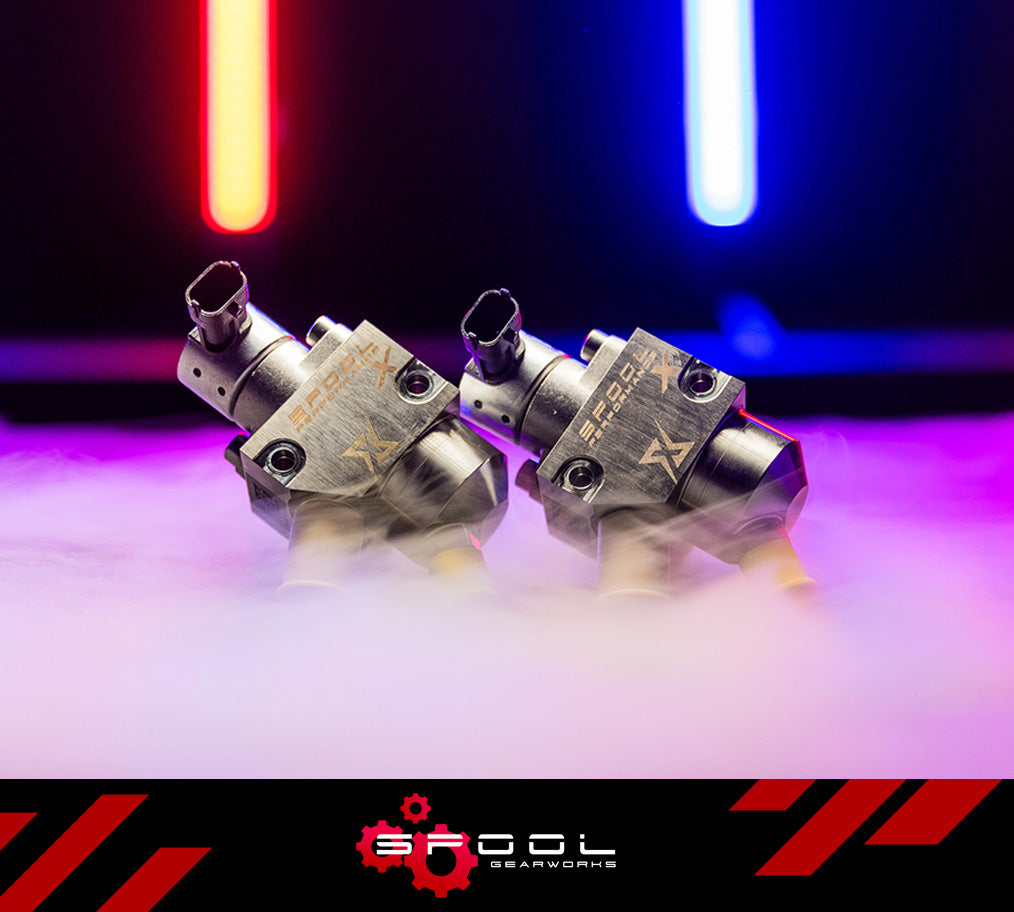

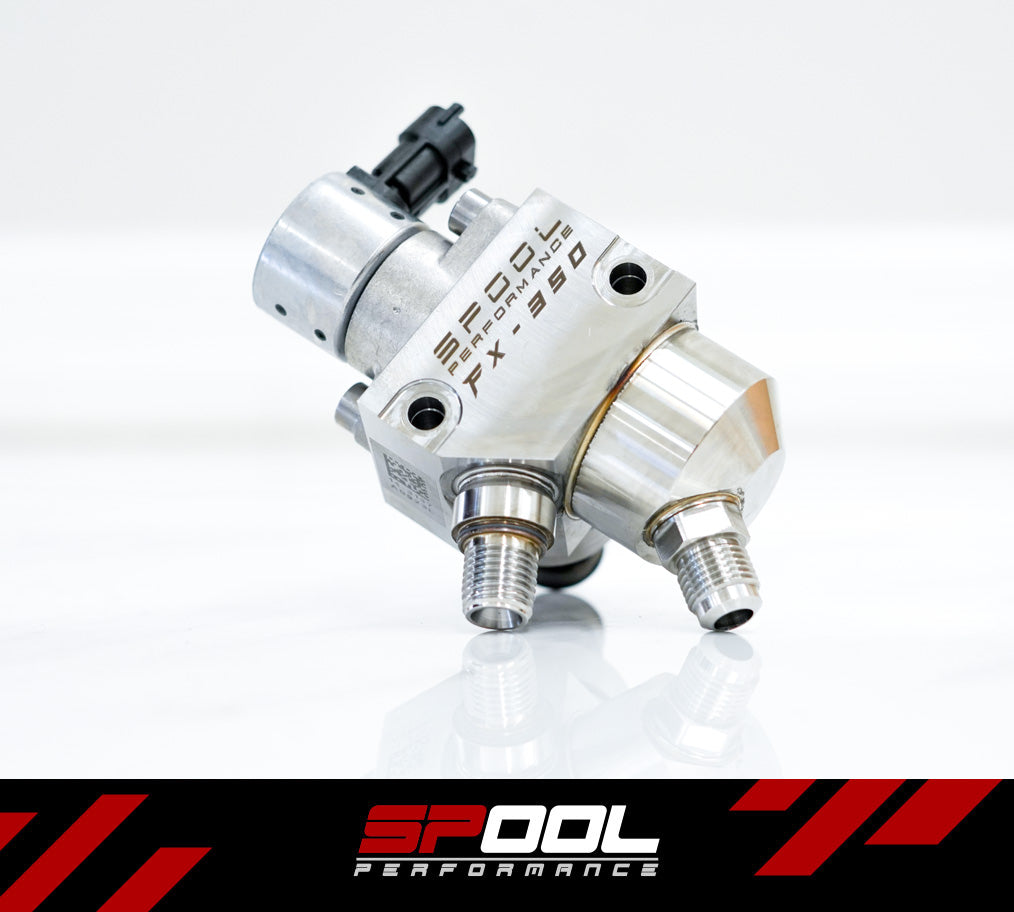

Spool Performance FX-350 High-Pressure Fuel Pump Upgrade for Audi RS Q8

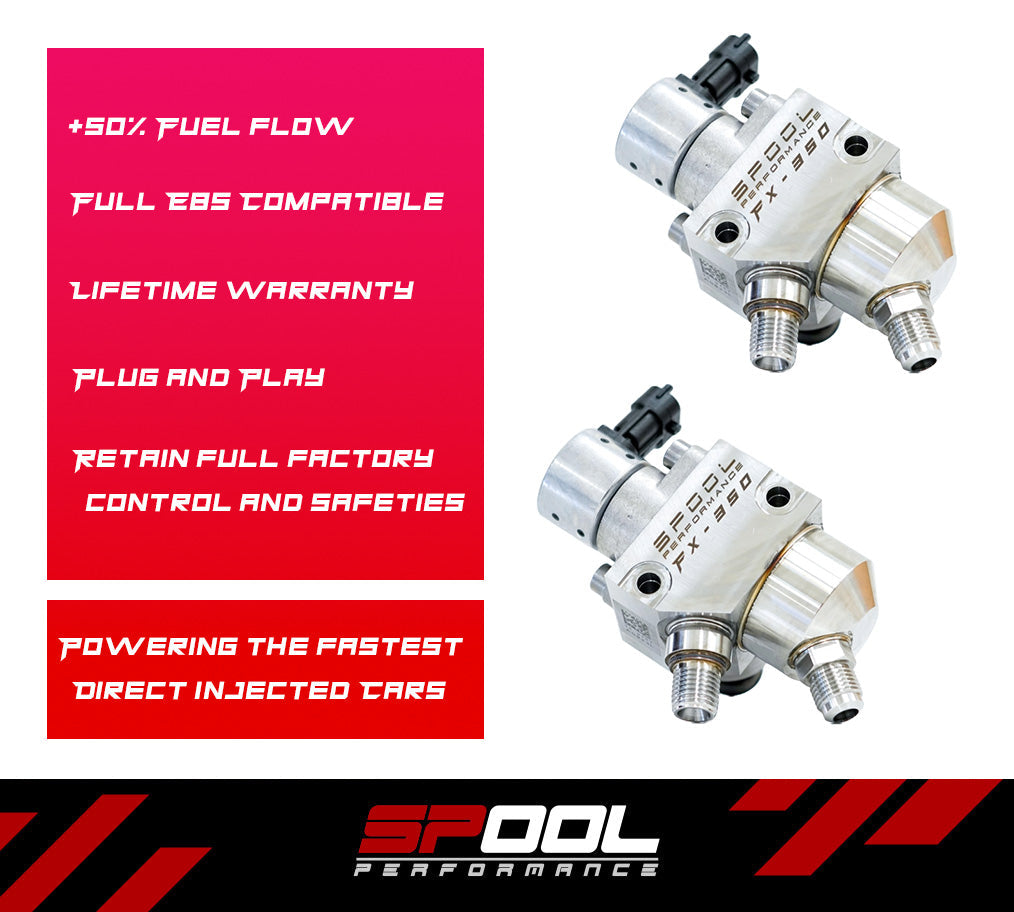

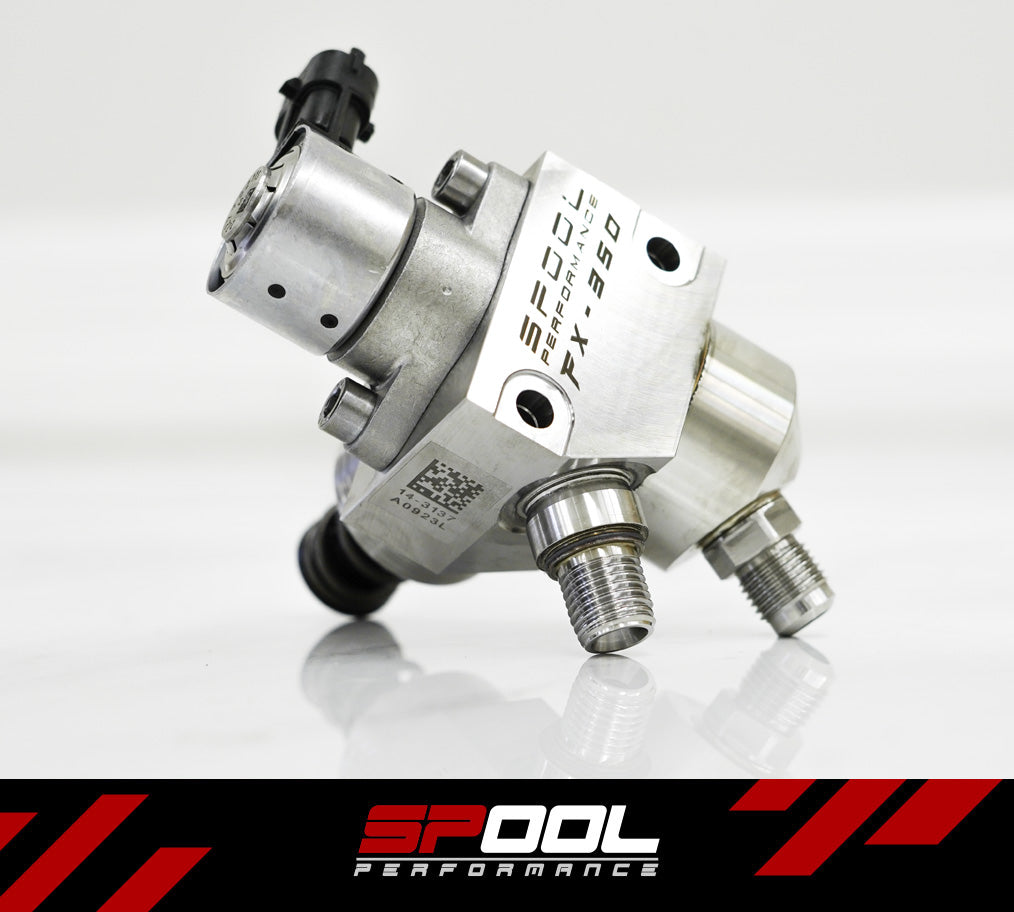

What is the FX-350?

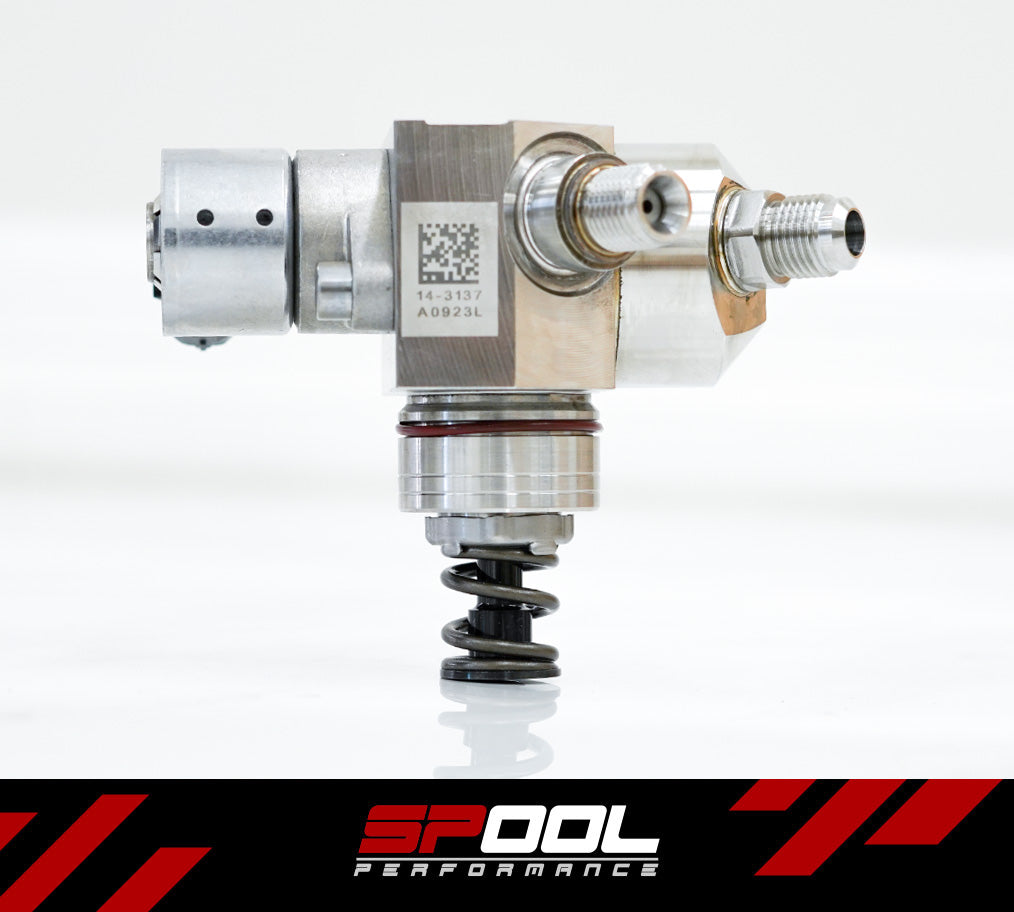

The FX-350 is a high-performance mechanical high-pressure fuel pump designed to elevate the capabilities of your Audi RS Q8. Featuring a larger bore size than the stock pump, it provides approximately 90% more fuel flow, making it ideal for performance tuning and upgrades. Fully E85 compatible and plug-and-play, the FX-350 requires no cutting or splicing during installation. This increased fuel flow allows for higher ethanol concentrations and supports larger turbos, making it perfect for drivers seeking maximum performance. Additionally, the FX-350 operates at pressures up to 350 bar, boosting injector output and reducing injection times for superior performance.

The Spool Performance FX-350 is a game-changer in fuel system engineering, offering improved pressure and atomization for those looking to maximize their Audi RS Q8’s potential.

Why Upgrade?

The stock high-pressure fuel pump in your Audi RS Q8 can limit performance when tuning for higher power. The FX-350 delivers 90% more fuel flow, enabling you to safely increase horsepower, run larger turbos, and use higher ethanol blends. This upgrade is essential for performance enthusiasts looking to push their RS Q8 to the next level.

Enhanced Pressure

The FX-350 is engineered to deliver fuel at an impressive 35Mpa, a major improvement over the FX-200’s 25Mpa. Applying the physics principle Q=PxA (flow rate = pressure x nozzle area), the FX-350 increases fuel flow by 40%, ensuring your Audi RS Q8 gets the necessary fuel for optimal combustion, even in extreme performance conditions.

What’s Included in the Kit?

• 2 x FX-350 upgraded high-pressure fuel pumps
• 1 x Ethanol Content Monitor kit (optional), with mobile app
• 1 x Bosch spec 10-micron high-flow Fuel Filter
• Upgraded fuel lines and installation hardware
• Spool 10-micron filter unit

Spool 10-micron filter

Ensures top-tier filtration for your Audi RS Q8, protecting the high-pressure pump and injectors from debris without causing pressure drops in the low-pressure fuel system.

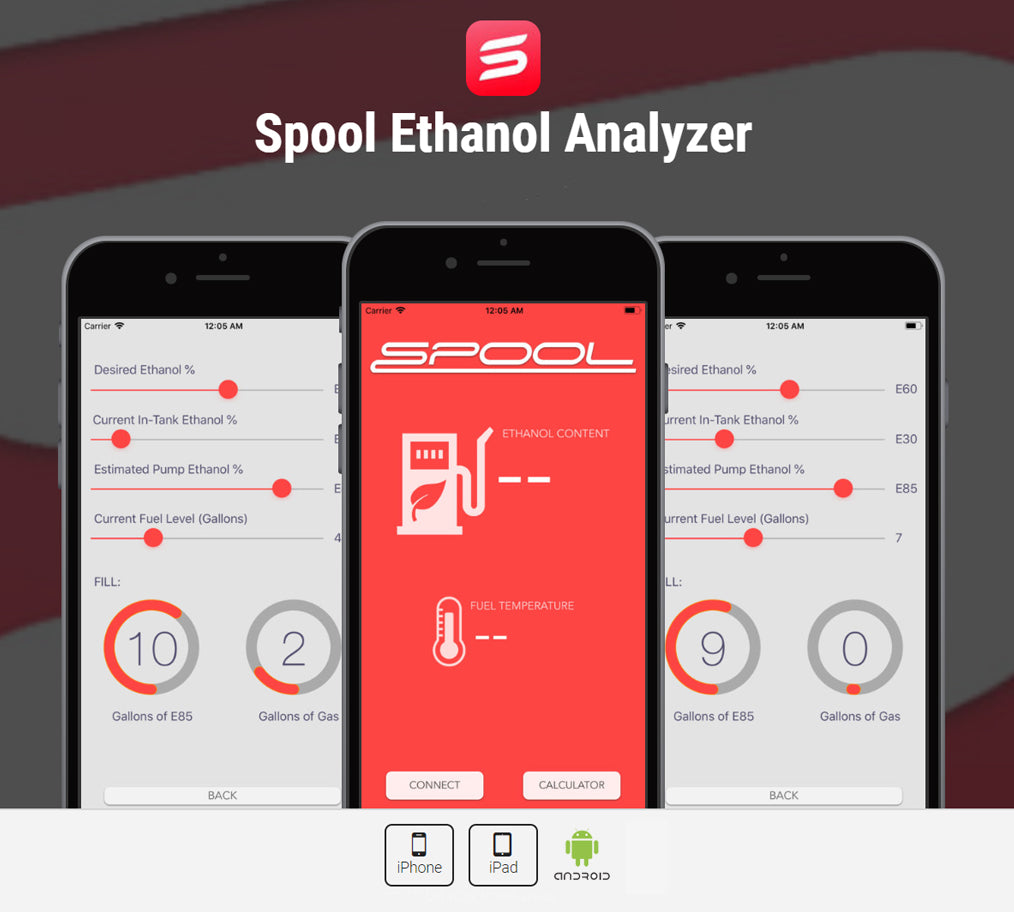

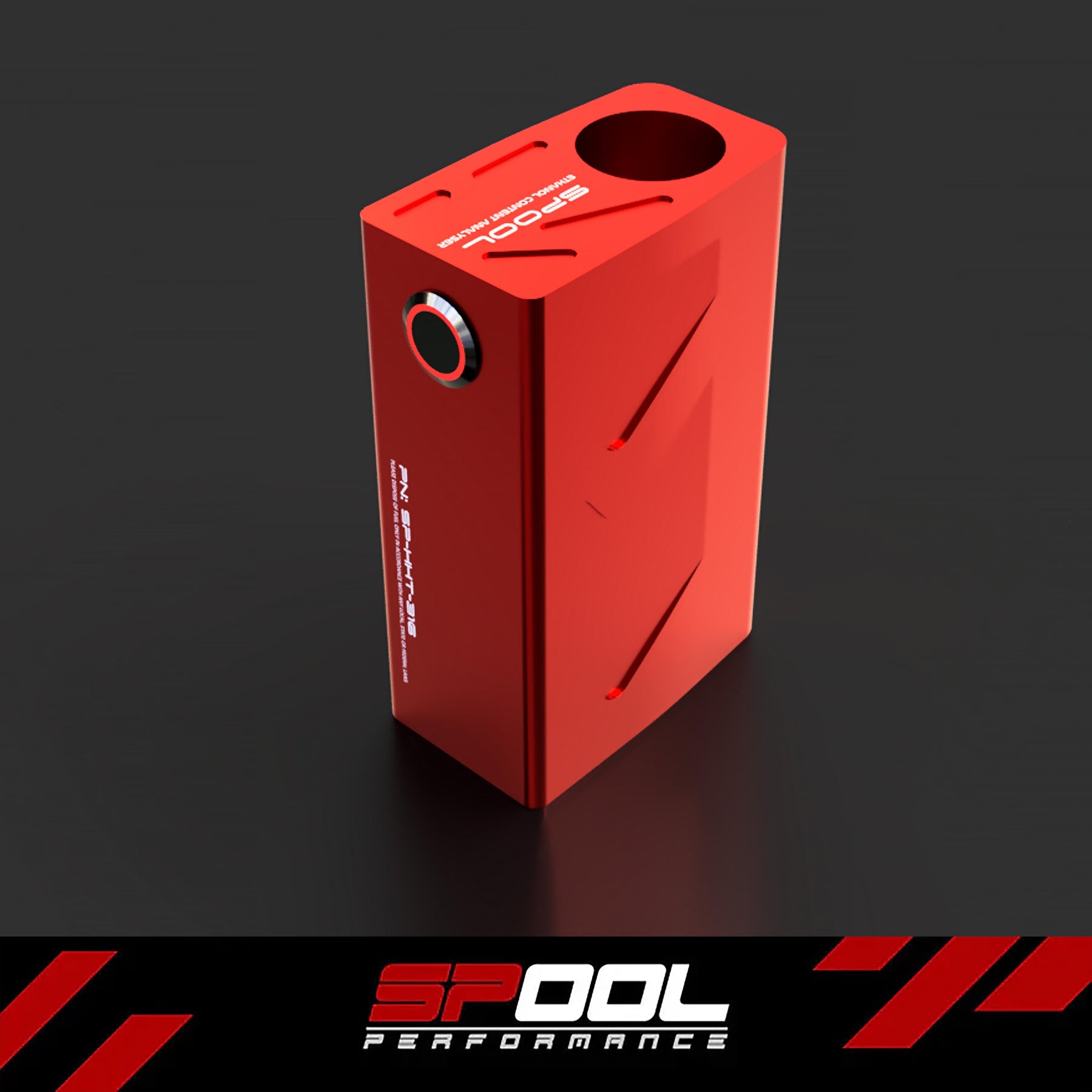

Spool Ethanol Content Monitor

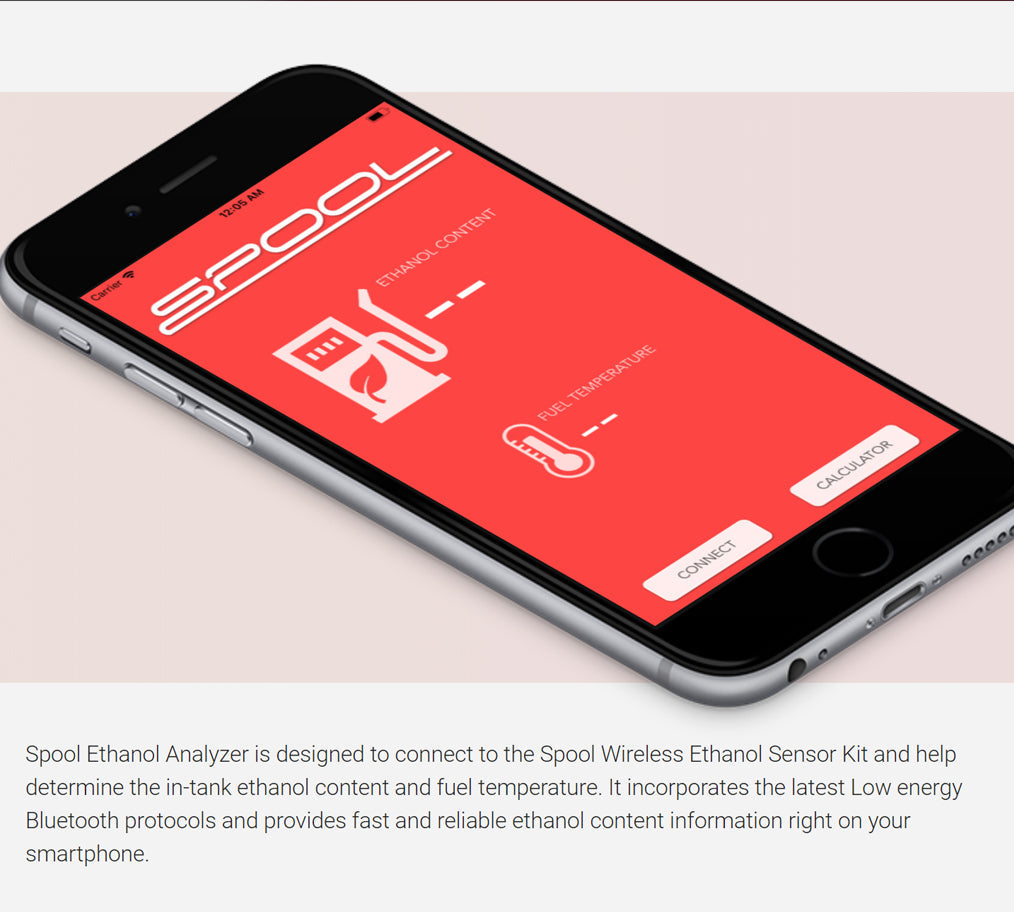

The Spool ECA kit provides a digital readout of ethanol content and fuel temperature, accessible via a mobile app. Leveraging BLE 4.0 technology, it wirelessly connects to your smartphone while remaining compatible with other Bluetooth devices. The kit’s fuel lines are black nylon-coated, braided steel with a PTFE core, ensuring full E85 compatibility.

Are Tune Changes Required?

Yes, the FX-350 requires calibration adjustments to prevent damage. We provide calibration details for your tuner and can recommend experienced tuners familiar with this upgrade. Custom tuning is crucial to fully optimize the FX-350 for your vehicle’s specific setup and conditions.

Low-Pressure Fuel Pump Upgrade

To protect your high-pressure pump and injectors, ensuring proper low-pressure fueling is critical. Insufficient low-pressure fueling can damage the pump and void warranties. Make sure your fuel system upgrades include low-pressure pump improvements when necessary.

We recommend the torquebyte controller to increase your factory low pressure pump's output by 60% to make sure the hpfp is always receiving sufficient low side flow. Please visit

Torquebyte EA825 Low pressure Fuel System upgrade

Unlock the true potential of your Audi RS Q8 with the Spool Performance FX-350 upgrade.

Spool Performance FX-350 High-Pressure Fuel Pump Upgrade for Audi RS7 (C8) with EA825 Engine

What is the FX-350?

The FX-350 is an upgraded mechanical high-pressure fuel pump designed to significantly enhance the performance of your Audi RS7 (C8). With a larger bore size than the stock pump, it delivers approximately 90% more fuel flow, making it perfect for tuning and performance upgrades. Fully E85 compatible and plug-and-play, the FX-350 requires no cutting or splicing for installation. This added fuel flow allows you to run higher ethanol concentrations and fuel larger turbos, providing the flexibility needed for serious performance enhancements. Additionally, the FX-350 can operate at pressures up to 350 bar, improving injector output and reducing injection times for optimized performance.

The Spool Performance FX-350 sets a new benchmark in fuel system engineering, delivering superior pressure and atomization for those looking to extract the maximum potential from their Audi RS7.

Why Upgrade?

The stock high-pressure fuel pump in your Audi RS7 can become a limiting factor when tuning for higher power. The FX-350 offers 90% more fuel flow, allowing you to safely boost horsepower, run larger turbos, and utilize higher ethanol blends. This upgrade is essential for performance enthusiasts aiming to unlock the full potential of their RS7.

Enhanced Pressure

The FX-350 is engineered to deliver fuel at an impressive 35Mpa, a substantial improvement over the FX-200’s 25Mpa. Utilizing the principle Q=PxA (flow rate = pressure x nozzle area), the FX-350 increases fuel flow by 40%, ensuring your Audi RS7 gets the fuel it needs for optimal combustion, even in extreme performance conditions.

What’s Included in the Kit?

• 2 x FX-350 upgraded high-pressure fuel pumps
• 1 x Ethanol Content Monitor kit (optional), with mobile app
• 1 x Bosch spec 10-micron high-flow Fuel Filter
• Upgraded fuel lines and installation hardware
• Spool 10-micron filter unit

The Spool 10-micron filter ensures optimal filtration for your Audi RS7, protecting the high-pressure pump and injectors from contaminants without causing pressure drops in the low-pressure fuel system.

Spool Ethanol Content Monitor

The Spool ECA kit provides a real-time readout of ethanol content and fuel temperature via a mobile app. Using BLE 4.0 technology, it wirelessly connects to your smartphone while remaining compatible with other Bluetooth devices. The kit’s fuel lines are black nylon-coated, braided steel with a PTFE core, ensuring full E85 compatibility.

Are Tune Changes Required?

Yes, the FX-350 requires calibration adjustments to prevent damage. Calibration details are provided for your tuner, and we can recommend experienced tuners familiar with the FX-350 upgrade. Custom tuning is essential to fully optimize the FX-350 for your RS7’s specific setup and driving conditions.

Low-Pressure Fuel Pump Upgrade

To protect your high-pressure pump and injectors, ensuring proper low-pressure fueling is critical. Insufficient low-pressure fueling can damage the pump and void warranties. Make sure your fuel system upgrades include low-pressure pump improvements when necessary.

We recommend the torquebyte controller to increase your factory low pressure pump's output by 60% to make sure the hpfp is always receiving sufficient low side flow. Please visit

Torquebyte EA825 Low pressure Fuel System upgrade

Unlock the full potential of your Audi RS7 with the Spool Performance FX-350 high-pressure fuel pump upgrade.

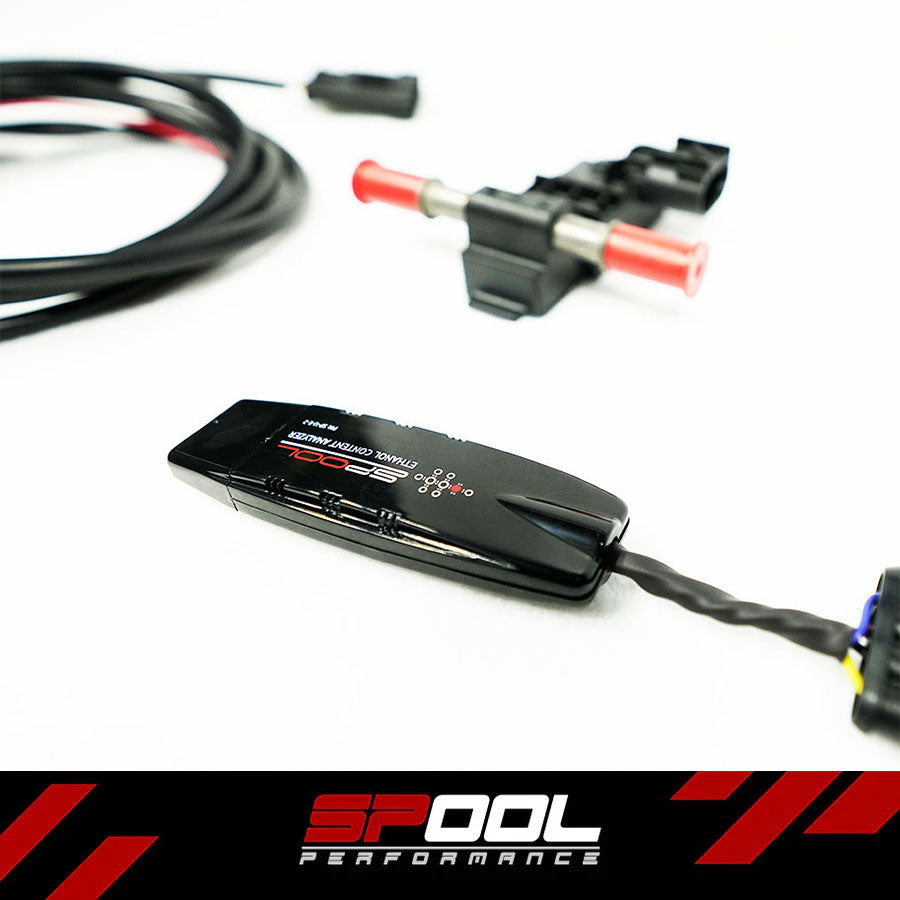

SPOOL Audi C8 RS6 Avant EA825 E85 Ethanol Analyzer Kit

Take your Audi C8 RS6 Avant to the next level with the Spool Performance Ethanol Analyzer Kit. Built for enthusiasts who want power, safety, and zero guesswork, this kit gives you fast, accurate ethanol readings so you always know exactly what’s in your tank—whether it’s pump gas, a mix, or full E85.

Spool Performance designed this kit to be as clean and simple as possible. It fits the C8 RS6 perfectly, installs with minimal hassle, and uses proven, high-quality components that are fully ethanol-safe. The result? Reliable data, better performance, and total peace of mind.

Key Highlights

• Made for the C8 RS6 – No universal shortcuts. A clean, proper fit for your Audi.

• Instant Ethanol Readings – Know your E-content at all times for safe, consistent performance.

• Premium Spool Components – Durable, accurate, and built to handle high-power setups.

• Easy Install – Plug-and-play style harnesses and tidy routing.

• Tuner-Friendly – Works seamlessly with flex-fuel tunes and digital displays.

If you’re running E85 or planning to go flex-fuel, this is one of the smartest upgrades you can make. More power, more safety, and full confidence—exactly what you expect from Spool Performance.

• Over 60% increase in low-pressure fuel pump flow rate
• Replaces the Factory Fuel Pump Control Module J538
• Recommended for Stage 3 and Stage 4 setups making 800HP - 1,200HP
• Retains the OEM LPFP pump and basket
• Supplied Plug-n-Play wiring adapters with OEM VAG connectors integrate seamlessly with the vehicle's factory electrical systems - No need to cut and splice any of the factory wiring
• Integrated LPFP Voltage Boosting up to 24Vdc
• Plug-n-Play CANBus integration provides access to RPM, Throttle, Load and Torque parameters
• Interfaces directly with the factory ECU or aftermarket Engine Management Systems
• Eliminates diagnostic trouble codes (DTCs)
• Fully programmable/configurable pump duty and voltage booster control with our free and easy-to-use TorqBLPM Windows application
• TorqBLPM software provides live-viewing, data-logging and playback of ECU-commanded vs. Pump-actual duty helping to diagnose ECU tuning or mechanical fuel system issues
• PM5 is the first and only LPFP driver solution on the market that enables the ECU to remain in complete closed-loop control of the requested fuel system pressure
• Works with any ECU tuning package, or even without any ECU tuning at all. With the PM5 you are not limiting your options by using a fueling solution that forces you to use only one vendor's ECU tuning suite.
• Reliable, easy to install and operate.
• Overdesigned using the highest-quality automotive and industrial grade electronic components that far exceed the operating ratings and life cycle of the OEM electronic modules
• Fully manufactured and tested in Canada

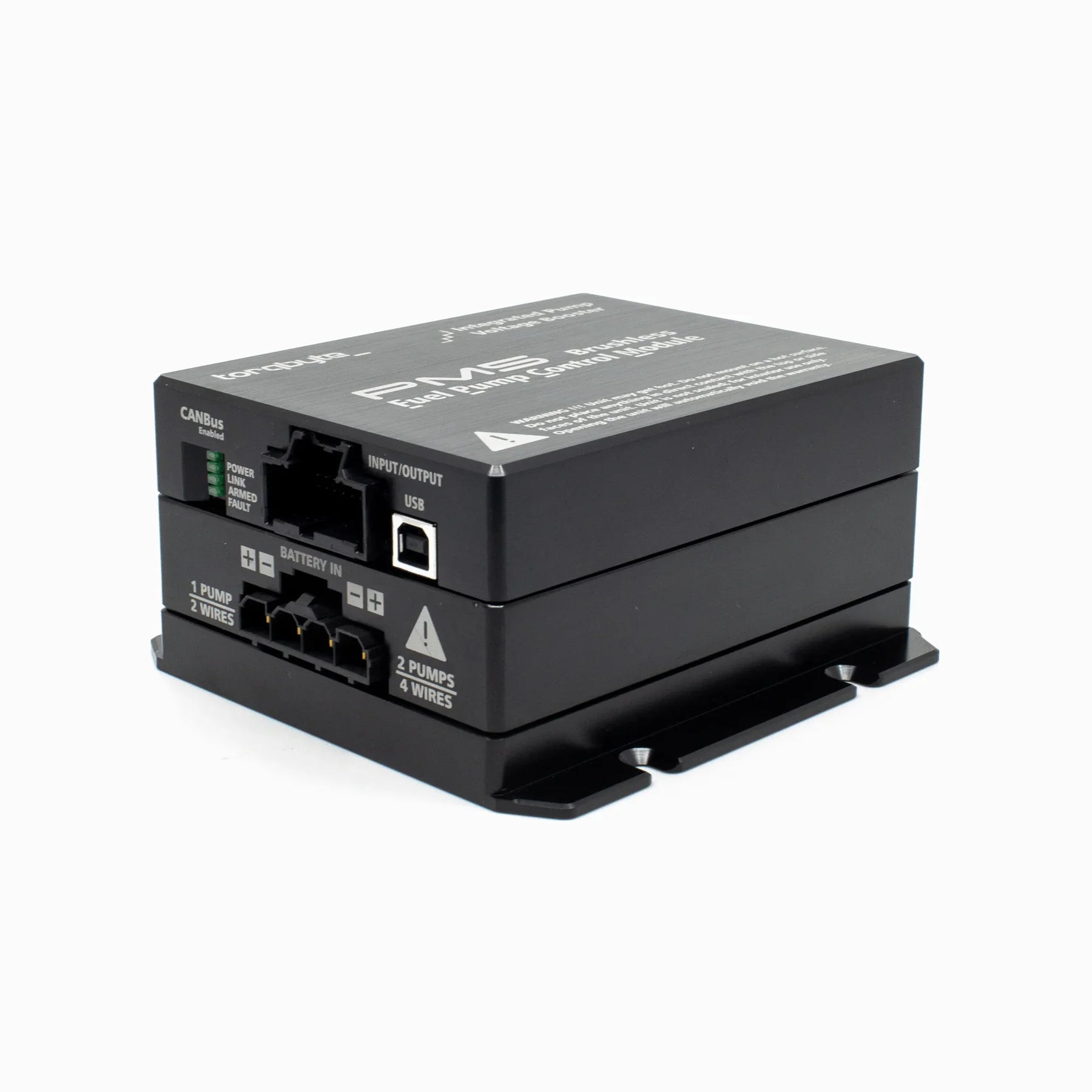

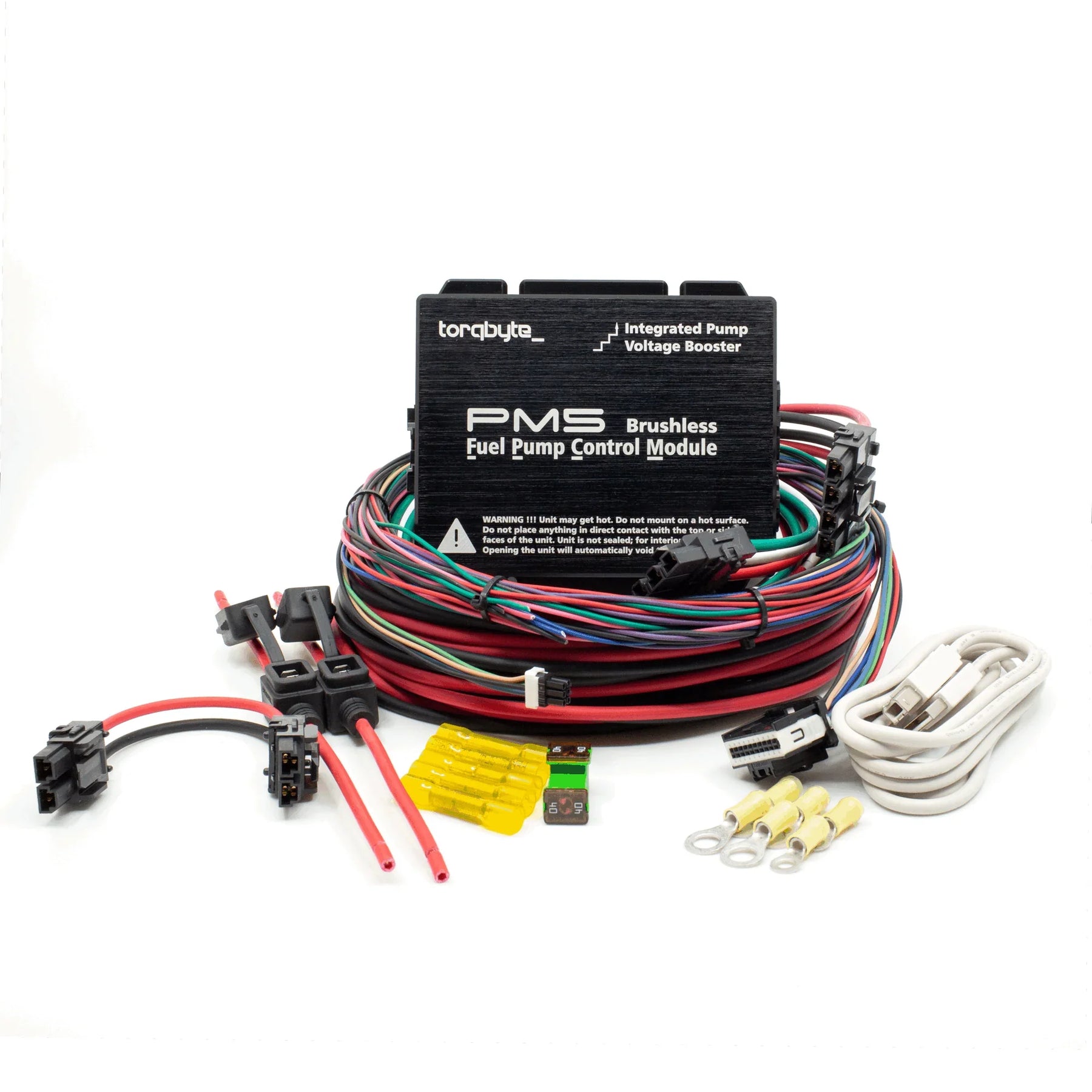

Torqbyte PM5 is an advanced microprocessor-controlled brushless low-pressure fuel pump (LPFP) controller. It was designed to be a complete Plug-n-Play, drop-in replacement for the OEM fuel pump PWM control module. PM5 is used to provide increased fueling in returnless direct injection fuel systems on upgraded EA825 setups.

PM5 is capable of continuously supplying the OEM fuel pump with up to 40A of current.

While the PM5 increases the capacity of the OEM fuel pump, its electronics interface directly with the ECU ensuring no diagnostics trouble codes are generated. Torqbyte's innovative technical approach built into the PM5 allows the ECU to maintain full control of the aftermarket LPFP operation and maintain the closed-loop fuel pressure control mechanism that the vehicle was originally designed with. This crucial feature is something that _none_ of the other LPFP "upgrades" currently on the market are able to offer.

Because it interfaces directly with the ECU, PM5 is able to live-stream the ECU commanded duty as well as pump actual duty, over USB, to a laptop running the free Torqbyte TorqBLPM Windows software. These logs can be very useful in identifying tuning issues or diagnosing mechanical fuel system problems.

Plug-n-Play Wiring

All EA825 kits are provided with custom-made PnP wire adapters that provide seamless integration with factory wiring without the need to cut or splice anything. This provides cleaner and more reliable electrical connections and also means that a vehicle can be returned to factory configuration, if required.

LPFP Voltage Boosting

The PM5 with Integrated Voltage Boosting includes an advanced quad polyphase synchronous voltage booster that raises the incoming battery or alternator voltage and  supplies the pump with a variable voltage of 15Vdc to 24Vdc. The output voltage level is user-adjustable and is maintained even when the input voltage (from the battery or alternator) dips down to as low as 8Vdc.

Voltage-booster voltage can be kept static  at a fixed value or can be configured to track engine throttle position readings obtained over CANBus.

Flow Test Results

• PM5 with Integrated Voltage Boosting

TorqBLPM Windows Software

PM5's operation can be configured or reconfigured using the provided USB Cable together with free TorqBLPM Windows software.

TorqBLPM is intuitive and easy to use and allows the user to configure all aspects of the PM5 and its voltage booster. The user can fine tune the behavior of the pump in response to an input command (which can be derived from an ECU's PWM signal, a MAP sensor (or another 0-5V signal source), or over CANBus). Additionally, the behavior of the voltage booster can also be configure to be either static, switched between 2 preset levels or adjusted progressively based on a MAP sensor (or another 0-5Vdc signal source).

Multiple configurations can be saved and shared making remote tuning very easy.

In addition to configuring the PM5, feature-rich TorqBLPM software also includes Live-Viewing, Data-Logging and Log Visualization functions.

Power, Ground and Pump Connections

The voltage-boosted PM5 requires a dual fused 40A connection to the battery +ve terminal and a dual solid connection to the nearest vehicle chassis ground.

As with the standard PM5, the pump wires should be kept as short as possible keeping in mind that the PM5 is not sealed and MUST be mounted inside the vehicle.

The torqbyte_ Advantage

PM5s are 100% manufactured in Canada and the United States. We use authentic components sourced from manufacturer-authorized distributors and our only offshore import are wire adapters and connectors from OEM suppliers in Germany. We assemble everything using only manufacturer-recommended tooling, procedures and automotive-grade materials.

PM5 is housed in a rugged, thermally-conductive, CNC machined aluminum enclosure that is hard anodized for maximum durability.

Torqbyte PM5 wiring only use US-Spec SAE J1127 SXL and TXL or European-Spec FLRY automotive wire with annealed stranded copper conductors and premium-grade abrasion, chemical and moisture resistant, high temperature Crosslinked Polyethylene insulation.

All pump power adapters are supplied with the thickest possible wire gauge for the given connector family ensuring minimum line loses and maximum power transfer to the LPFP.

• Unit Mounting and Thermal Considerations

The unit is not sealed. It must be installed on the interior of the vehicle and not be exposed to any condensing moisture or debris.

The unit may get warm. I should not be covered with thermally-insulating material (such as carpeting or seat cushion foam).

Ideally, the Voltage-Boosted PM5 should mounted directly to a large metal panel/surface in order to aid its heat dissipation.

• Dual Pump Control

If additional fueling is required, a second PM5 (either standard or with integrated Voltage Boosting) can be added and configured as a "slave" which is controlled from the primary "master" controller. The configuration parameters for both controllers is entered only into the master controller, so that both pumps respond to the same ECU signal. Operation of the two pumps can be configured completely independently from one another, but since the ECU must stay in full control of both pumps at all times, only the master controller receives the control signals from the ECU and relays commands to the leave controller in accordance with the slave table loaded into the master controller's configuration. If the slave controller has an integrated voltage booster, the master controller will ensure the secondary pump's boosted voltage rises and falls in accordance with its own.

A special harness is required to connect the two controllers together,

Note: Torquebyte controllers are ordered through and fulfilled by torquebyte_ and any post sale service will be administered by them directly.

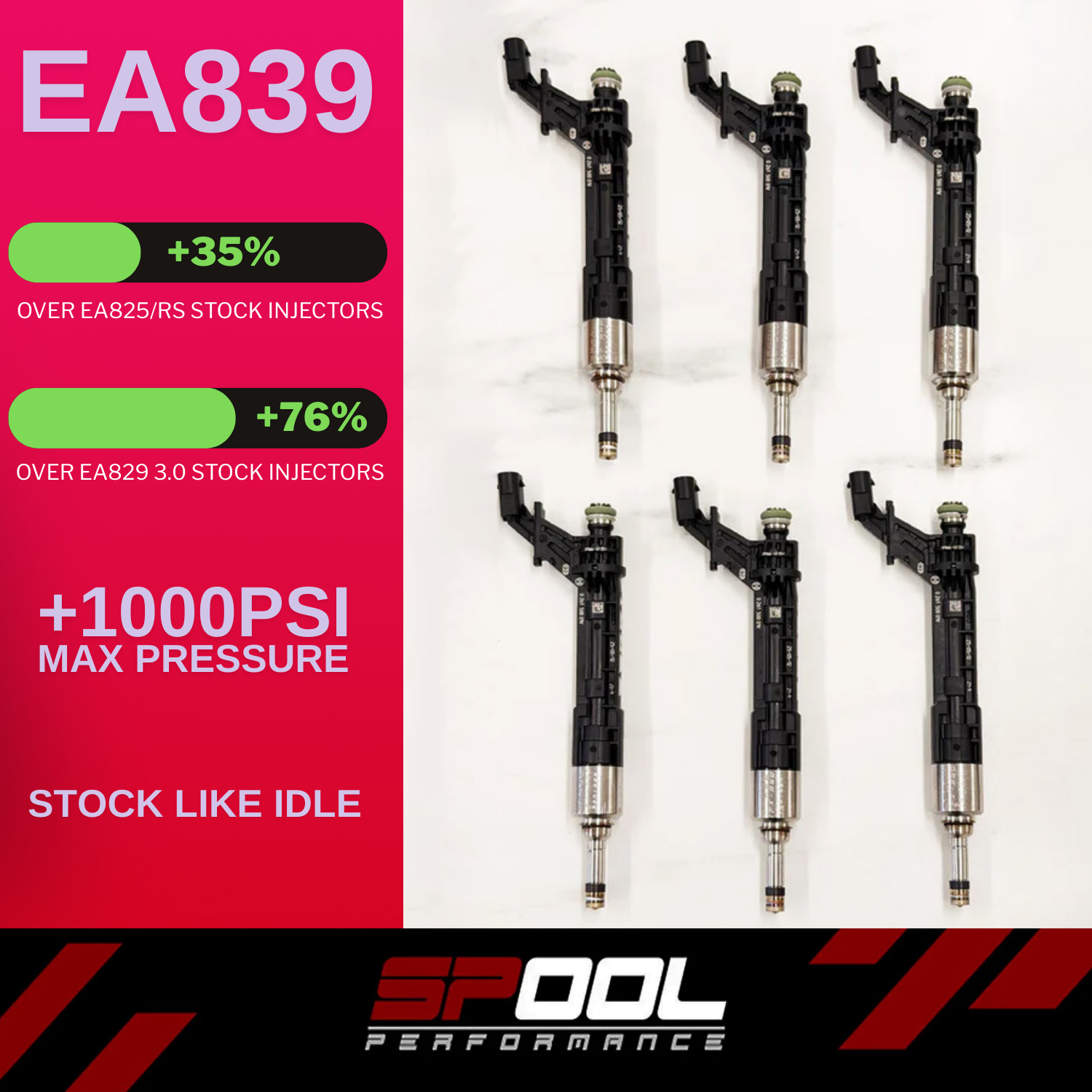

Spool Performance IFX-EA150 Upgraded DI Injectors for EA839

Unlock the full fueling potential of your EA839 platform with the Spool Performance IFX-EA150 Upgraded Direct Injectors—precision-engineered to support serious power with OEM-like refinement. Delivering 35% more flow and an additional 1,000 psi of maximum rail pressure capability, the IFX-EA150 injectors provide the fueling headroom required for high-boost, high-airflow builds.

    Once boost, airflow, or ethanol content increase, the factory EA839 injectors quickly become the limiting factor. High-RPM pulse-width extensions, late injection events, and cylinder-to-cylinder imbalance can all show up when the DI system is pushed beyond its design.

The IFX-EA150 injectors eliminate these constraints by offering:

• 35% Increased Flow Capacity
  More mass fuel per event with reduced pulse-width at high RPM.

• +1,000 psi Additional Pressure Capability
  Stronger atomization and improved combustion consistency even under extreme cylinder pressures.

• Shorter Injection Window
  Meets fueling targets earlier in the cycle for cleaner, more complete combustion.

Performance Advantages

• Supports higher boost and more aggressive ignition timing

• Stabilizes fueling at high RPM where stock injectors fall short

• Enables safe power on ethanol blends, including E50–E85, without running the DI system at its limits

• Prevents lean-out, late-cycle injection, and uneven fuel distribution

• Ideal for big turbo and hybrid turbo EA839 builds

Optimized for E85 and High Ethanol Content

Ethanol requires ~30% more volume than pump gas to achieve the same energy output. This places enormous strain on the stock DI injectors and HPFP. The IFX-EA150 injectors provide the additional flow and pressure needed to run E85 or high-ethanol blends confidently and safely.

With the added flow capacity and increased pressure ceiling, the injectors maintain:

• Consistent lambda under high load

• Safe injector pulse-width at redline

• Stable spray pattern and atomization even with ethanol’s higher volume demand

Tuner-Friendly Calibration Support

To ensure seamless integration, Spool Performance provides full calibration assistance to your tuner. We work directly with tuners worldwide, ensuring your setup performs exactly as engineered.

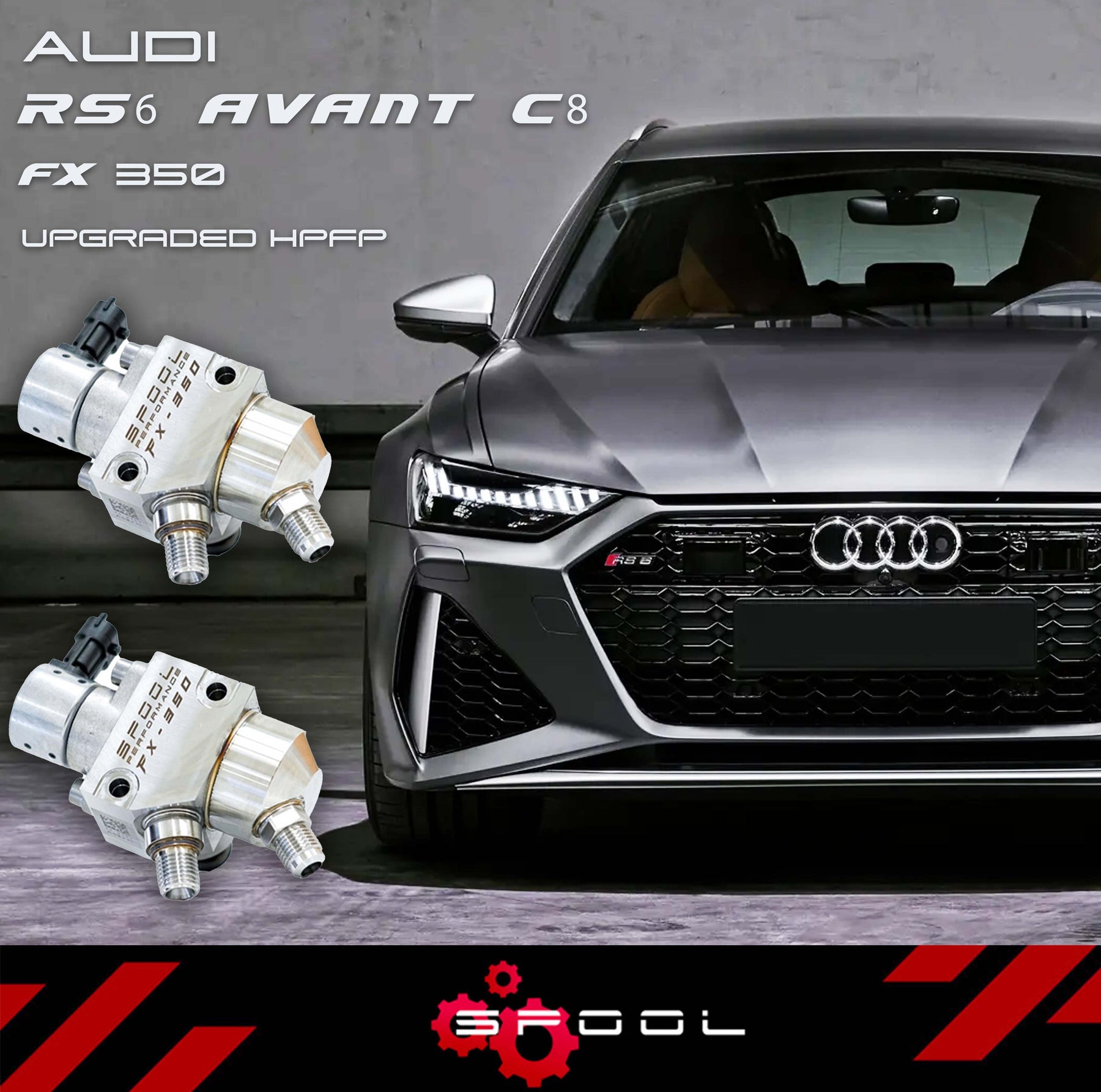

Spool Performance FX-350 High-Pressure Fuel Pump Upgrade for Audi RS6 Avant (C8) with EA825 Engine

What is the FX-350?

The FX-350 is an upgraded mechanical high-pressure fuel pump designed to significantly boost the performance of your Audi RS6 Avant (C8). With a larger bore size than the stock pump, the FX-350 provides approximately 90% more fuel flow, making it ideal for performance tuning. The pump is fully E85 compatible and features a plug-and-play design that requires no cutting or splicing. The additional fuel flow supports higher ethanol concentrations and can accommodate larger turbo setups, making it perfect for enthusiasts looking to push their RS6 Avant further. The FX-350 is also capable of running at pressures up to 350 bar, increasing fuel injector output and reducing injection times for enhanced performance.

The Spool Performance FX-350 sets a new standard in fuel system engineering, offering superior pressure and atomization for drivers aiming to achieve maximum performance from their Audi RS6 Avant.

Why Upgrade?

The stock high-pressure fuel pump in your Audi RS6 Avant can become a bottleneck when tuning for higher power. The FX-350 delivers 90% more fuel flow, enabling you to safely increase horsepower, run larger turbos, and use higher ethanol blends. This upgrade is crucial for serious performance enthusiasts seeking to unlock the full potential of their RS6 Avant.

Enhanced Pressure

The FX-350 is engineered to deliver fuel at an impressive 35Mpa, a substantial improvement over the FX-200’s 25Mpa. By applying the physics principle Q=PxA (flow rate = pressure x nozzle area), the FX-350 increases fuel flow by 40%, ensuring your Audi RS6 Avant receives the necessary fuel for optimal combustion, even under extreme performance conditions.

What’s Included in the Kit?

• 2 x FX-350 upgraded high-pressure fuel pumps
• 1 x Ethanol Content Monitor kit (optional), with mobile app
• 1 x Bosch spec 10-micron high-flow Fuel Filter
• Upgraded fuel lines and installation hardware

Spool 10-micron filter unit

The Spool 10-micron filter ensures top-tier filtration for your Audi RS6, protecting the high-pressure pump and injectors from debris without causing pressure drops in the low-pressure fuel system.

Spool Ethanol Content Monitor

The Spool ECA kit provides real-time data on ethanol content and fuel temperature through a mobile app. With BLE 4.0 technology, it wirelessly connects to your smartphone while remaining compatible with other Bluetooth devices. The kit’s fuel lines are black nylon-coated, braided steel with a PTFE core, ensuring full E85 compatibility.

Are Tune Changes Required?

Yes, the FX-350 requires calibration adjustments to prevent damage. Calibration details are provided for your tuner, and we can recommend experienced tuners familiar with the FX-350 upgrade. Custom tuning is essential to fully optimize the FX-350 for your Audi RS6 Avant’s specific configuration and driving conditions.

Low-Pressure Fuel Pump Upgrade

To protect your high-pressure pump and injectors, ensuring proper low-pressure fueling is critical. Insufficient low-pressure fueling can damage the pump and void warranties. Make sure your fuel system upgrades include low-pressure pump improvements when necessary.

We recommend the torquebyte controller to increase your factory low pressure pump's output by 60% to make sure the hpfp is always receiving sufficient low side flow. Please visit

Torquebyte EA825 Low pressure Fuel System upgrade

Unlock the full potential of your Audi RS6 Avant with the Spool Performance FX-350 high-pressure fuel pump upgrade.

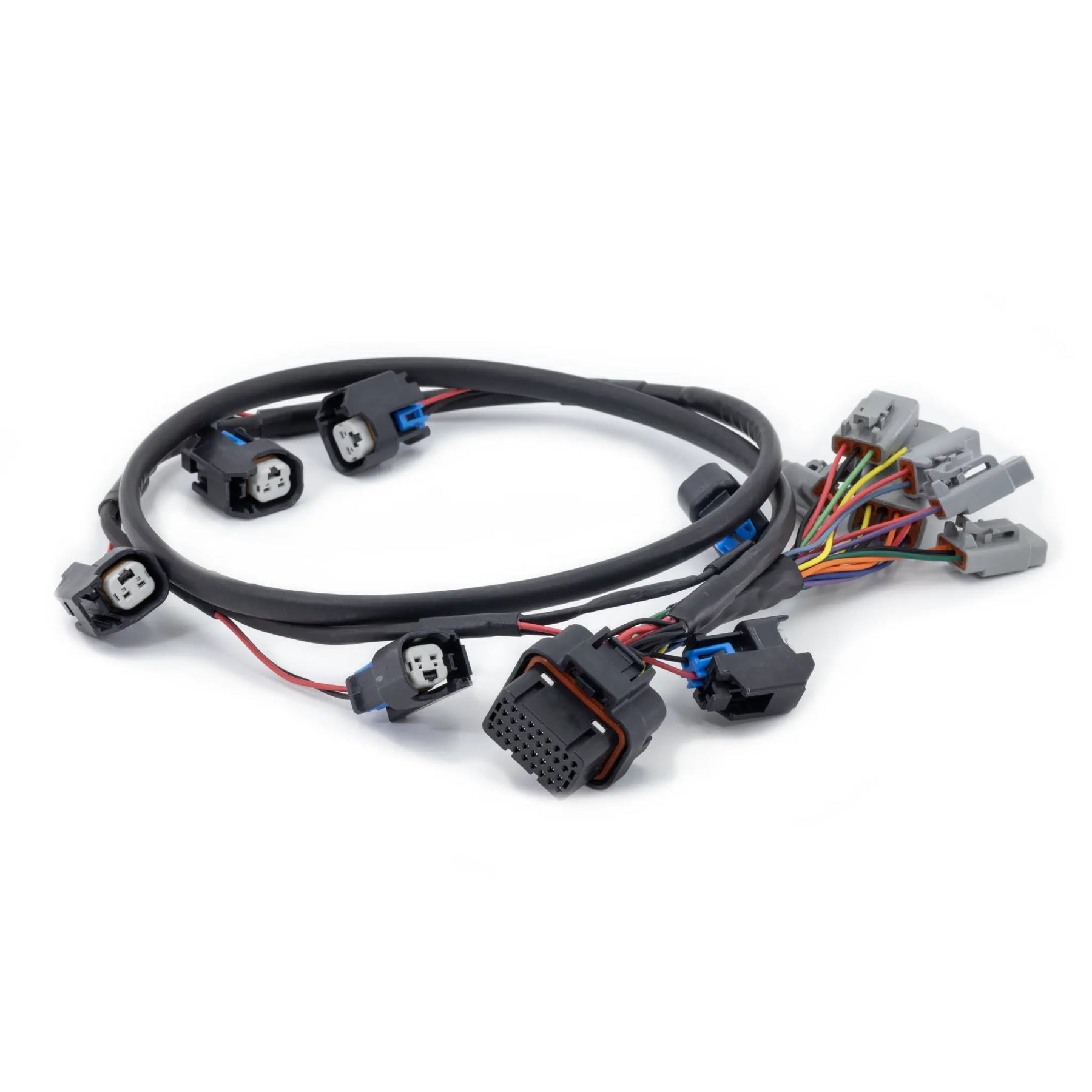

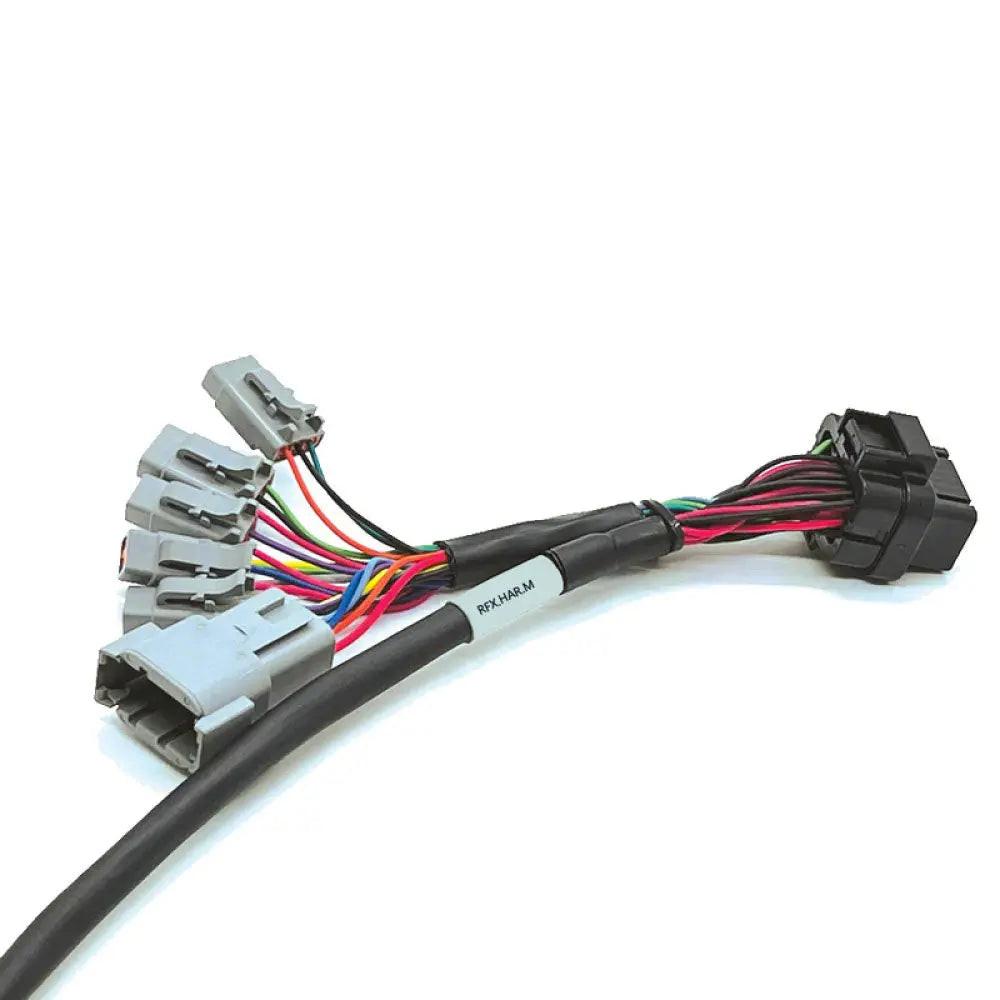

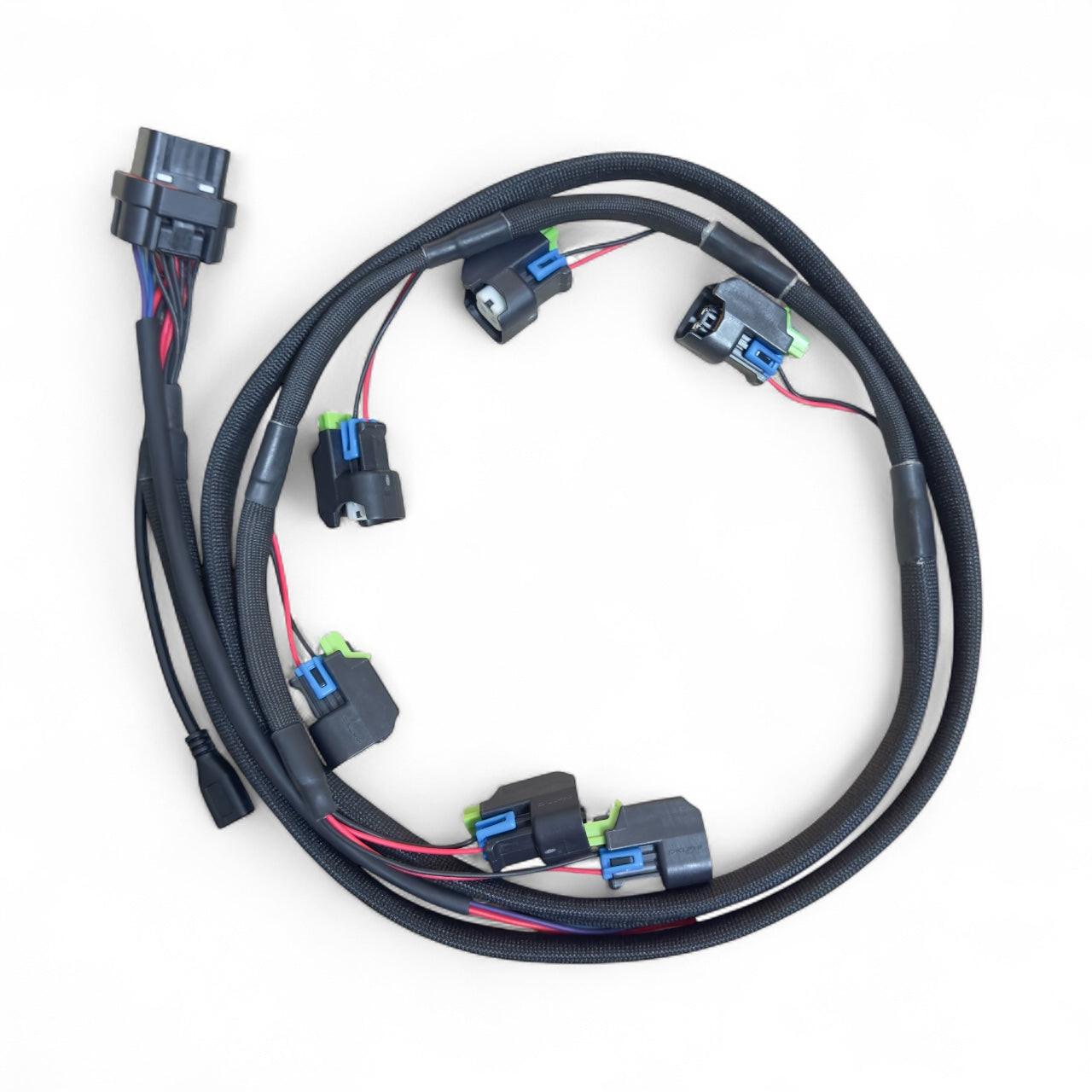

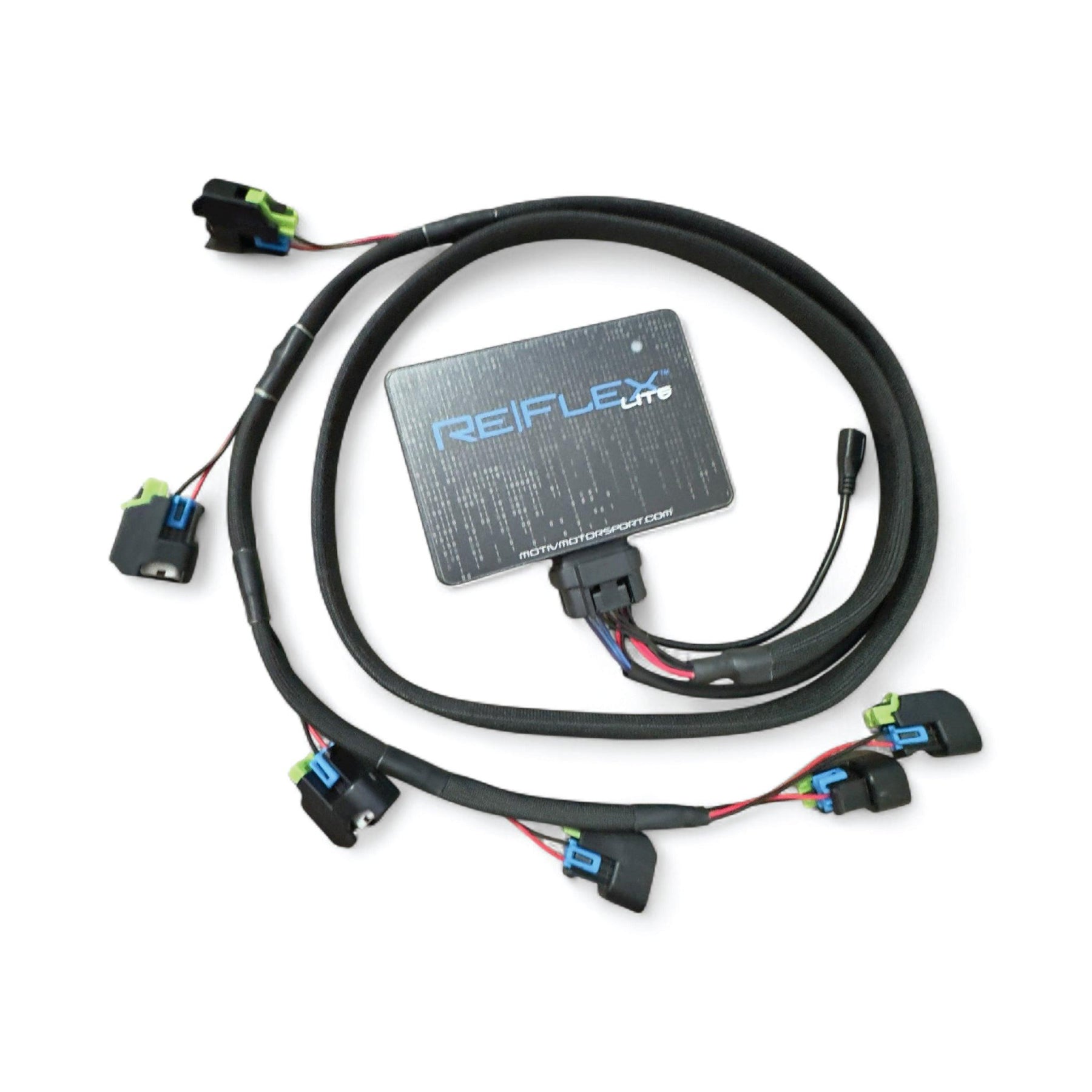

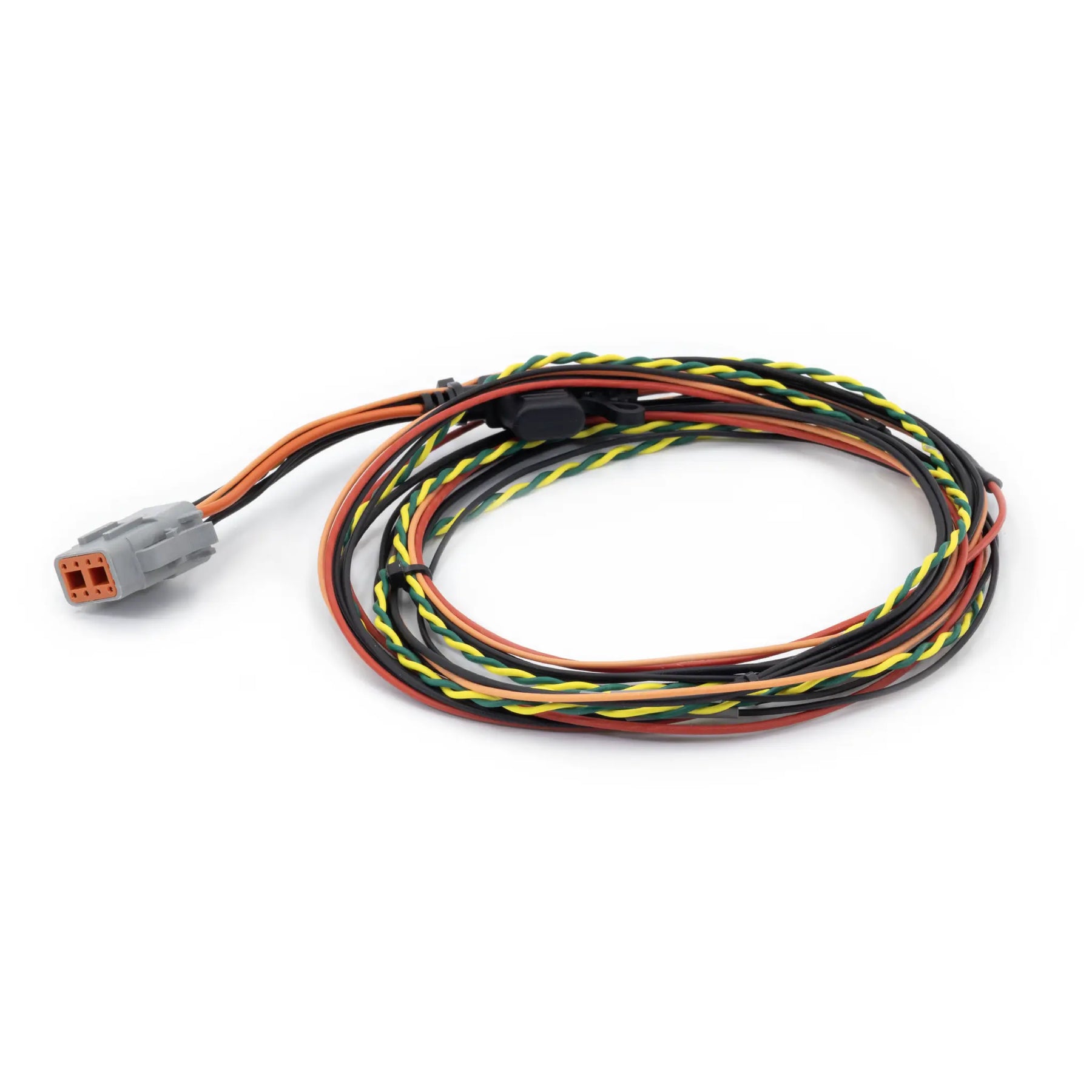

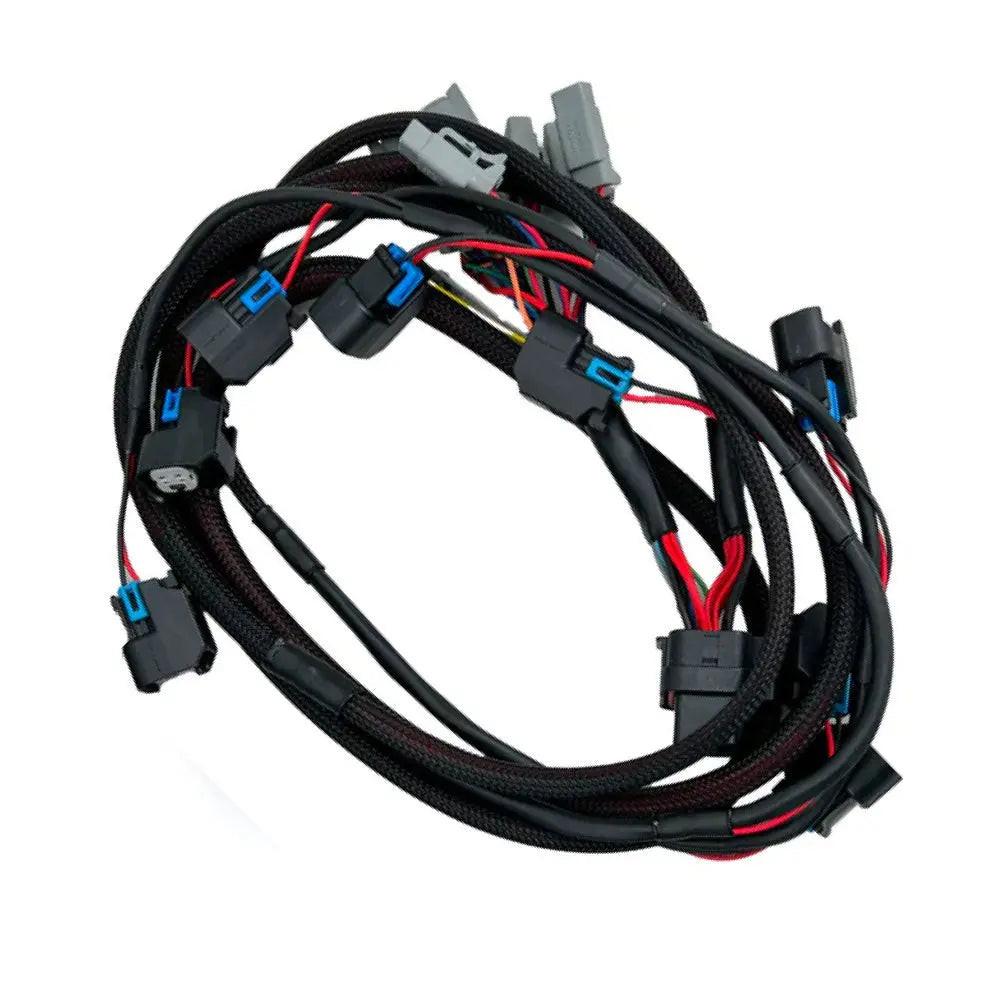

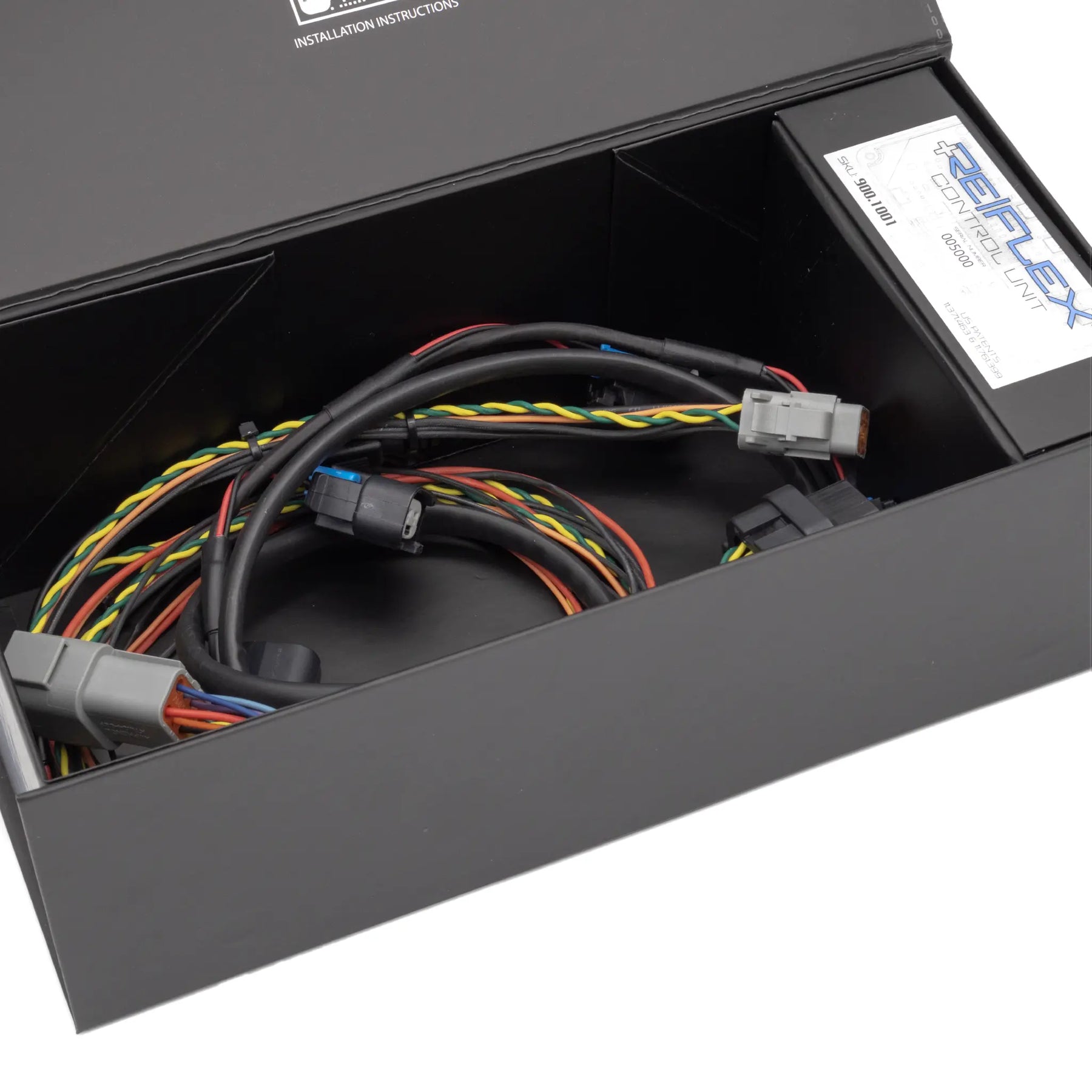

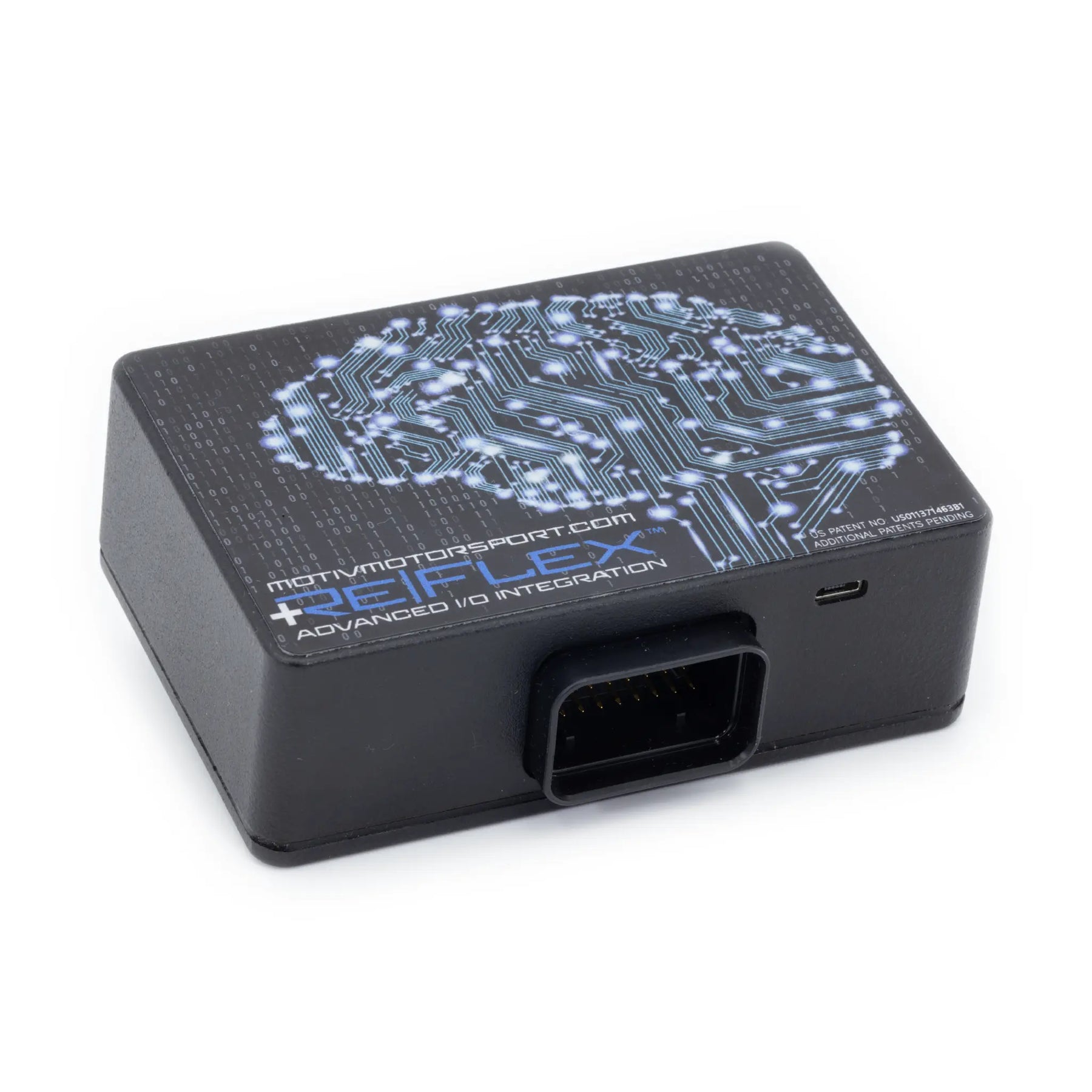

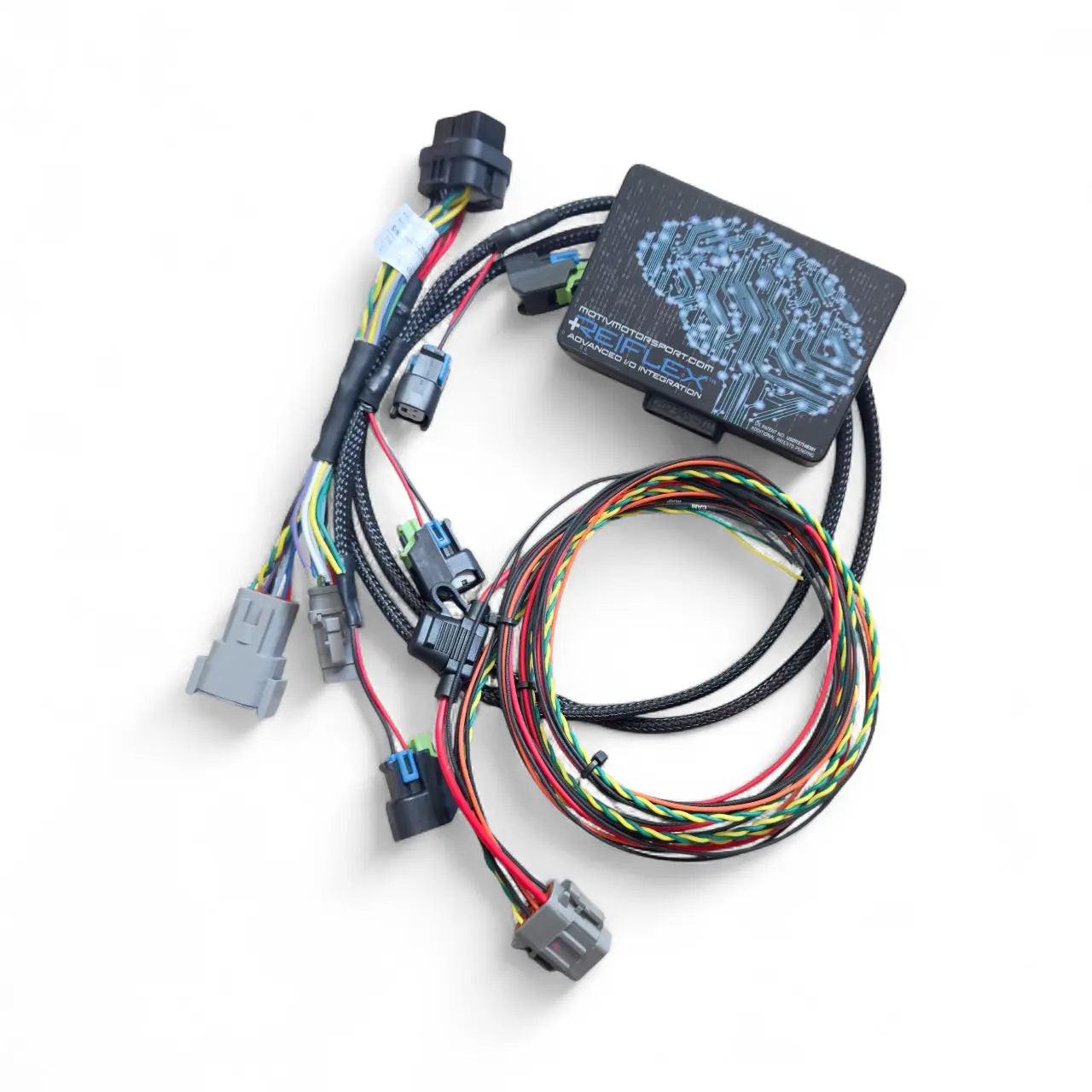

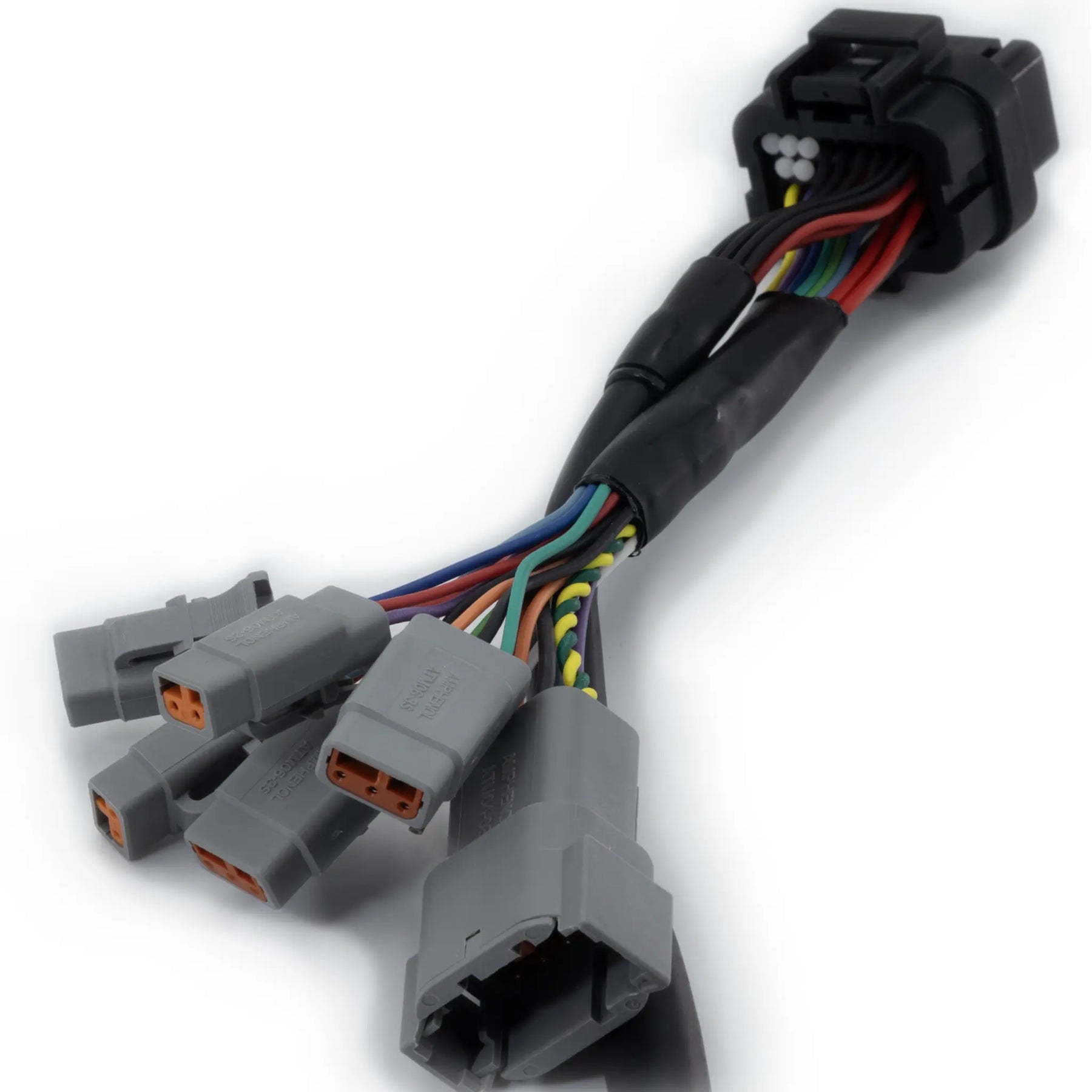

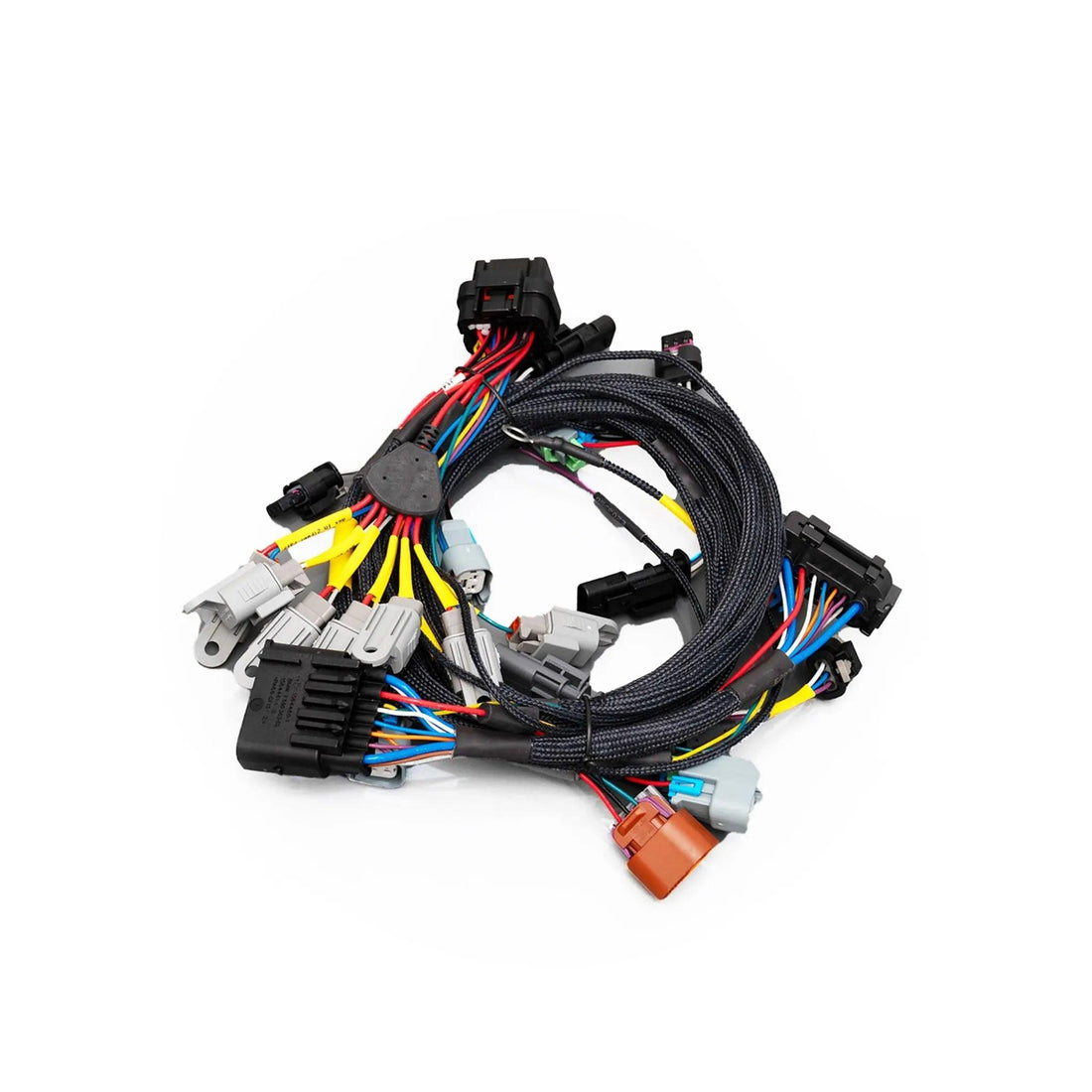

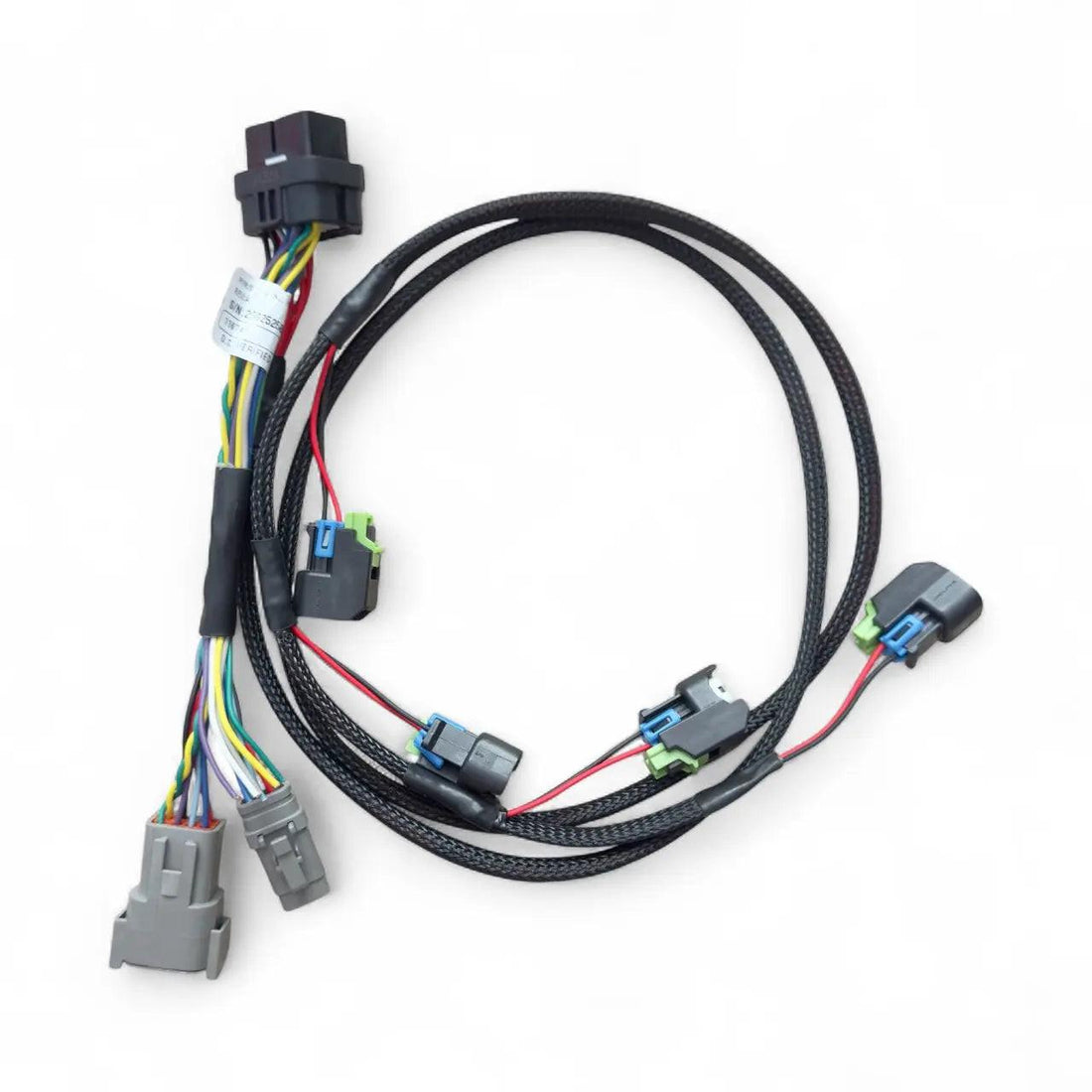

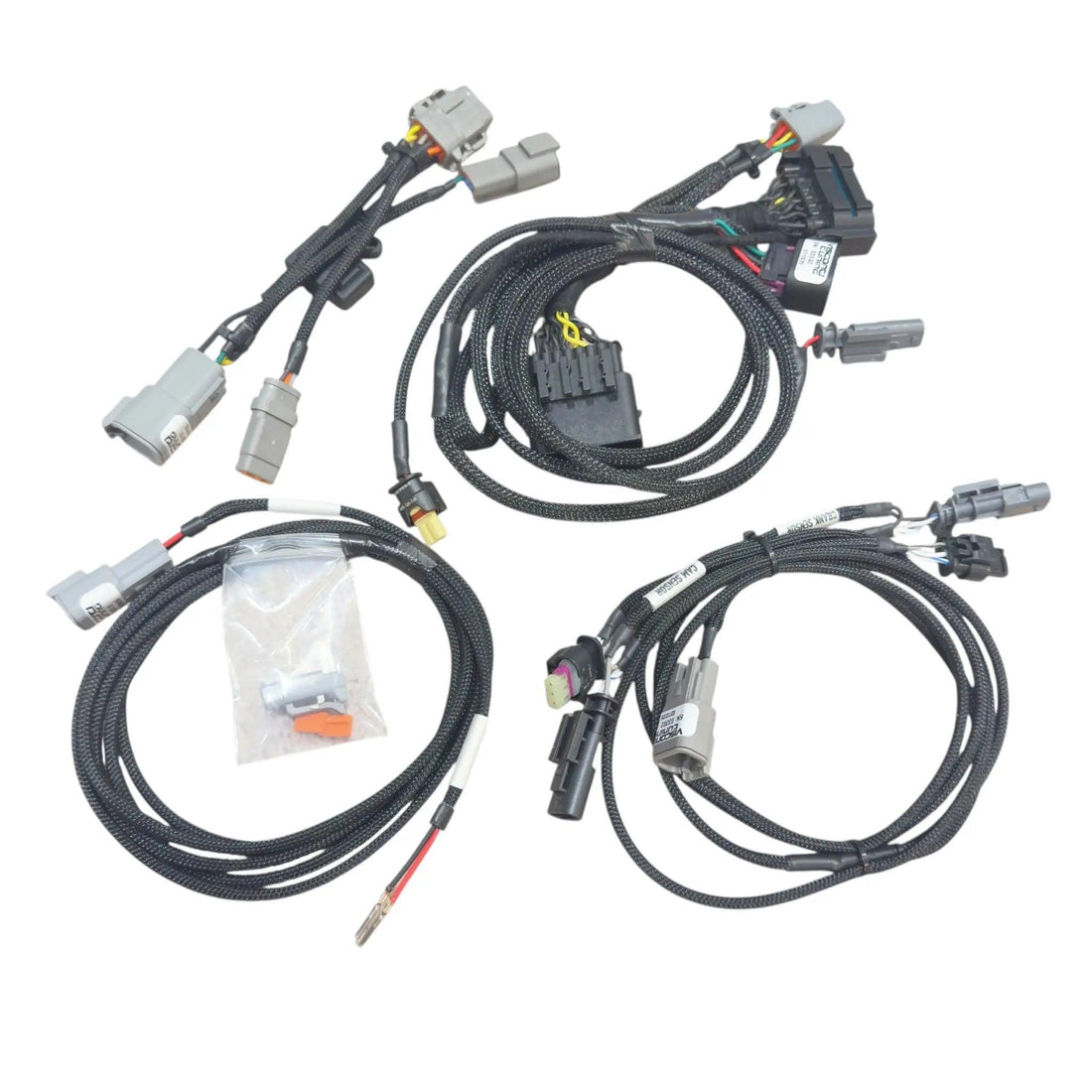

The ReFlex+ complete harness is broken into two portions. The Main Injector Harness and the Installation Harness. The Main Injector Harness consists of the following components:

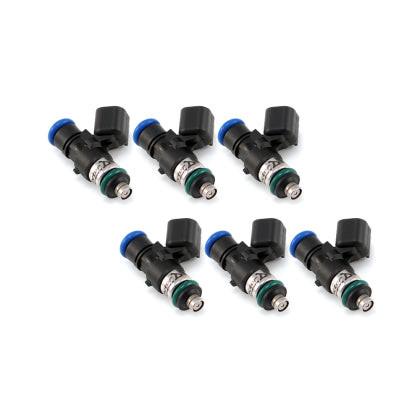

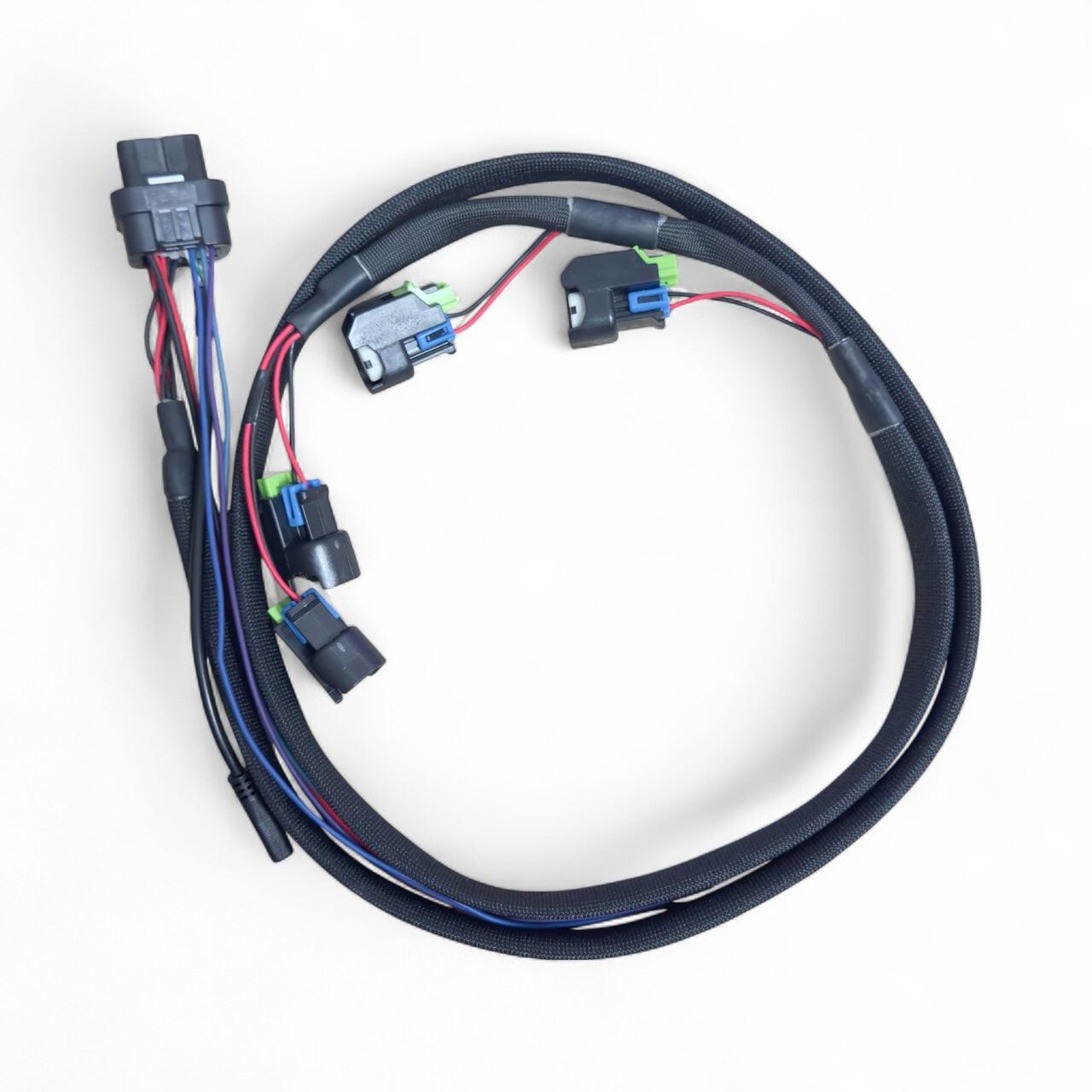

• Port injection harness for Inline-6 engines with EV6 / USCAR injector connectors

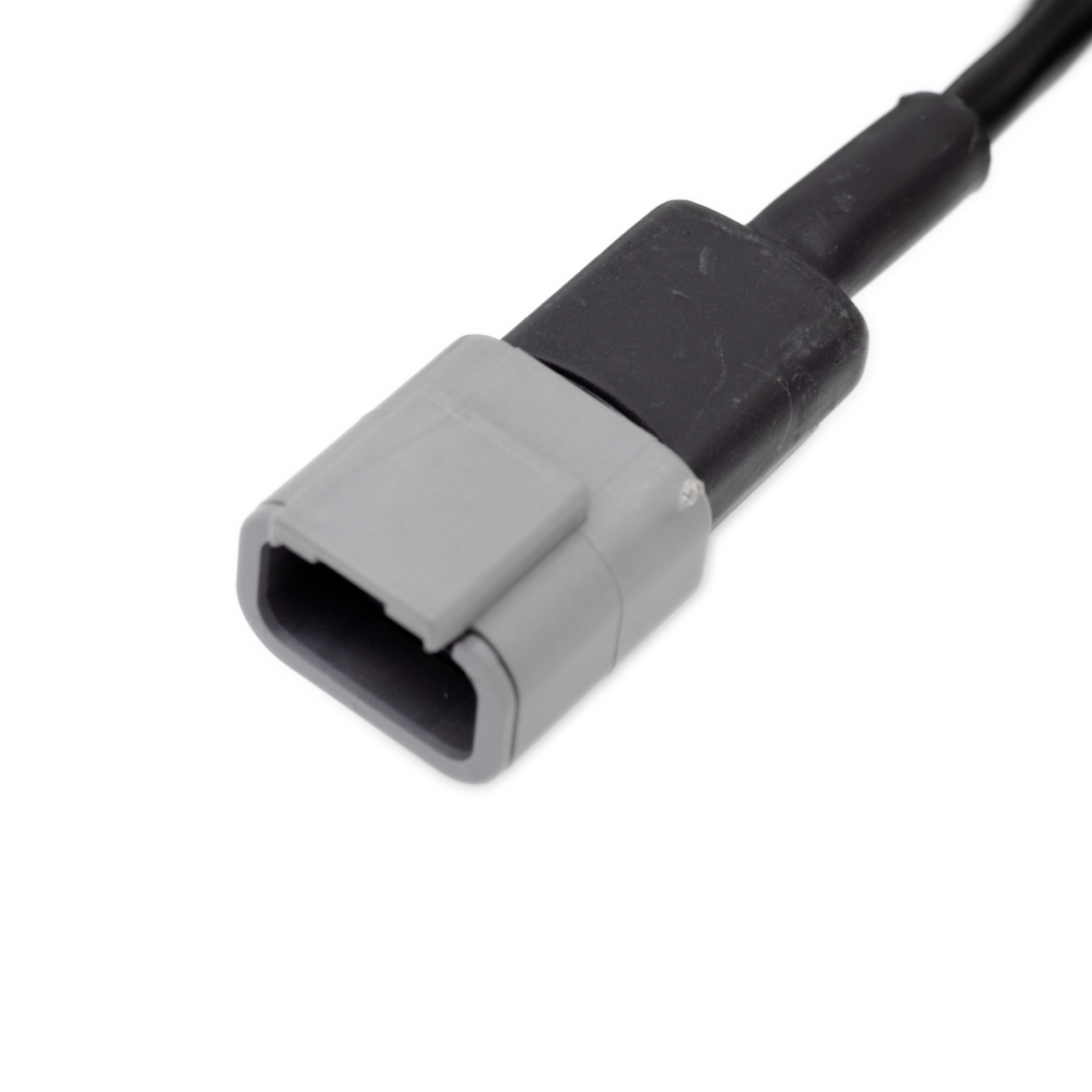

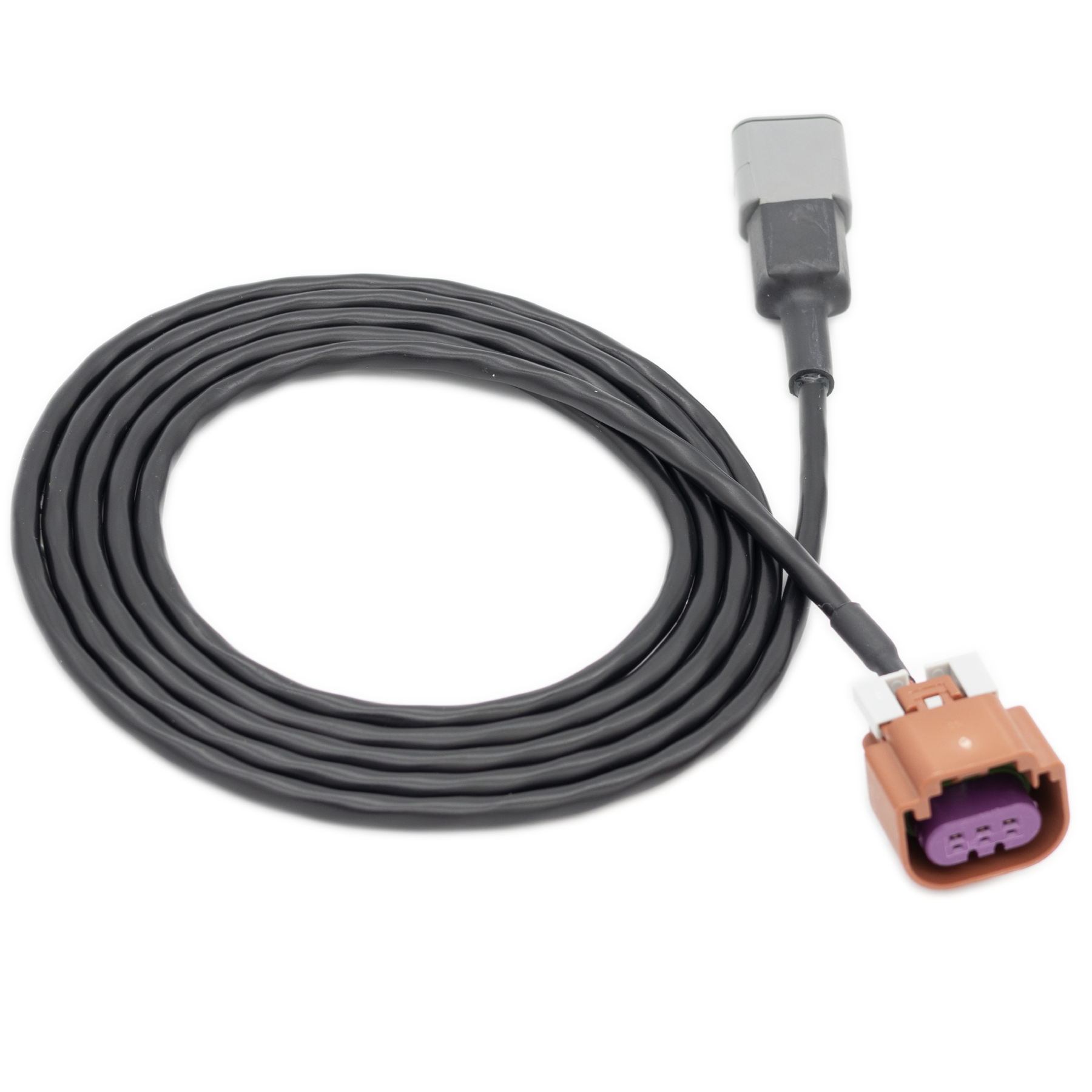

• DTM 3-Pin connector for an ethanol content sensor connection using the ReFlex+ Plug-n-Play Ethanol Sensor Harness

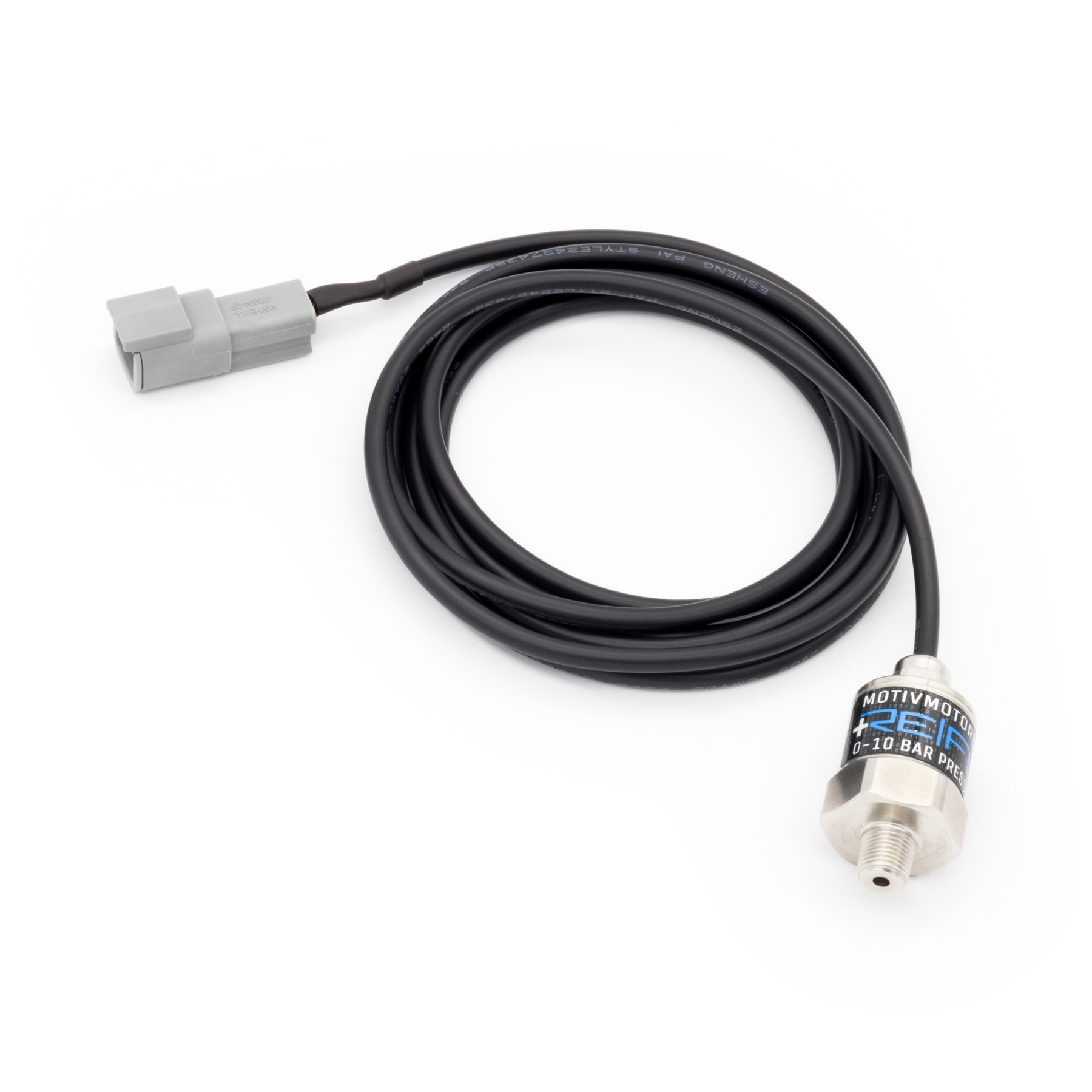

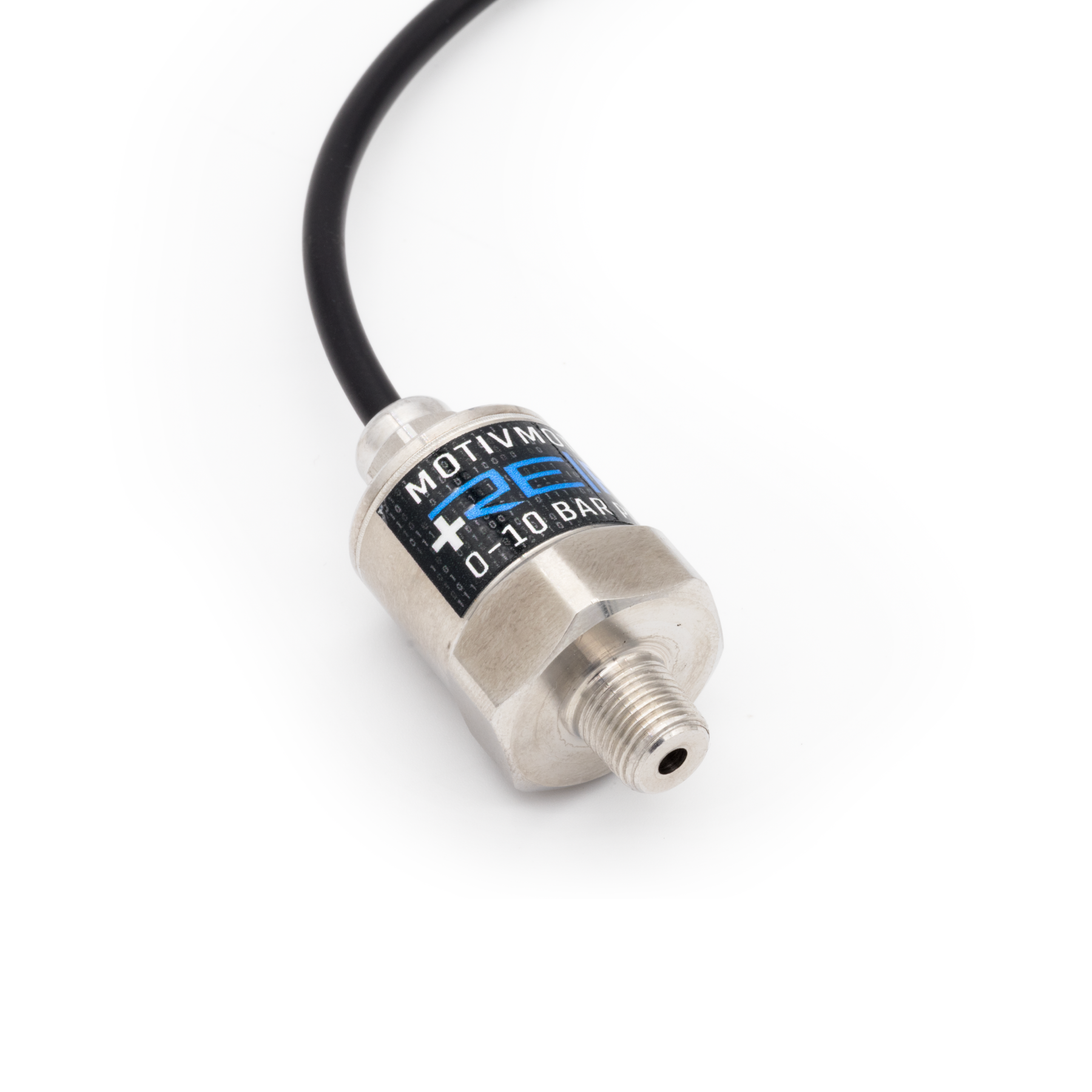

• 2x DTM 2-Pin connectors to connect to external sensors like the ReFlex+ 0-10 Bar Pressure Sensor
  • Fuel Pressure
  • Coolant Pressure
  • Exhaust Back Pressure
  • Oil Pressure
• DTM 3-Pin connector for a 0-5v sensor
• DTM 2-Pin connector for an auxiliary output to supply switched +12v and a low side trigger from the ReFlex+ Control Unit
• 3x unterminated auxiliary output wires which function as low side triggers form the ReFlex+ Control Unit

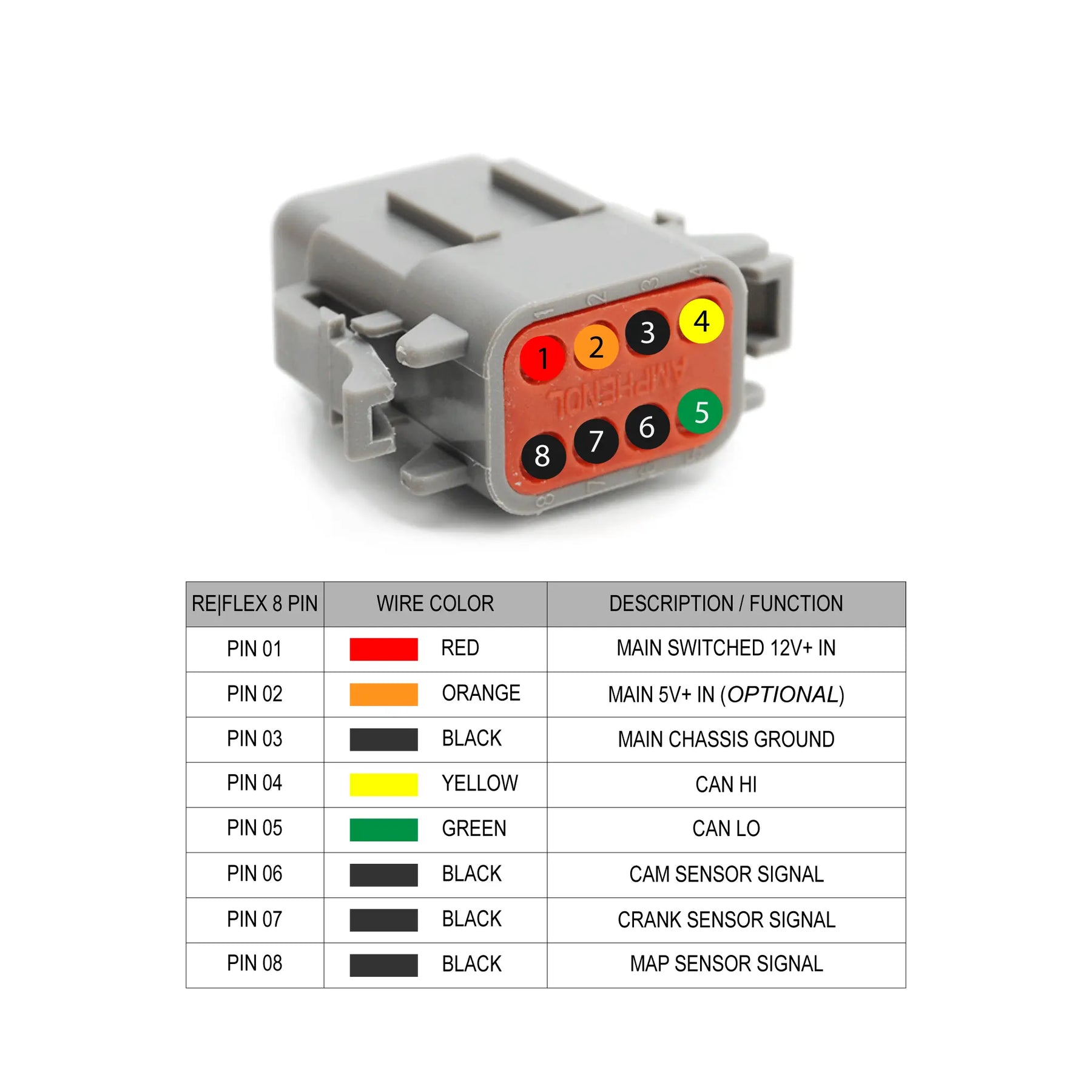

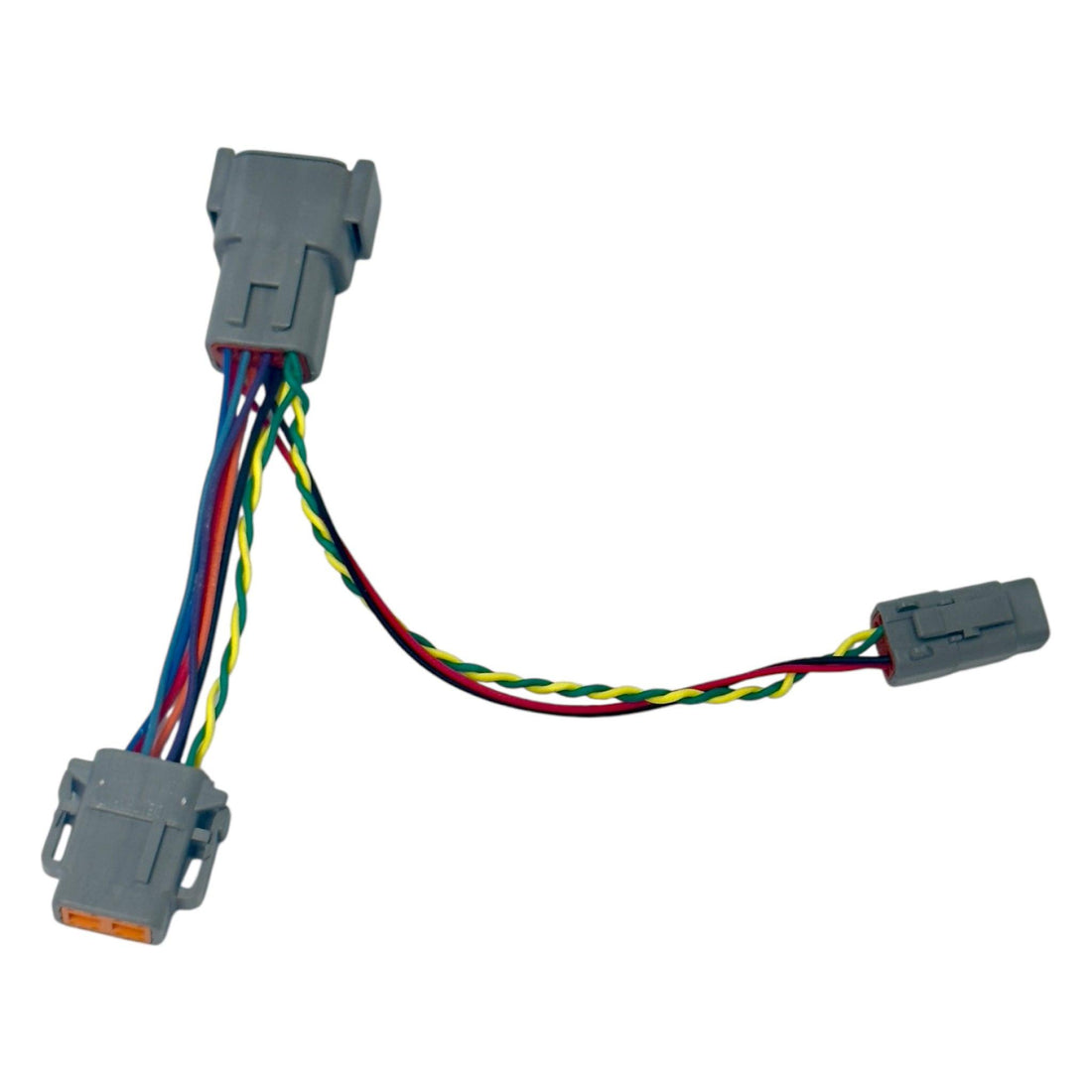

• DTM 8-Pin connector for easy connection to your choice of ReFlex+ Install Harnesses

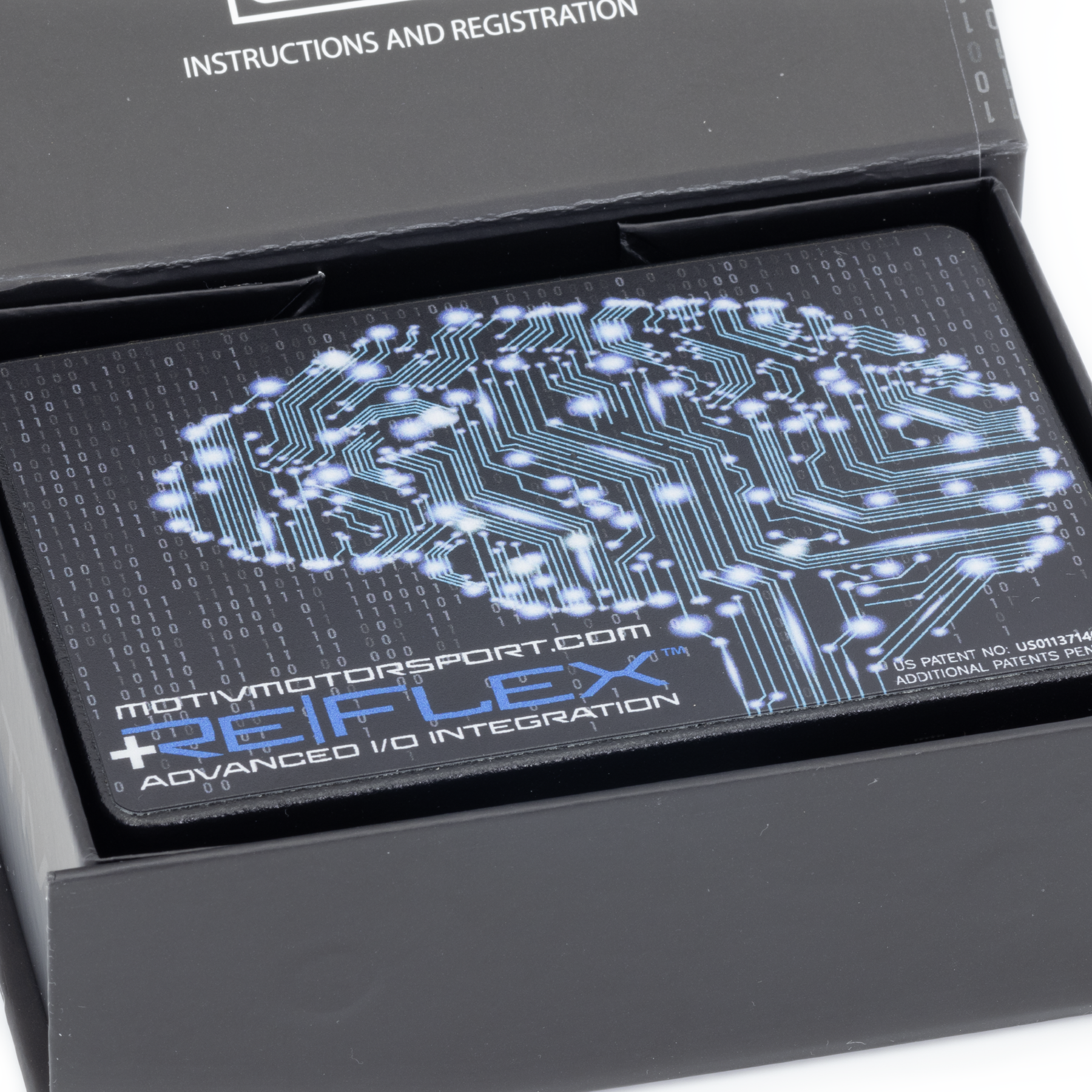

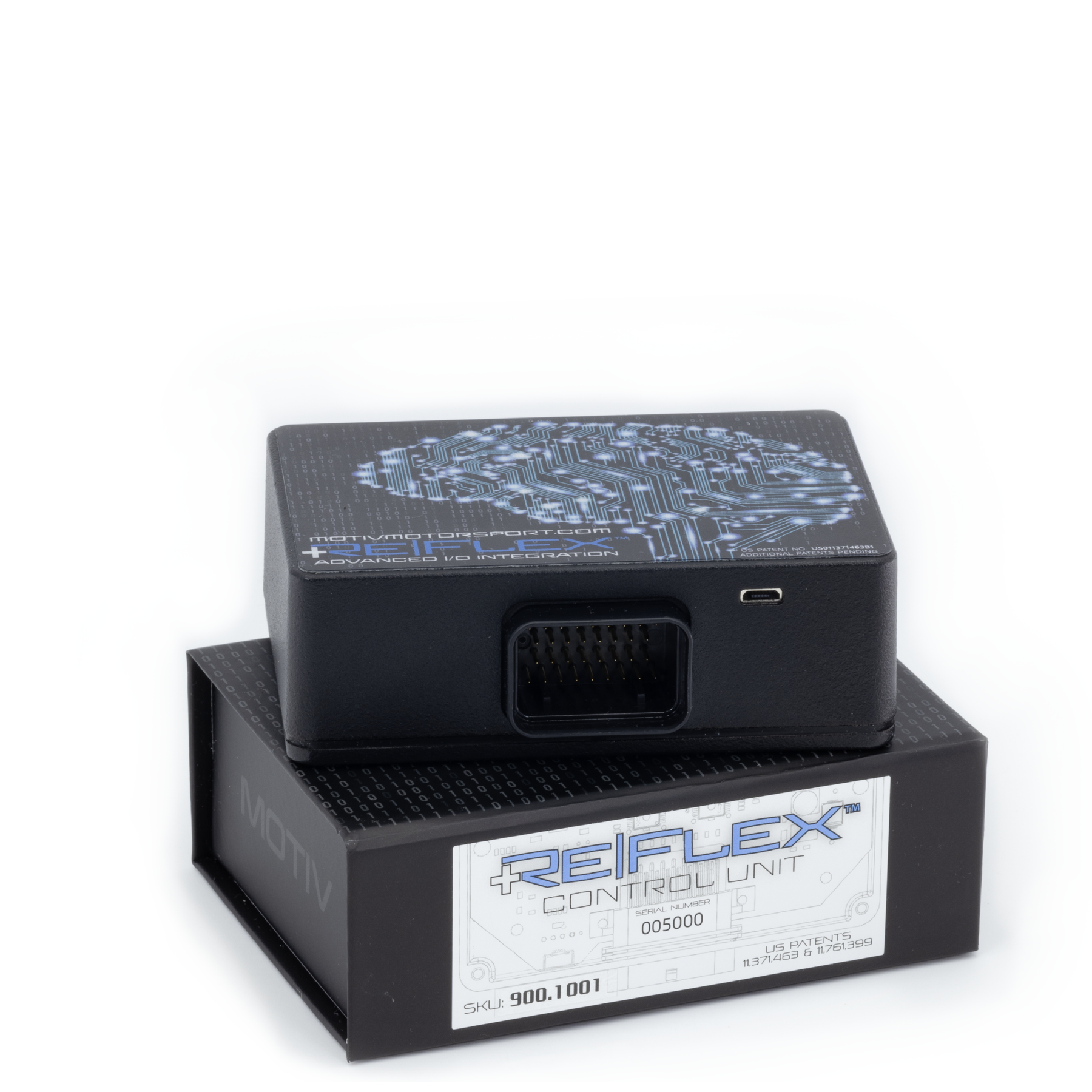

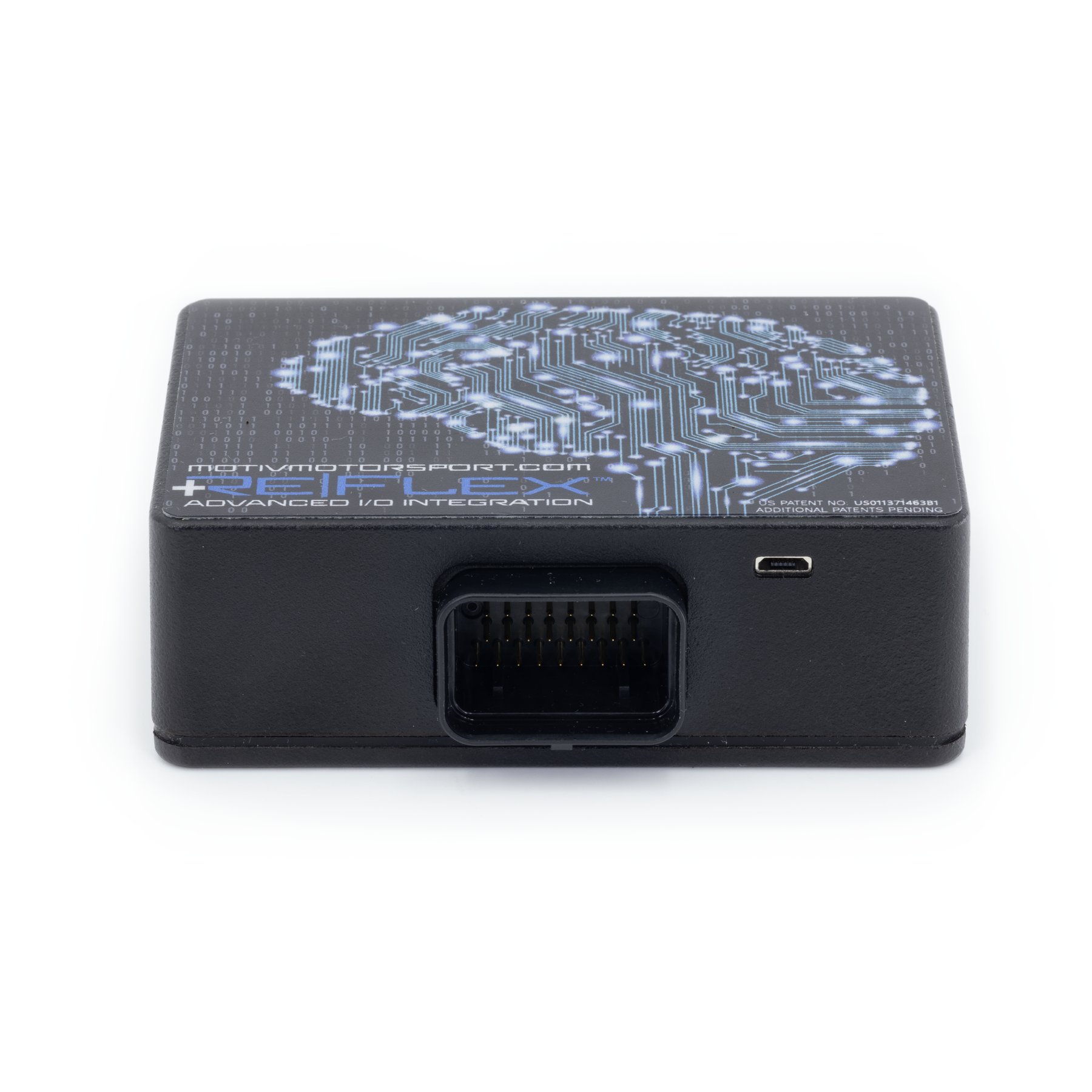

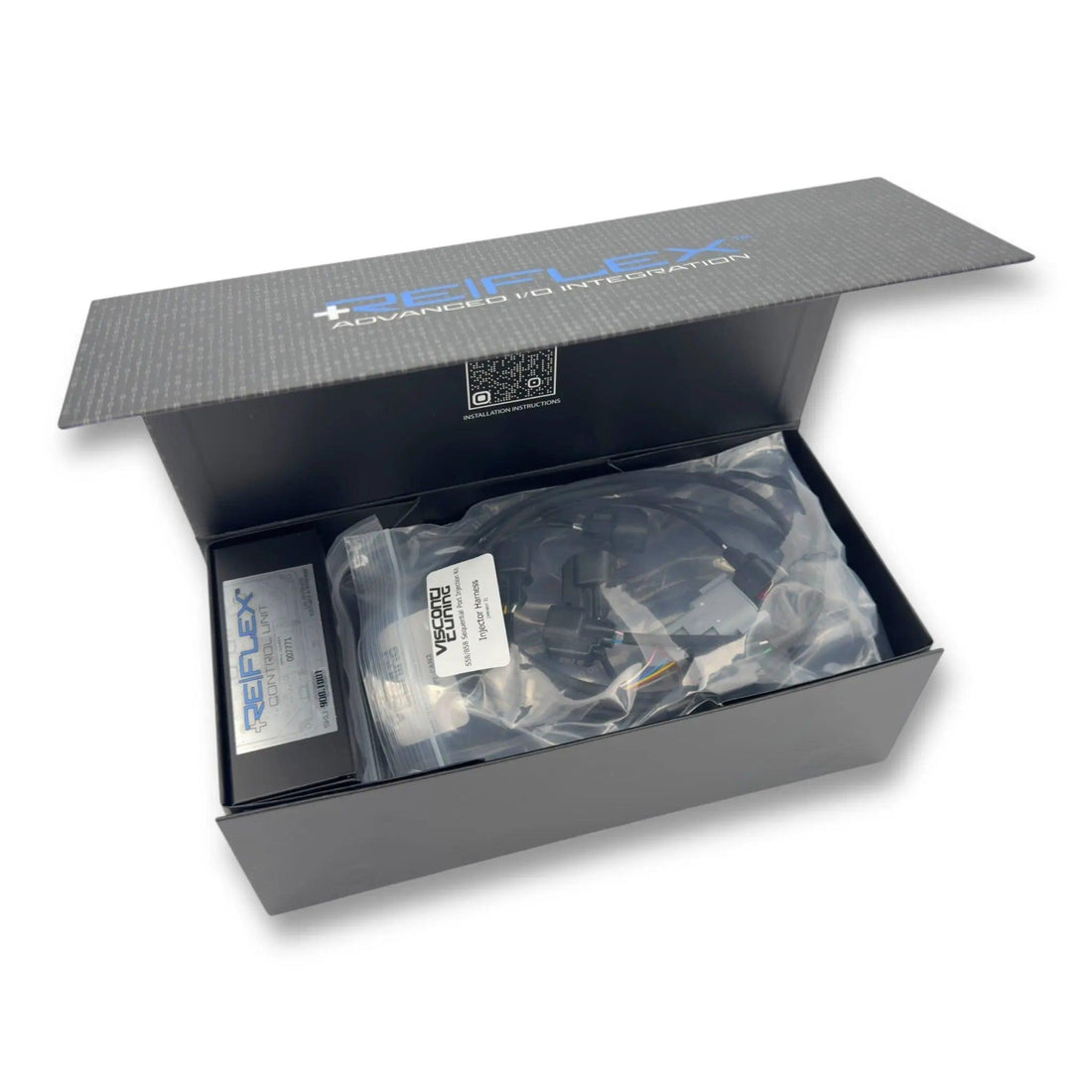

This harness works for both the ReFlex+ and ReFlex PRO.

Perfect fitment for BMW Engine Models: N54 / N55 / S55 / B58 / S58

Visconti Tuning teamed up with MOTIV as the first company to bring a plug and play harness to the community. After years of success and some of the fastest Supras and BMWs in the world using the harness, Visconti Tuning has improved upon an already fantastic offering.

Which Kit to Select

For all MHD+ and EcuTek vehicles with automatic transmissions please select PT-CAN2. For all BM3 and all manual transmission cars please select PT-CAN.

Key Benefits:

• Flexibility Across Platforms: Compatible with all tuning platforms. Standalone kits include a charge pipe harness for boost reference, while full CANBUS setups eliminate the need for this.
• True Flex Fuel Capability: Enables ECM to run true flex fuel when port injection is added, compensating fuel volume proportionally to ethanol content. This removes the need for manual tune adjustments for different ethanol blends.
• Fuel Pressure Monitoring: You can compensate injector pulse width when the low-pressure fuel system reaches capacity via the ECU or directly through the port injection controller (MOTIV REFLEX). Tuners can establish fail-safes through EcuTek RaceRom or MHD+ to manage power output under these conditions.

Why Choose Our Kit?

• MOTIV Motorsports Approved Harnesses: Award-winning quality
• 100% Plug and Play Wiring: Easy installation in less than 2 hours
• Tested Pre-Shipping: Ensures reliability
• Automotive Grade Wiring: Durable for long-term use
• Proudly Made in the USA at a IOS 9001 certified facility.


Requirements and Compatibility:

• Requires Port Injection Rail Kit or an aftermarket intake manifold.
• Does not include a fuel lines or fuel line adapters

• Does not include a flex fuel sensor
• Wiring fitment is compatible with all known aftermarket intake manifolds and various port injection plates.


Additional Information:

• Does not integrate with competing flex fuel kits.
• Designed to replace Zeitronix/CANBOXPRO controllers in our Flex Fuel kit.
• Existing CANBUS setups require updated tunes for hardware compatibility.

The ReFlex+ complete harness is broken into two portions. The Main Injector Harness and the Installation Harness. The Main Injector Harness consists of the following components:

• Port injection harness for V8 engines and has EV6 / USCAR injector connectors

• DTM 3-Pin connector for an ethanol content sensor connection using the ReFlex+ Plug-n-Play Ethanol Sensor Harness
• 2x DTM 2-Pin connectors to connect to external sensors like the ReFlex+ 0-10 Bar Pressure Sensor
  • Fuel Pressure
  • Coolant Pressure
  • Exhaust Back Pressure
  • Oil Pressure
• DTM 3-Pin connector for a 0-5v sensor
• DTM 2-Pin connector for an auxiliary output to supply switched +12v and a low side trigger from the ReFlex+ Control Unit
• 3x unterminated auxiliary output wires which function as low side triggers form the ReFlex+ Control Unit
• DTM 8-Pin connector for easy connection to your choice of ReFlex+ Install Harnesses

This harness works for both the ReFlex+ and ReFlex PRO.

Compatible Car Models

• BMW M5 S63TUx (F10 / F90 / G90)
• BMW M6 S63TUx (F06 / F12 / F13)
• BMW M8 S63TUx (F91 / F92 / F93)

• BMW X5M S63TUx (F85 / F95)
• BMW X6M S63TUx (F86 / F96)
• Universal / Generic fit for all V8 Engines

The ReFlex+ is an advanced integration module for performance vehicle tuning and auxiliary component control. With multiple patented technologies, the ReFlex+ is more than just an auxiliary injector controller. It offers advanced features typically found in high-end ECUs—at a fraction of the price. The ReFlex+ is designed to run in multiple control configurations from standalone tuning to full CAN Bus integration and offers unparalleled precision, flexibility, and performance.

NOTE: Select PT-CAN2 for all MHD+ and EcuTek cars with automatic transmissions. For BM3 and all manual transmission cars select PT-CAN.

Advanced Control Strategies

• Standalone Mode – No CAN Bus communication required
• Integrated CAN Bus – Compatible with MHD, EcuTek, MG Flasher, BM3 and any other tuning platform with the ability to receive and/or send CAN Bus messages.
• Advanced CAN Bus – Full integration with EcuTek and MHD+

Precision Sequential Port Injection & More

Originally developed to modernize port fuel injection, the ReFlex+ goes beyond traditional batch-fire controllers by delivering true sequential fuel injection. This ensures fuel is injected at the optimal moment for maximum efficiency, power, and reliability. But it doesn’t stop there—the ReFlex+ is a complete IO control hub designed for performance-driven applications.

Versatile Inputs & Outputs

The ReFlex+ is equipped with a range of inputs and outputs to support flex fuel tuning, boost control, sensor monitoring, and more.

     Inputs:

• Sequential Port Injection – Supports up to 8 injectors with fault-sensing feedback
• 4x Analog Inputs – Compatible with 0-5V and 4-20mA sensors
• 2x Frequency Inputs – Accepts signals up to 20kHz
• Dedicated Flex Fuel Input – Reads ethanol content for real-time flex fuel tuning
• MAP, Cam, and Crank Sensor Inputs – Essential for engine timing and load calculations

     Outputs:

• 4x Low-Side Auxiliary Outputs – PWM or digital ground triggers for methanol injection, nitrous, boost control, fuel pumps, and more
• 12V Switched Outputs – Power additional components with multiple ignition-switched voltage outputs

OEM-Level Integration & Flash Tuning Compatibility

The ReFlex+ seamlessly integrates with leading flash tuning platforms, including MHD, EcuTek, and MG Flasher allowing the factory ECU to directly control ReFlex+ functions. In addition, built-in safety measures are in place to help protect your investment.

Fully configurable through TunerPro RT, the ReFlex+ supports universal and vehicle-specific configurations. Free starter maps and setup guides are available on our website, with additional support available through support@motivmotorsport.com.

Unlock the Full Potential of Your Build

Whether you're looking for precise auxiliary fuel control, advanced sensor monitoring, or the ability to control performance aftermarket components, the ReFlex+ delivers unmatched performance and versatility.

Take your tuning to the next level with the MOTIV ReFlex+ Advanced IO Integration—engineered for power, precision, and reliability.

INCLUDED IN VISCONTI PTCAN2/PTCAN KIT:

1. ReFlex+ Control Unit
2. ReFlex Main Injector Harness - Inline-6
3. ReFlex+ Install Harness - BMW Plug-n-Play

INCLUDED IN TMS PTCAN2/PTCAN KIT:

1. ReFlex+ Control Unit
2. ReFlex+ Plug-n-Play Harness Kit - TMS

We recommend the following accessories when purchasing a ReFlex+ to integrate on your vehicle:

1. 0-10 Bar Pressure Sensor
2. Ethanol Content Sensor and Plug-n-Play Ethanol Sensor Harness

The ReFlex+ is an advanced integration module for performance vehicle tuning and auxiliary component control. With multiple patented technologies, the ReFlex+ is more than just an auxiliary injector controller. It offers advanced features typically found in high-end ECUs—at a fraction of the price. The ReFlex+ is designed to run in multiple control configurations from standalone tuning to full CAN Bus integration and offers unparalleled precision, flexibility, and performance.

Advanced Control Strategies

• Standalone Mode – No CAN Bus communication required
• Integrated CAN Bus – Compatible with MHD, EcuTek, MG Flasher, BM3 and any other tuning platform with the ability to receive and/or send CAN Bus messages.
• Advanced CAN Bus – Full integration with EcuTek and MHD+

Precision Sequential Port Injection & More

Originally developed to modernize port fuel injection, the ReFlex+ goes beyond traditional batch-fire controllers by delivering true sequential fuel injection. This ensures fuel is injected at the optimal moment for maximum efficiency, power, and reliability. But it doesn’t stop there—the ReFlex+ is a complete IO control hub designed for performance-driven applications.

Versatile Inputs & Outputs

The ReFlex+ is equipped with a range of inputs and outputs to support flex fuel tuning, boost control, sensor monitoring, and more.

     Inputs:

• Sequential Port Injection – Supports up to 8 injectors with fault-sensing feedback
• 4x Analog Inputs – Compatible with 0-5V and 4-20mA sensors
• 2x Frequency Inputs – Accepts signals up to 20kHz
• Dedicated Flex Fuel Input – Reads ethanol content for real-time flex fuel tuning
• MAP, Cam, and Crank Sensor Inputs – Essential for engine timing and load calculations

     Outputs:

• 4x Low-Side Auxiliary Outputs – PWM or digital ground triggers for methanol injection, nitrous, boost control, fuel pumps, and more
• 12V Switched Outputs – Power additional components with multiple ignition-switched voltage outputs

OEM-Level Integration & Flash Tuning Compatibility

The ReFlex+ seamlessly integrates with leading flash tuning platforms, including MHD, EcuTek, and MG Flasher allowing the factory ECU to directly control ReFlex+ functions. In addition, built-in safety measures are in place to help protect your investment.

Fully configurable through TunerPro RT, the ReFlex+ supports universal and vehicle-specific configurations. Free starter maps and setup guides are available on our website, with additional support available through support@motivmotorsport.com.

Unlock the Full Potential of Your Build

Whether you're looking for precise auxiliary fuel control, advanced sensor monitoring, or the ability to control performance aftermarket components, the ReFlex+ delivers unmatched performance and versatility.

Take your tuning to the next level with the MOTIV ReFlex+ Advanced IO Integration—engineered for power, precision, and reliability.

INCLUDED IN THIS KIT:

1. ReFlex+ Control Unit
2. ReFlex Main Injector Harness - Inline-4
3. ReFlex Install Harness - Flying Lead

We recommend the following accessories when purchasing a ReFlex+ to integrate on your vehicle:

1. 0-10 Bar Pressure Sensor
2. Ethanol Content Sensor and Plug-n-Play Ethanol Sensor Harness

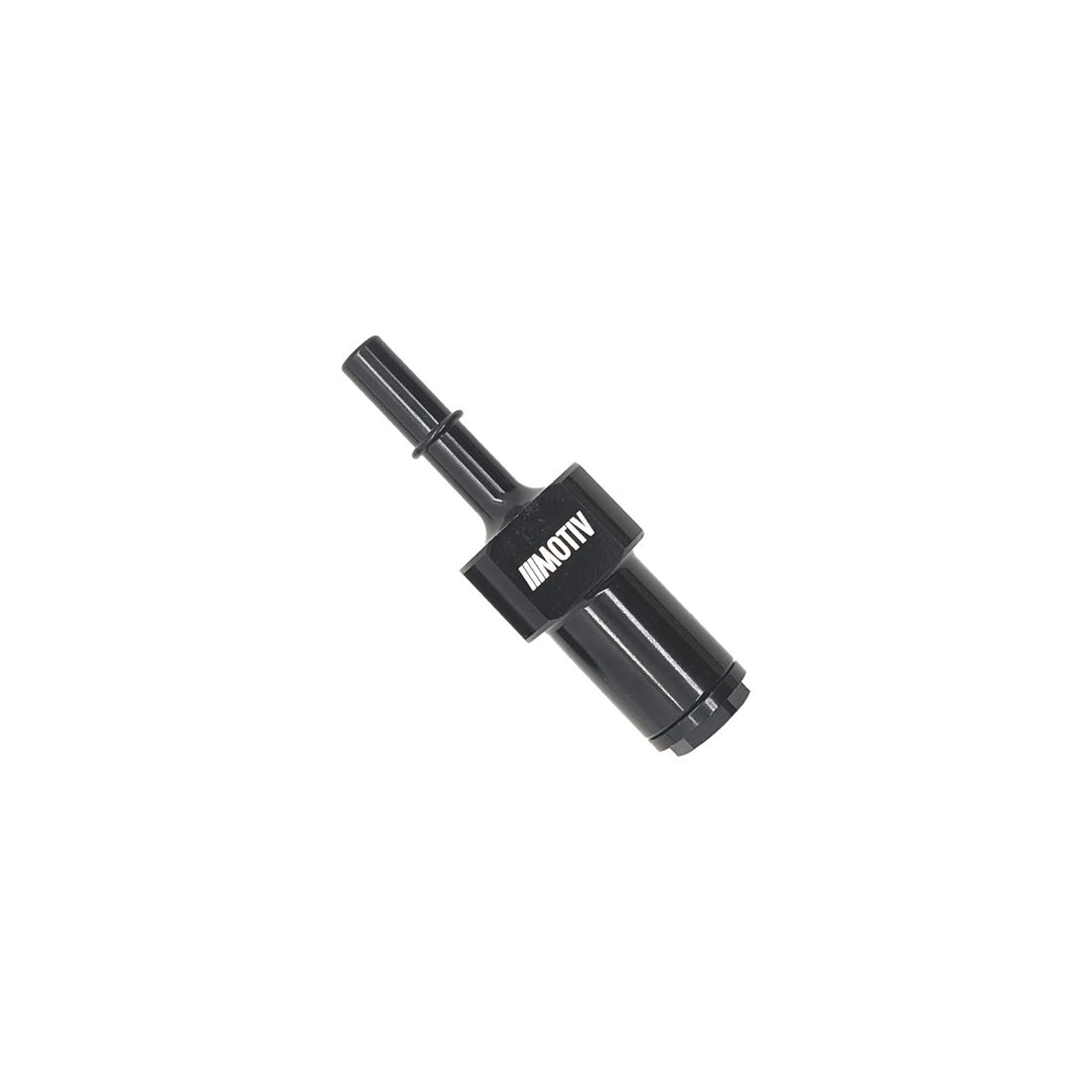

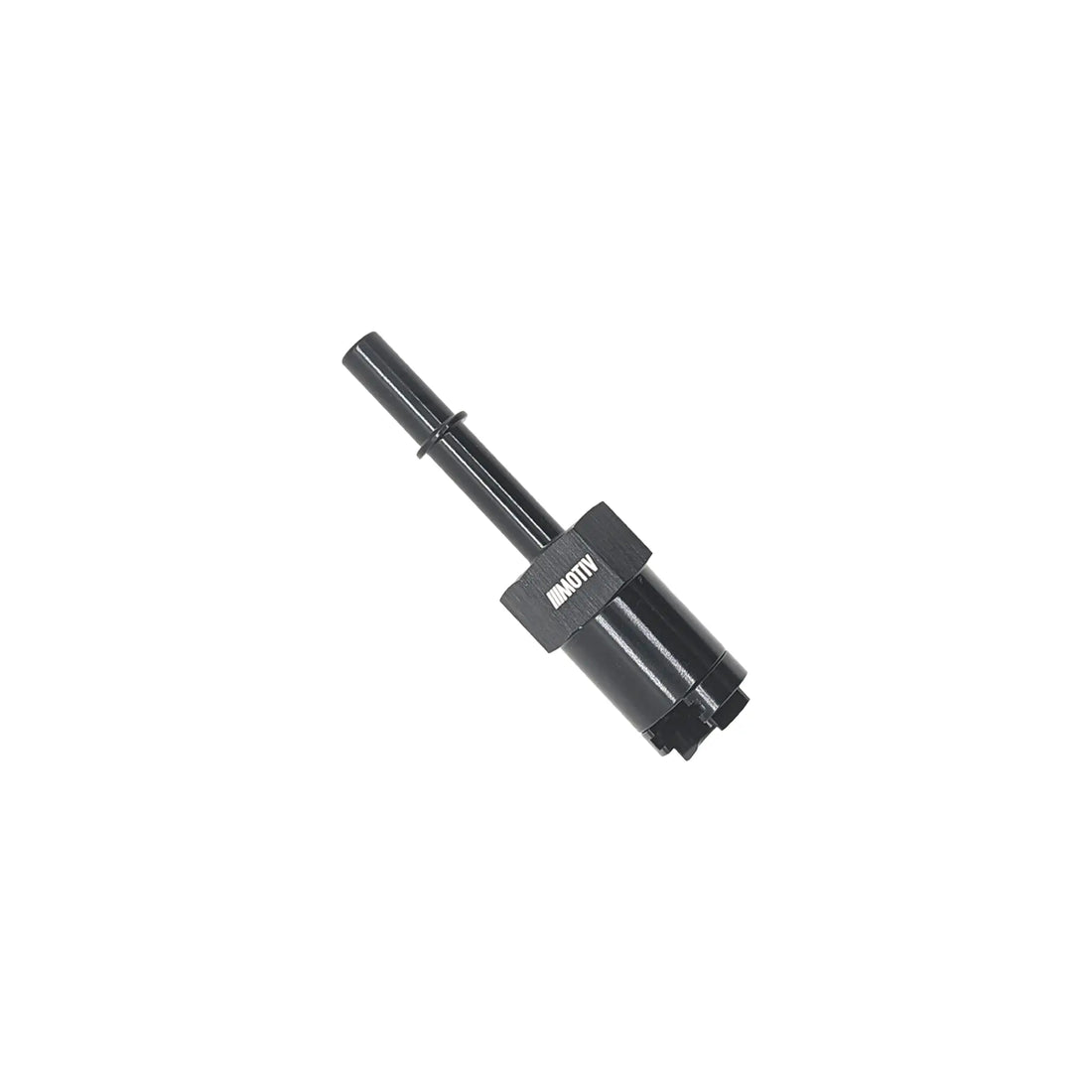

Easily integrate pressure sensors into your vehicle’s fuel system without permanent modifications. The Quick Disconnect Adapter (QDA) features precision-machined aluminum construction with black anodizing for corrosion resistance and long-term durability. Compatible with E85 and designed for OEM-level fit and performance.

Features

• 5/16" (8mm) Female Quick Disconnect – Attaches to factory hard line SAE fittings
• 5/16" (8mm) Male Quick Disconnect – Attaches to SAE fittings that your aftermarket fuel lines would normally install into
• 1/8" NPT Female Port – Add a pressure sensor or other NPT-compatible fittings
• Viton® O-Rings – High-performance seals resistant to fuel, oil, and solvents
• Black Anodized Finish – Corrosion-resistant and sleek
• Crescent-Lock System – Secure, vibration-resistant connection
• E85-Compatible – Safe for use in ethanol-blended fuel systems

Perfect For

• Maintaining a clean, factory-style installation
• Installing a fuel pressure sensor between the fuel line connections
• Non-invasive sensor integration for street or motorsport applications

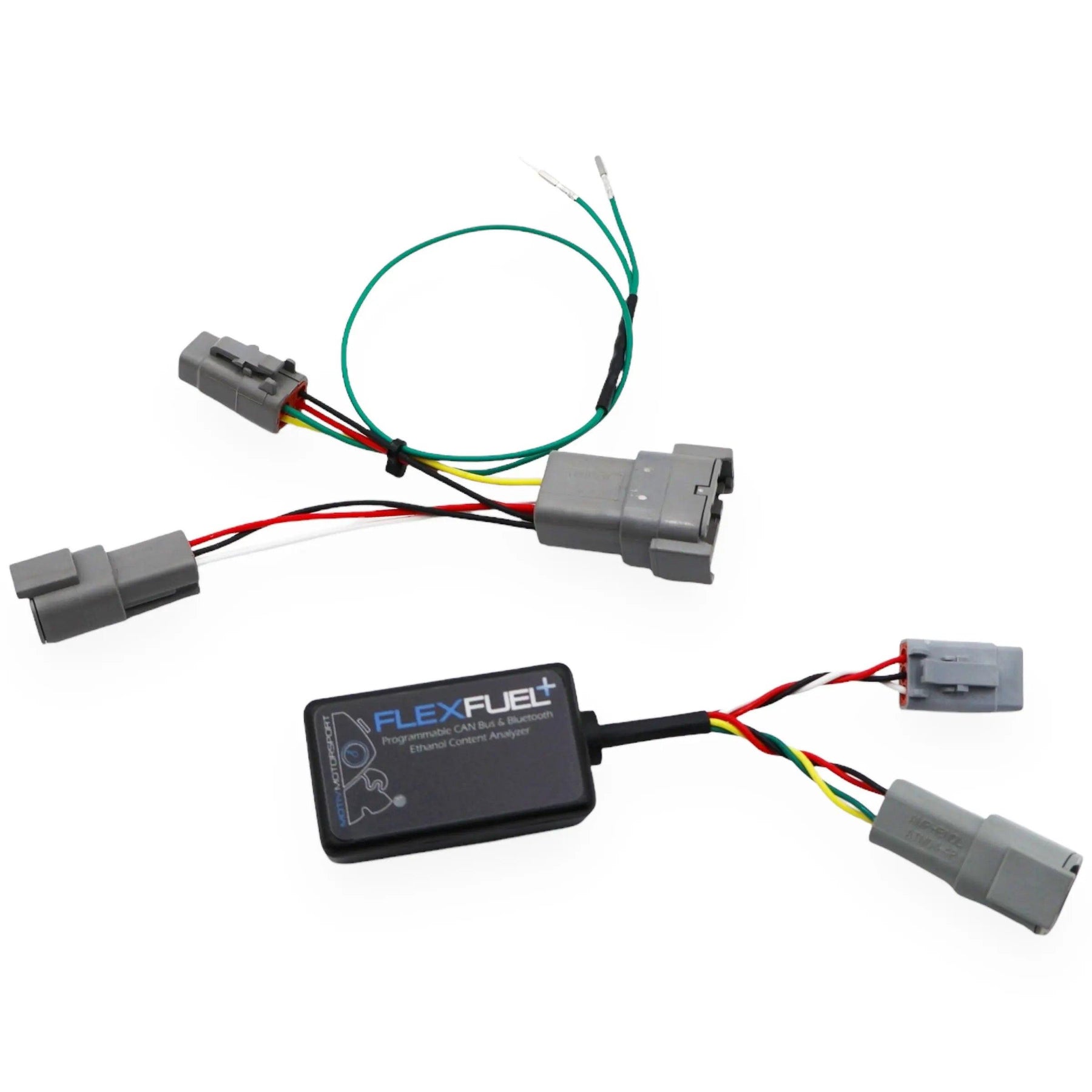

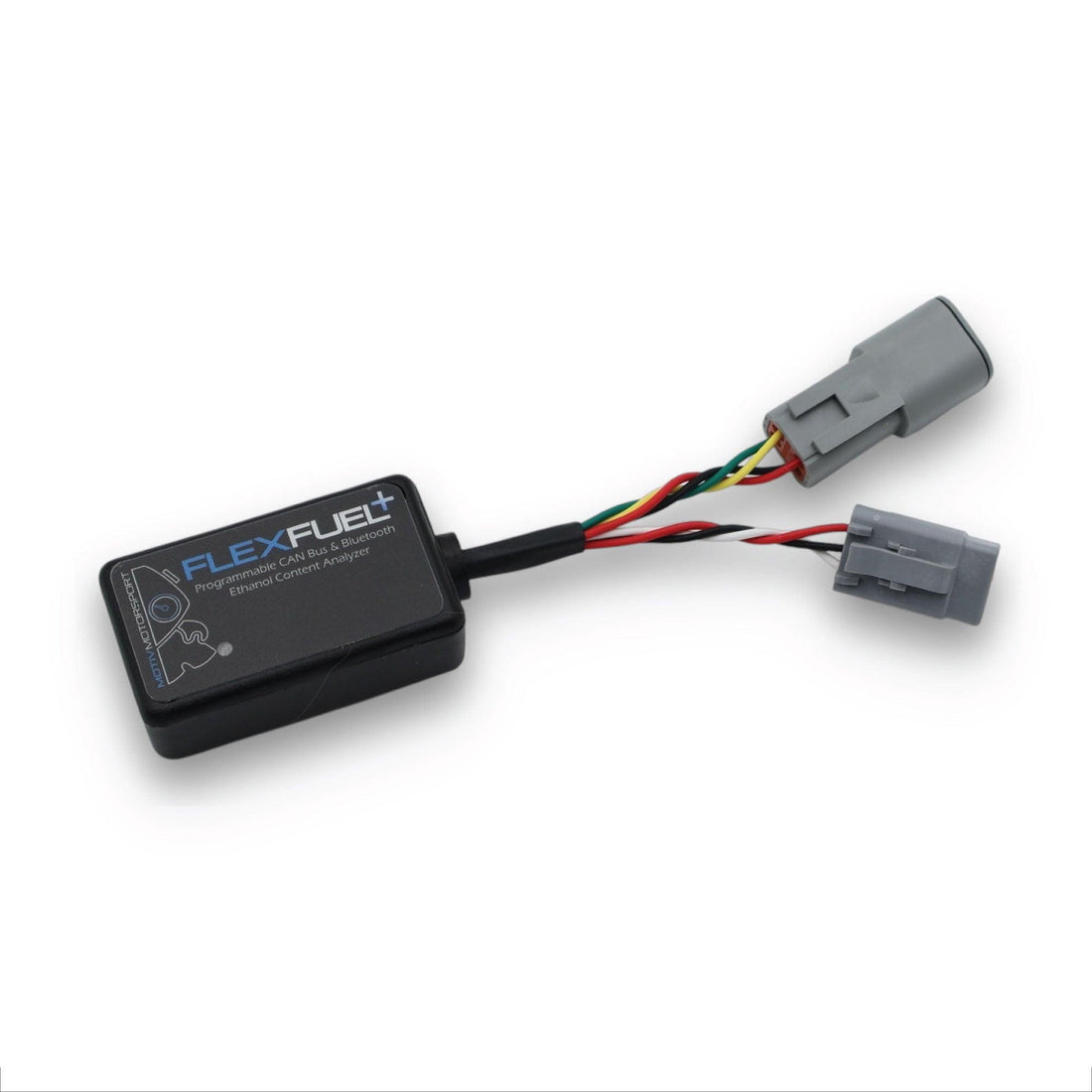

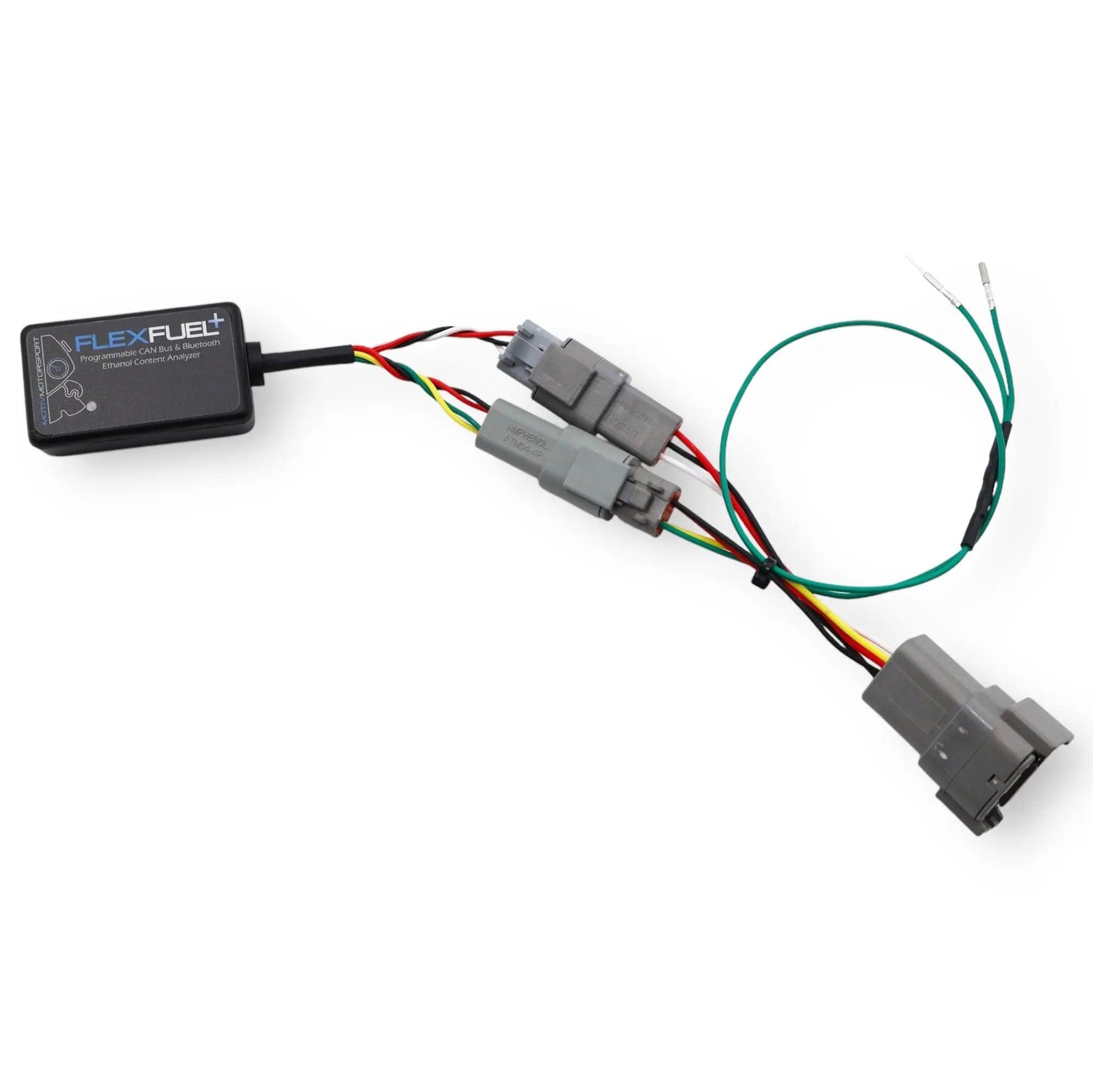

Upgrade Your BMW N54 Flex Fuel Setup to a CAN Bus installation with EASE!
For customers with the original Flex Fuel for MHD on their BMW N54, we’ve designed an upgrade harness to pair seamlessly with the new FlexFuel+ system. This kit makes installation straightforward and hassle-free.

Here’s how it works:

1. Remove your existing Flex Fuel for MHD controller.
2. Install the new FlexFuel+ controller and the upgrade harness.
3. Connect the upgrade harness to your existing harness.

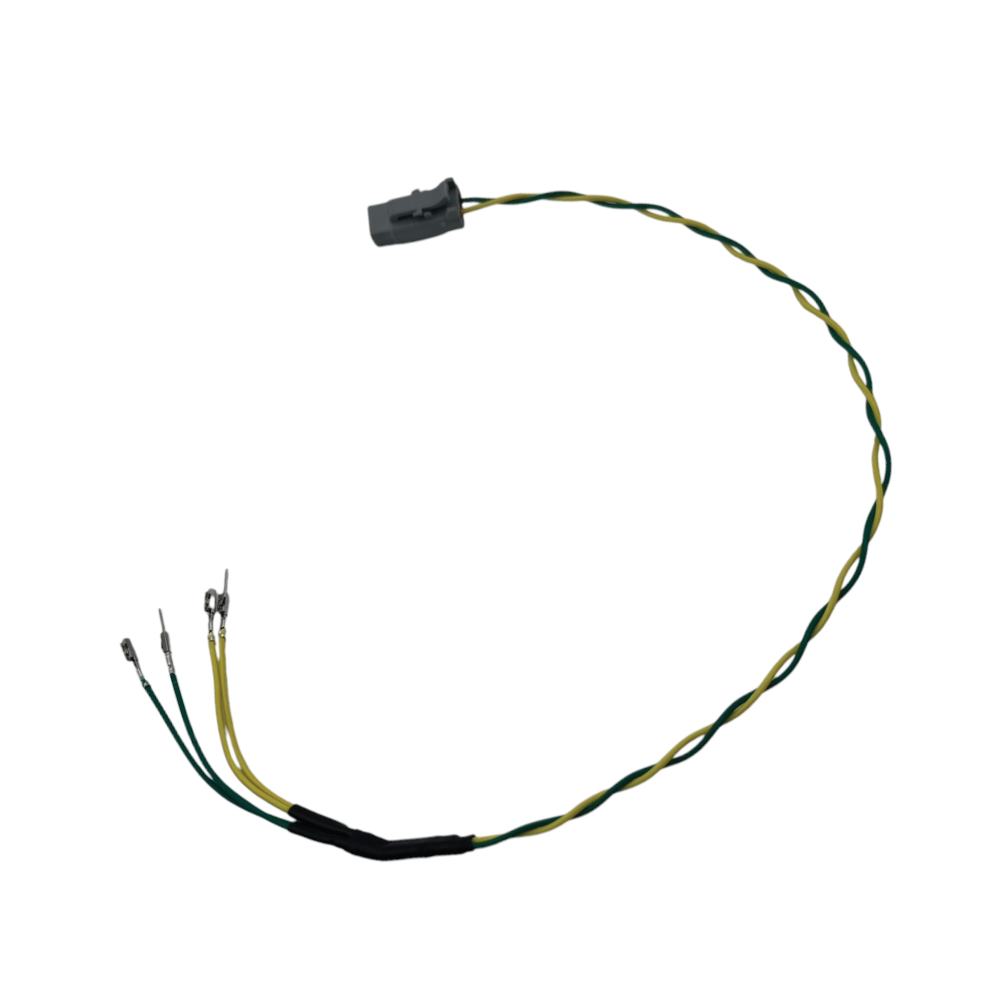

4. Attach the CAN Bus jumpers, reflash your MHD, and you’re ready to go!

For full installation instructions check out the user manual and information HERE.

A flying lead harness is a wiring harness that is unterminated at one end and has an excess length of wire so that installation can be customized by the end user. That makes this section of the ReFlex+ or ReFlex PRO Install Harness truly universal.

On one end, this harness has a 8-Pin connector to plug into any one of our ReFlex+ Main Injector Harnesses. The other end of each wire is unterminated and will be connected to the appropriate sensor, ground, or power supply based on installation instructions.

Each harness has a wire for:

• Switched +12v Input w/ inline fuse
• +5v Input
• Ground
• Can HI
• Can Lo
• Cam Sensor Signal
• Crank Sensor Signal
• Map Sensor Signal

Please Note: This harness allows the connection of a ReFlex+ to any vehicle, however there are different ReFlex+ Control Units that are compatible with different vehicles based on MAF, MAP, and other sensor data. If you do not see your specific vehicle mentioned please inquire as calibration is required for signals to read correctly.

Perfect fitment for BMW Vehicles with V8 Engines: M5, M6, M8, 550i, 650i, 750i, 850i, and universal generic fitment for other vehicles with V8 engines.

The ReFlex+ is an advanced integration module for performance vehicle tuning and auxiliary component control. With multiple patented technologies, the ReFlex+ is more than just an auxiliary injector controller. It offers advanced features typically found in high-end ECUs—at a fraction of the price. The ReFlex+ is designed to run in multiple control configurations from standalone tuning to full CAN Bus integration and offers unparalleled precision, flexibility, and performance.

Advanced Control Strategies

• Standalone Mode – No CAN Bus communication required
• Integrated CAN Bus – Compatible with MHD, EcuTek, MG Flasher, BM3 and any other tuning platform with the ability to receive and/or send CAN Bus messages.
• Advanced CAN Bus – Full integration with EcuTek and MHD+

Precision Sequential Port Injection & More

Originally developed to modernize port fuel injection, the ReFlex+ goes beyond traditional batch-fire controllers by delivering true sequential fuel injection. This ensures fuel is injected at the optimal moment for maximum efficiency, power, and reliability. But it doesn’t stop there—the ReFlex+ is a complete IO control hub designed for performance-driven applications.

Versatile Inputs & Outputs

The ReFlex+ is equipped with a range of inputs and outputs to support flex fuel tuning, boost control, sensor monitoring, and more.

     Inputs:

• Sequential Port Injection – Supports up to 8 injectors with fault-sensing feedback
• 4x Analog Inputs – Compatible with 0-5V and 4-20mA sensors
• 2x Frequency Inputs – Accepts signals up to 20kHz
• Dedicated Flex Fuel Input – Reads ethanol content for real-time flex fuel tuning
• MAP, Cam, and Crank Sensor Inputs – Essential for engine timing and load calculations

     Outputs:

• 4x Low-Side Auxiliary Outputs – PWM or digital ground triggers for methanol injection, nitrous, boost control, fuel pumps, and more
• 12V Switched Outputs – Power additional components with multiple ignition-switched voltage outputs

OEM-Level Integration & Flash Tuning Compatibility

The ReFlex+ seamlessly integrates with leading flash tuning platforms, including MHD, EcuTek, and MG Flasher allowing the factory ECU to directly control ReFlex+ functions. In addition, built-in safety measures are in place to help protect your investment.

Fully configurable through TunerPro RT, the ReFlex+ supports universal and vehicle-specific configurations. Free starter maps and setup guides are available on our website, with additional support available through support@motivmotorsport.com.

Unlock the Full Potential of Your Build

Whether you're looking for precise auxiliary fuel control, advanced sensor monitoring, or the ability to control performance aftermarket components, the ReFlex+ delivers unmatched performance and versatility.

Take your tuning to the next level with the MOTIV ReFlex+ Advanced IO Integration—engineered for power, precision, and reliability.

INCLUDED IN THIS KIT:

1. ReFlex+ Control Unit
2. ReFlex Main Injector Harness - V8
3. ReFlex Install Harness - Flying Lead

We recommend the following accessories when purchasing a ReFlex+ to integrate on your vehicle:

1. 0-10 Bar Pressure Sensor
2. Ethanol Content Sensor and Plug-n-Play Ethanol Sensor Harness

The ReFlex+ is an advanced integration module for performance vehicle tuning and auxiliary component control. With multiple patented technologies, the ReFlex+ is more than just an auxiliary injector controller. It offers advanced features typically found in high-end ECUs—at a fraction of the price. The ReFlex+ is designed to run in multiple control configurations from standalone tuning to full CAN Bus integration and offers unparalleled precision, flexibility, and performance.

Advanced Control Strategies

• Standalone Mode – No CAN Bus communication required
• Integrated CAN Bus – Compatible with MHD, EcuTek, MG Flasher, BM3 and any other tuning platform with the ability to receive and/or send CAN Bus messages.
• Advanced CAN Bus – Full integration with EcuTek and MHD+

Precision Sequential Port Injection & More

Originally developed to modernize port fuel injection, the ReFlex+ goes beyond traditional batch-fire controllers by delivering true sequential fuel injection. This ensures fuel is injected at the optimal moment for maximum efficiency, power, and reliability. But it doesn’t stop there—the ReFlex+ is a complete IO control hub designed for performance-driven applications.

Versatile Inputs & Outputs

The ReFlex+ is equipped with a range of inputs and outputs to support flex fuel tuning, boost control, sensor monitoring, and more.

     Inputs:

• Sequential Port Injection – Supports up to 8 injectors with fault-sensing feedback
• 4x Analog Inputs – Compatible with 0-5V and 4-20mA sensors
• 2x Frequency Inputs – Accepts signals up to 20kHz
• Dedicated Flex Fuel Input – Reads ethanol content for real-time flex fuel tuning
• MAP, Cam, and Crank Sensor Inputs – Essential for engine timing and load calculations

     Outputs:

• 4x Low-Side Auxiliary Outputs – PWM or digital ground triggers for methanol injection, nitrous, boost control, fuel pumps, and more
• 12V Switched Outputs – Power additional components with multiple ignition-switched voltage outputs

OEM-Level Integration & Flash Tuning Compatibility

The ReFlex+ seamlessly integrates with leading flash tuning platforms, including MHD, EcuTek, and MG Flasher allowing the factory ECU to directly control ReFlex+ functions. In addition, built-in safety measures are in place to help protect your investment.

Fully configurable through TunerPro RT, the ReFlex+ supports universal and vehicle-specific configurations. Free starter maps and setup guides are available on our website, with additional support available through support@motivmotorsport.com.

Unlock the Full Potential of Your Build

Whether you're looking for precise auxiliary fuel control, advanced sensor monitoring, or the ability to control performance aftermarket components, the ReFlex+ delivers unmatched performance and versatility.

Take your tuning to the next level with the MOTIV ReFlex+ Advanced IO Integration—engineered for power, precision, and reliability.

INCLUDED IN THIS KIT:

1. ReFlex+ Control Unit
2. ReFlex Main Injector Harness - Inline-4 (Ford)
3. ReFlex Install Harness - Flying Lead (Ford)

We recommend the following accessories when purchasing a ReFlex+ to integrate on your vehicle:

1. 0-10 Bar Pressure Sensor
2. Ethanol Content Sensor and Plug-n-Play Ethanol Sensor Harness

The ReFlex+ complete harness is broken into two portions. The Main Injector Harness and the Installation Harness. The Main Injector Harness consists of the following components:

• Port injection harness for Inline-4 Ford engines with EV6 / USCAR injector connectors
• DTM 3-Pin connector for an ethanol content sensor connection using the ReFlex+ Plug-n-Play Ethanol Sensor Harness
• Unterminated wires for use as:
  • Inputs
    • 2x ReFlex+ 0-10 Bar Pressure Sensor
    • 1x 0-5V Sensor
  • Outputs
    • 4x Low-Side Triggers
• DTM 8-Pin connector for easy connection to your choice of ReFlex+ Install Harness - Flying Lead (Ford)

This harness works for both the ReFlex+ and ReFlex PRO.

ReFlex Main Injector Harness - Inline-4 is perfect for installations on universal Inline-4 Engine applications (BMW, Ford, MazdaSpeed, Audi, etc).

ReFlex Main Injector Harness - Inline-4 (Ford) is perfect for installations on Ford Inline-4 Engines setup for use with TunePlus hardware.

The ReFlex+ complete harness is broken into two portions. The Main Injector Harness and the Installation Harness. The Main Injector Harness consists of the following components:

• Port injection harness for Inline-6 engines with EV6 / USCAR injector connectors
• DTM 3-Pin connector for an ethanol content sensor connection using the ReFlex+ Plug-n-Play Ethanol Sensor Harness
• 2x DTM 2-Pin connectors to connect to external sensors like the ReFlex+ 0-10 Bar Pressure Sensor
  • Fuel Pressure
  • Coolant Pressure
  • Exhaust Back Pressure
  • Oil Pressure
• DTM 3-Pin connector for a 0-5v sensor
• DTM 2-Pin connector for an auxiliary output to supply switched +12v and a low side trigger from the ReFlex+ Control Unit
• 3x unterminated auxiliary output wires which function as low side triggers form the ReFlex+ Control Unit
• DTM 8-Pin connector for easy connection to your choice of ReFlex+ Install Harnesses

This harness works for both the ReFlex+ and ReFlex PRO.

ReFlex Main Injector Harness - Inline-4 is perfect for installations on universal Inline-4 Engine applications (BMW, Ford, MazdaSpeed, Audi, etc).

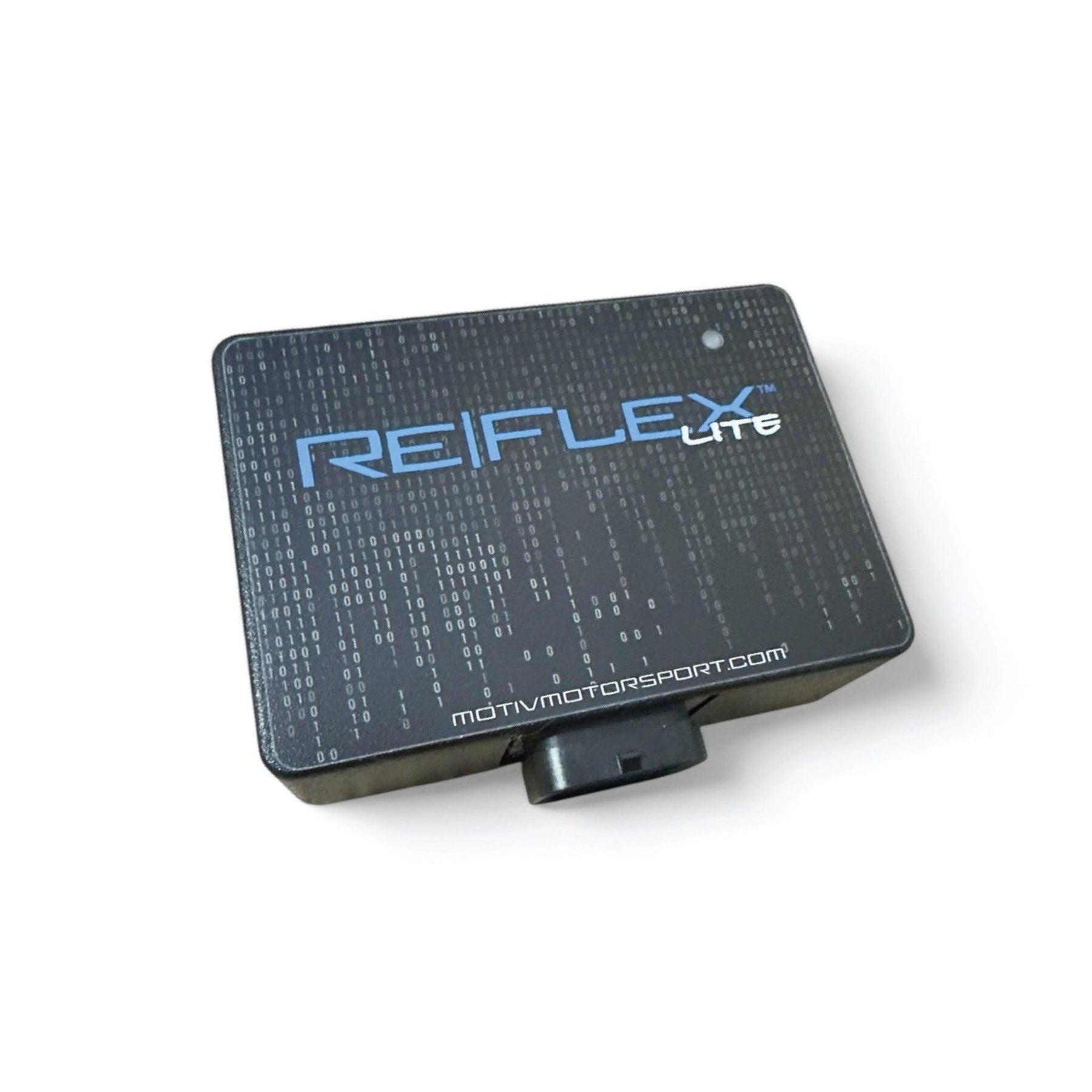

The ReFlex LITE from MOTIV Motorsport now has an updated design, delivering the same reliable performance and precision control that tuners have come to trust—with a more motorsport grade enclosure/connector.

This latest version features an improved physical footprint and an all-new wiring configuration for cleaner installs and easier integration. This allows for a more universal application for current users and individuals, tuners, or companies looking to adapt the controller for their platforms.

At the heart of the update is a single consolidated harness that interfaces with the control unit via a robust 26-way Superseal connector. This change simplifies wiring while maintaining full compatibility with existing ReFlex LITE features and functions.

This offering is for the universal harness that can be wired into any vehicle with the same engine configuration. Currently we are offering this harness for the following engine types:

• Inline-4 (BMW, Toyota, Mazda, Ford, Audi, etc)
• Inline-6 (BMW, Toyota, etc)

LINKS WILL BEGIN SHIPPING SEPTEMBER 8!!!

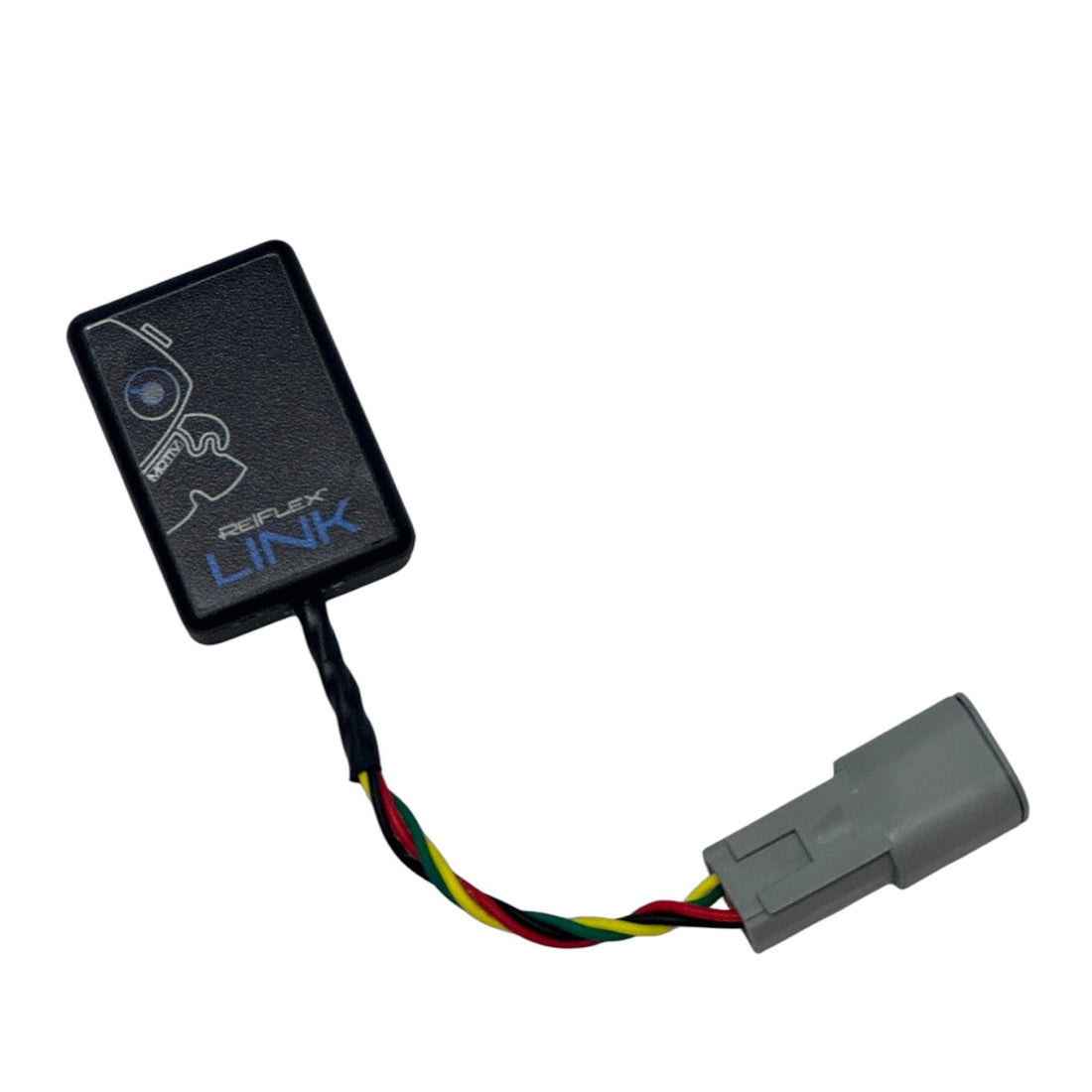

MOTIV Link for ReFlex+: Wireless Control, Monitoring, and Updates

Experience true wireless with the MOTIV Link for the ReFlex+. Access real-time data, monitor system health, review diagnostics, and update firmware directly via the MOTIV APP, all over Bluetooth (BLE). As the MOTIV APP continues to evolve, expect ongoing feature enhancements and expanded functionality designed to push the boundaries of engine management integration.

Seamless Integration with ReFlex+

The MOTIV Link module integrates BLE connectivity in a compact, easy-to-install solution. Installation onto any existing ReFlex+ controller can be completed in just minutes using one of our dedicated harness solutions:

• MOTIV Main Injector Patch Harness & Universal Flying Lead – We have produced a clean, simple patch harness designed to connect directly between the existing 8-pin connector on the main harness and the mating 8-pin connector on the flying lead. This harness seamlessly connects all necessary signals to the MOTIV Link with minimal effort.
• Various Plug-and-Play Harnesses – We have designed a harness to tap into 4 wires near the main connector at the ReFlex+ that goes directly into a connector for the MOTIV Link. Harness makers in the future will likely just add the 4-pin connector that will plug directly into the Link for ease of install.

Real-Time Data and Diagnostics via MOTIV APP

Using your iOS or Android device—phone or tablet—you can now wirelessly monitor critical ReFlex+ system data in real time, including but not limited to:

• Injector Status
• Engine Status
• CAN Bus Activity
• Crank and Cam Signal Status
• MAP Sensor Readings
• Firmware Version
• Auxiliary Outputs (Status and DC)
• Ethanol Content
• Fuel Pressure
• Boost Pressure
• And much more

In addition to live monitoring, firmware updates can now be performed over-the-air (OTA) through the MOTIV APP, eliminating the need for USB connections or physical access to the ReFlex+ module. Simply launch the app, check for updates, and apply new firmware—effortlessly.

Future-Proof by Design

The MOTIV APP is under continuous development, with new features and capabilities being added regularly. Our roadmap includes advanced monitoring, control, and diagnostic tools that will continue to expand the ReFlex+ ecosystem.

If you can imagine it—we’re already working on it.

The goal is to eliminate the need for laptops and USB connections entirely. This is coming soon!!!

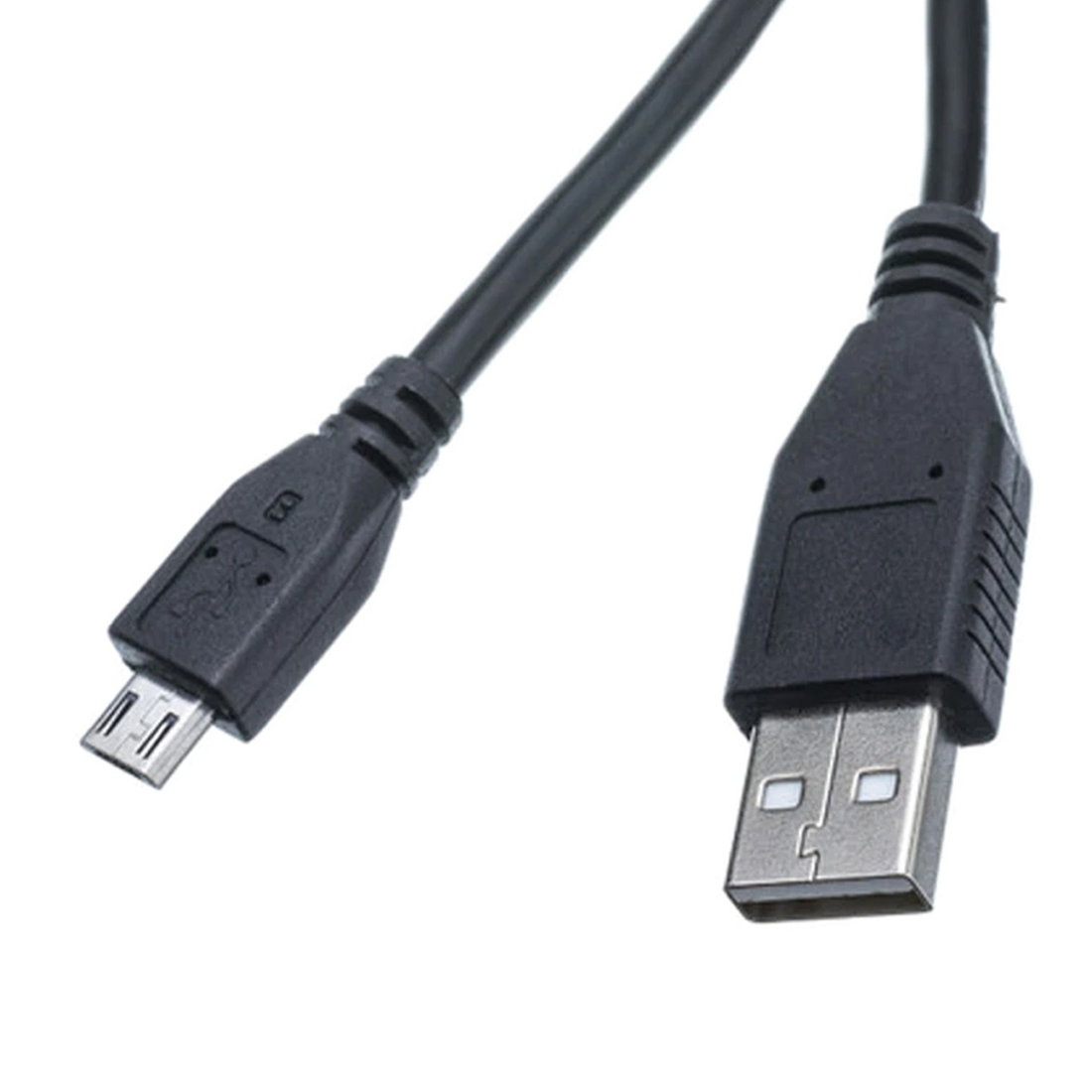

This 3ft Black Micro USB 2.0, Type A to Micro B cable is the perfect accessory to set up, program, and tune your ReFlex+. It meets USB 2.0 Hi-Speed specifications and is backwards compatible with USB 1.0 and 1.1.

One of the most common support emails we receive is from customers who cannot get their computer to connect to the ReFlex+. Nearly every occurrence is a result of using a USB Micro Cable that is for charging devices only. With this cable you can be guaranteed the correct tool for the job.

This data cable is compatible with the ReFlex+ and the ReFlex LITE.

The ReFlex+ 0-10 Bar Pressure Sensor is ideal for measuring fluid and air pressure. The sensor is terminated with a 2-Pin DTM connector for direct plug and play connection to the ReFlex+ harness. On many of the flash platforms it is integrated over CANbus to supply Fuel Pressure to the ECU and the ReFlex+. In addition, it can also be used for boost, coolant, oil and a variety of other fluids. Each ReFlex+ can integrate two of these sensors at a time.

For easy installation, it is recommended to use the 3/8 Female to 3/8 Male SAE Quick Disconnect Adapter with 1/8" NPT port on an ethanol sensor. Alternatively, you can use the 5/16 Female to 5/16 Male SAE Quick Disconnect Adapter with 1/8" NPT port on a factory fuel line.

Please Note: Does not include an ethanol sensor.

MOTIV's Link brings WiFi and Bluetooth connectivity to your ReFlex+. In order to do this in a clean and plug-n-play way, we have created a patch harness that goes in between the ReFlex+ Main Injector Harness 8-pin connector to the Installation Harness in order to split the required wires out to the Link connector in just a few seconds.

Real-Time Ethanol Content Analyzer for Optimal Vehicle Performance

Optimize your vehicle's performance with the MOTIV FlexFuel+ Control Unit. This compact, high-tech device was engineered to measure real-time ethanol content and fuel temperature and seamlessly deliver live data to your ECU via CAN Bus and to the MOTIV App via Bluetooth Low Energy (BLE).

Key Features:

• Built-In Bluetooth & WiFi: For wireless data transmission and easy setup.
• Free MOTIV App: Monitor ethanol content, fuel temperature, and more. Effortlessly configure the unit to work with any ECU, offering infinite options for CAN Bus ID transmission.
• DTM Connectors: Ensure high-quality wiring connections and hassle-free installation.

Real-Time Data Available:

• Ethanol Percentage (%): Instant analysis for precise fuel blend management.
• Fuel Temperature: Select your preferred unit (°C or °F).
• Sensor Connection Status: Confirms proper functionality.
• CAN Bus Status: Ensures accurate communication with your vehicle’s ECU.

PLEASE NOTE: This does not include any installation harnesses. It is for the control unit ONLY.

Easily integrate pressure sensors into your vehicle’s fuel system without permanent modifications. The Quick Disconnect Adapter (QDA) features precision-machined aluminum construction with black anodizing for corrosion resistance and long-term durability. Compatible with E85 and designed for OEM-level fit and performance.

Features

• 3/8" (9.5mm) Female Quick Disconnect – Attaches to ethanol sensors or fuel system components
• 3/8" (9.5mm) Male Quick Disconnect – Attaches to SAE fittings that your ethanol sensor would connect to
• 1/8" NPT Female Port – Add a pressure sensor or other NPT-compatible fittings
• Viton® O-Rings – High-performance seals resistant to fuel, oil, and solvents
• Black Anodized Finish – Corrosion-resistant and sleek
• Crescent-Lock System – Secure, vibration-resistant connection
• E85-Compatible – Safe for use in ethanol-blended fuel systems

Perfect For

• Maintaining a clean, factory-style installation
• Installing a fuel pressure sensor between the fuel line and ethanol sensor
• Non-invasive sensor integration for street or motorsport applications


The FlexFuel+ module requires only a few connections for such a powerful device. This harness provides power, ground, and the CanBUS Hi and Lo wiring connections.

We offer a few varieties of the harness for installation into different vehicles and platforms for ease of use.

• Universal - The universal variant ensures seamless integration of the FlexFuel+ Control Unit into your vehicle, unlocking its full potential. It includes the wiring for power and ground using a 3M S/LOK and bullet connector for 14-18awg wire as well as a ground loop terminal for a 10mm stud or bolt. Additionally it comes with the 2-Way DTM to connect to a variety of our CAN Bus harness adapters.
• N54 OG to FF+ - This variant is perfect for the MHD user who had our original Flex Fuel module and would like to upgrade to the CAN Bus version for integration to their car and Bluetooth all in one. This harness will connect directly to the FlexFuel+ connectors and then plug into your existing harness already installed from your Flex Fuel for MHD installation.
• Ford - The Ford variant is for a direct plug-n-play setup with www.tuneplusinc.com setups. Please contact them for specific details on your setup.

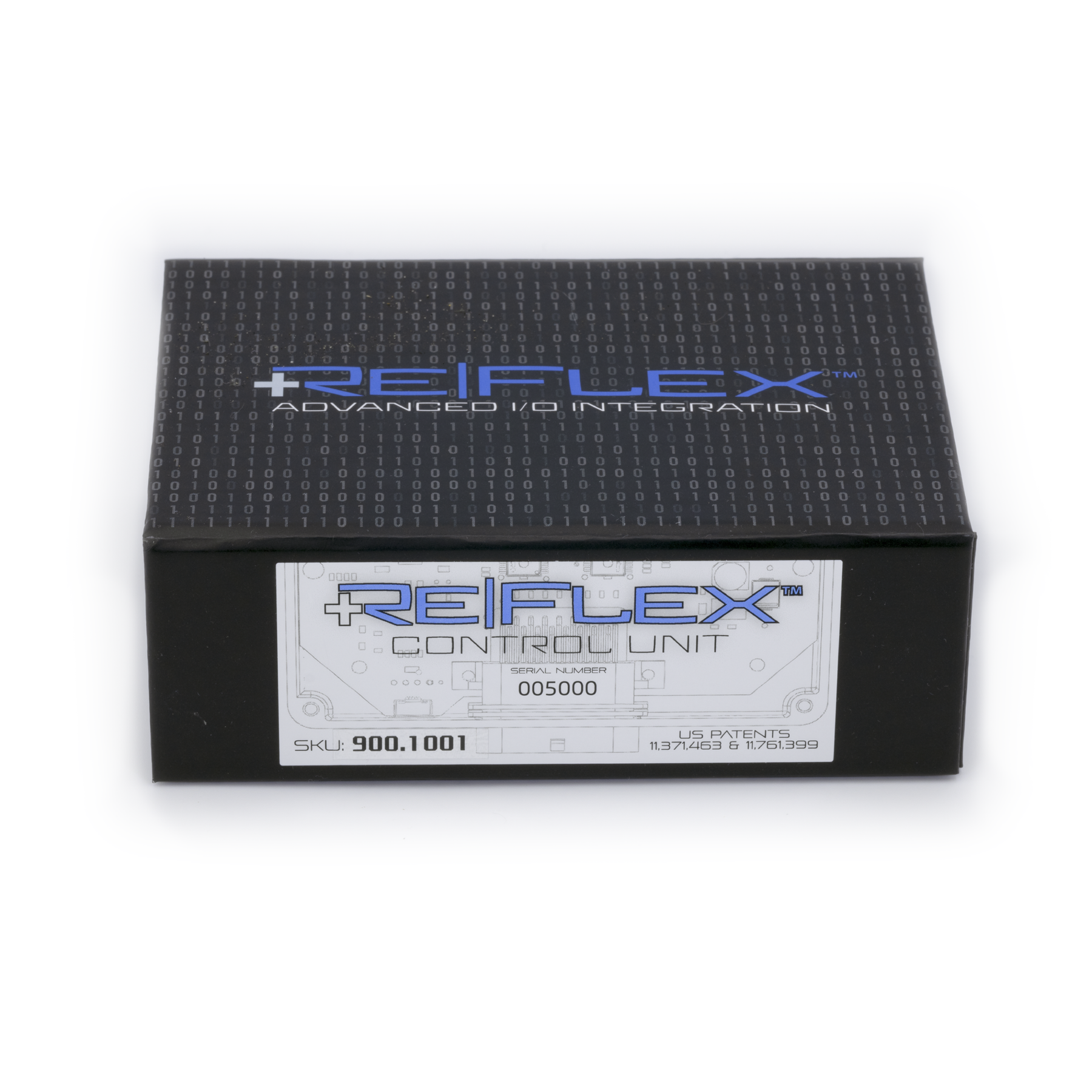

The ReFlex+ Control Unit is an advanced integration module for performance vehicle tuning and auxiliary component control. The ReFlex+ was designed to run in a variety of configurations from standalone tuning to full CAN Bus integration, the ReFlex+ offers unparalleled precision, flexibility, and performance.

Advanced Control Strategies

• Standalone Mode – No CAN Bus communication required
• Integrated CAN Bus – Compatible with MHD, EcuTek, MG Flasher, BM3 and any other tuning platform with the ability to receive and/or send CAN Bus messages.
• Advanced CAN Bus – Full integration with EcuTek and MHD+

Precision Sequential Port Injection & More

Originally developed to modernize port fuel injection, the ReFlex+ goes beyond traditional batch-fire controllers by delivering true sequential fuel injection. This ensures fuel is injected at the optimal moment for maximum efficiency, power, and reliability. But it doesn’t stop there—the ReFlex+ is a complete IO control hub designed for performance-driven applications.

Versatile Inputs & Outputs

With multiple patented technologies, the ReFlex+ is more than just an auxiliary injector controller. It offers advanced features typically found in high-end ECUs—at a fraction of the price. The ReFlex+ is equipped with a range of inputs and outputs to support flex fuel tuning, boost control, sensor monitoring, and more.

Inputs:

• Sequential Port Injection – Supports up to 8 injectors with fault-sensing feedback
• 4x Analog Inputs – Compatible with 0-5V and 4-20mA sensors
• 2x Frequency Inputs – Accepts signals up to 10kHz and 20kHz
• Dedicated Flex Fuel Input – Reads ethanol content for real-time flex fuel tuning
• MAP, Cam, and Crank Sensor Inputs – Essential for engine timing and load calculations

Outputs:

• 4x Low-Side Auxiliary Outputs – PWM or digital ground triggers for methanol injection, nitrous, boost control, fuel pumps, and more
• 12V Switched Outputs – Power additional components with multiple ignition-switched voltage outputs

OEM-Level Integration & Flash Tuning Compatibility

The ReFlex+ seamlessly integrates with leading flash tuning platforms, including MHD, MG Flasher, and EcuTek, allowing the factory ECU to directly control ReFlex+ functions with built-in safety measures.

Fully programmable through TunerPro RT, the ReFlex+ supports universal and vehicle-specific configurations. Free starter maps and setup guides are available on our website, with additional support available through support@motivmotorsport.com.

Unlock the Full Potential of Your Build

Whether you're looking for precise auxiliary fuel control, advanced sensor monitoring, or the ability to control performance aftermarket components, the ReFlex+ delivers unmatched versatility.

NOTE: This offering only includes the control unit. It does not include any harnesses, installation kits, etc. To order a complete ReFlex+ Advanced I/O Integration kit (controller with vehicle harnesses) click here.

Genuine Continental (VDO) Flex Fuel E85 Sensors are used to measure the ethanol to gasoline ratio of the fuel being used in a vehicle. Flexible fuel vehicles can be operated with a blend of ethanol and gasoline depending on the vehicles fuel lines, injectors, and ECU calibration.

The flex fuel sensor uses quick-connect style fuel connections for the incoming and outgoing fuel connections. Installed in your main fuel feed line, all fuel passes through the flex fuel sensor before continuing on to the fuel rail. The flex fuel sensor measures the fuel alcohol content, and sends an electrical signal to an ethanol content analyzer in order for the DME or ECU of the vehicle to receive an ethanol percentage.

Please Note: Both inlet and outlet connections on the sensor are 3/8" SAE sized fittings.

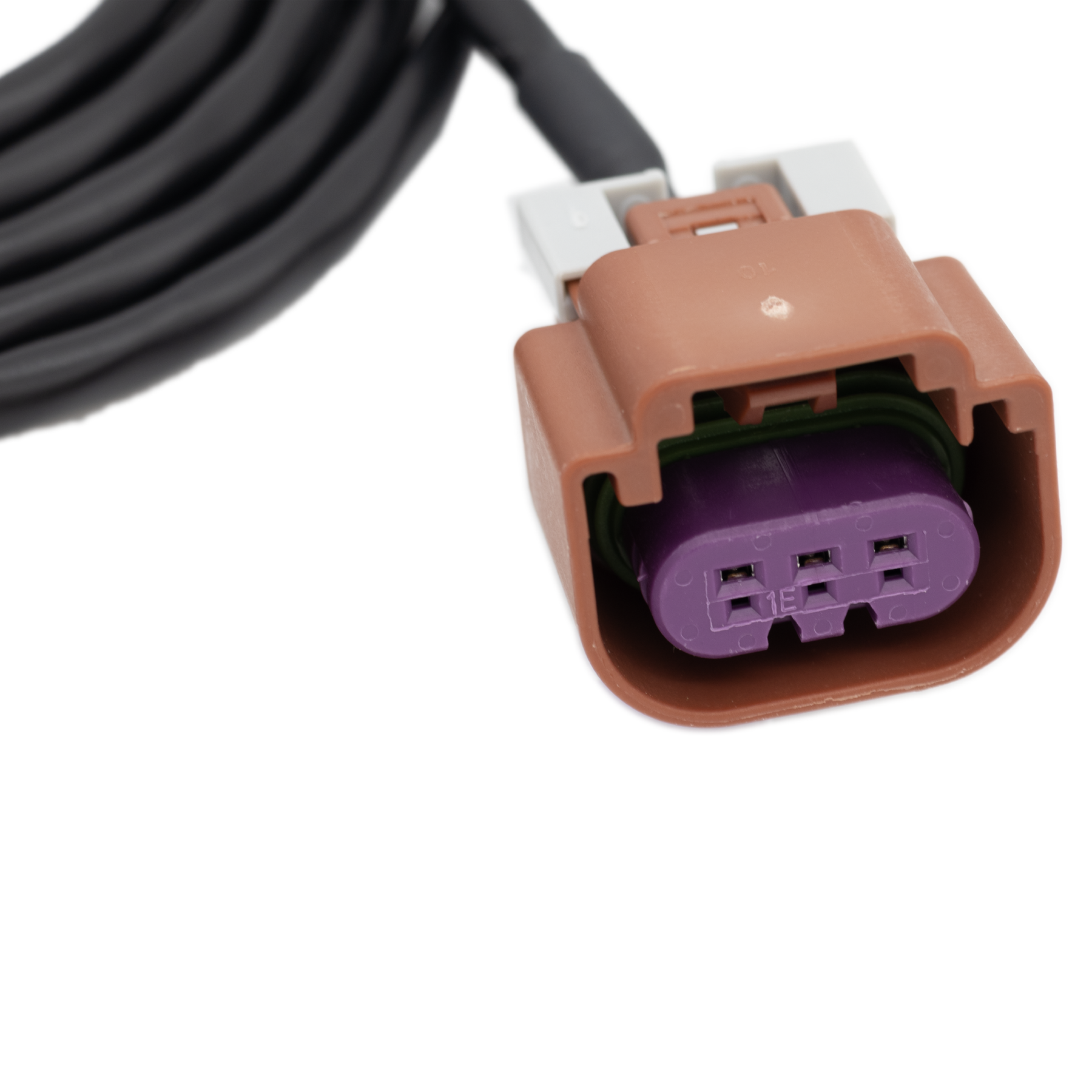

Simplify the installation of an Ethanol Content Sensor with our Plug-n-Play Ethanol Sensor Harness, designed for seamless integration with the ReFlex+ and FlexFuel+ systems. This harness makes it easy to connect an ethanol content sensor, unlocking the ability to monitor real-time ethanol levels and enabling full DME/ECU adjustments for enhanced automotive performance.

Please Note: This does NOT include an ethanol Content Sensor.

The ReFlex+ is an advanced integration module for performance vehicle tuning and auxiliary component control. With multiple patented technologies, the ReFlex+ is more than just an auxiliary injector controller. It offers advanced features typically found in high-end ECUs—at a fraction of the price. The ReFlex+ is designed to run in multiple control configurations from standalone tuning to full CAN Bus integration and offers unparalleled precision, flexibility, and performance.

Advanced Control Strategies

• Standalone Mode – No CAN Bus communication required
• Integrated CAN Bus – Compatible with MHD, EcuTek, MG Flasher, BM3 and any other tuning platform with the ability to receive and/or send CAN Bus messages.
• Advanced CAN Bus – Full integration with EcuTek and MHD+

Precision Sequential Port Injection & More

Originally developed to modernize port fuel injection, the ReFlex+ goes beyond traditional batch-fire controllers by delivering true sequential fuel injection. This ensures fuel is injected at the optimal moment for maximum efficiency, power, and reliability. But it doesn’t stop there—the ReFlex+ is a complete IO control hub designed for performance-driven applications.

Versatile Inputs & Outputs

The ReFlex+ is equipped with a range of inputs and outputs to support flex fuel tuning, boost control, sensor monitoring, and more.

     Inputs:

• Sequential Port Injection – Supports up to 8 injectors with fault-sensing feedback
• 4x Analog Inputs – Compatible with 0-5V and 4-20mA sensors
• 2x Frequency Inputs – Accepts signals up to 20kHz
• Dedicated Flex Fuel Input – Reads ethanol content for real-time flex fuel tuning
• MAP, Cam, and Crank Sensor Inputs – Essential for engine timing and load calculations

     Outputs:

• 4x Low-Side Auxiliary Outputs – PWM or digital ground triggers for methanol injection, nitrous, boost control, fuel pumps, and more
• 12V Switched Outputs – Power additional components with multiple ignition-switched voltage outputs

OEM-Level Integration & Flash Tuning Compatibility

The ReFlex+ seamlessly integrates with leading flash tuning platforms, including MHD, EcuTek, and MG Flasher allowing the factory ECU to directly control ReFlex+ functions. In addition, built-in safety measures are in place to help protect your investment.

Fully configurable through TunerPro RT, the ReFlex+ supports universal and vehicle-specific configurations. Free starter maps and setup guides are available on our website, with additional support available through support@motivmotorsport.com.

Unlock the Full Potential of Your Build

Whether you're looking for precise auxiliary fuel control, advanced sensor monitoring, or the ability to control performance aftermarket components, the ReFlex+ delivers unmatched performance and versatility.

Take your tuning to the next level with the MOTIV ReFlex+ Advanced IO Integration—engineered for power, precision, and reliability.

INCLUDED IN THIS KIT:

1. ReFlex+ Control Unit
2. ReFlex Main Injector Harness - Inline-6
3. ReFlex Install Harness - Flying Lead

We recommend the following accessories when purchasing a ReFlex+ to integrate on your vehicle:

1. 0-10 Bar Pressure Sensor
2. Ethanol Content Sensor and Plug-n-Play Ethanol Sensor Harness

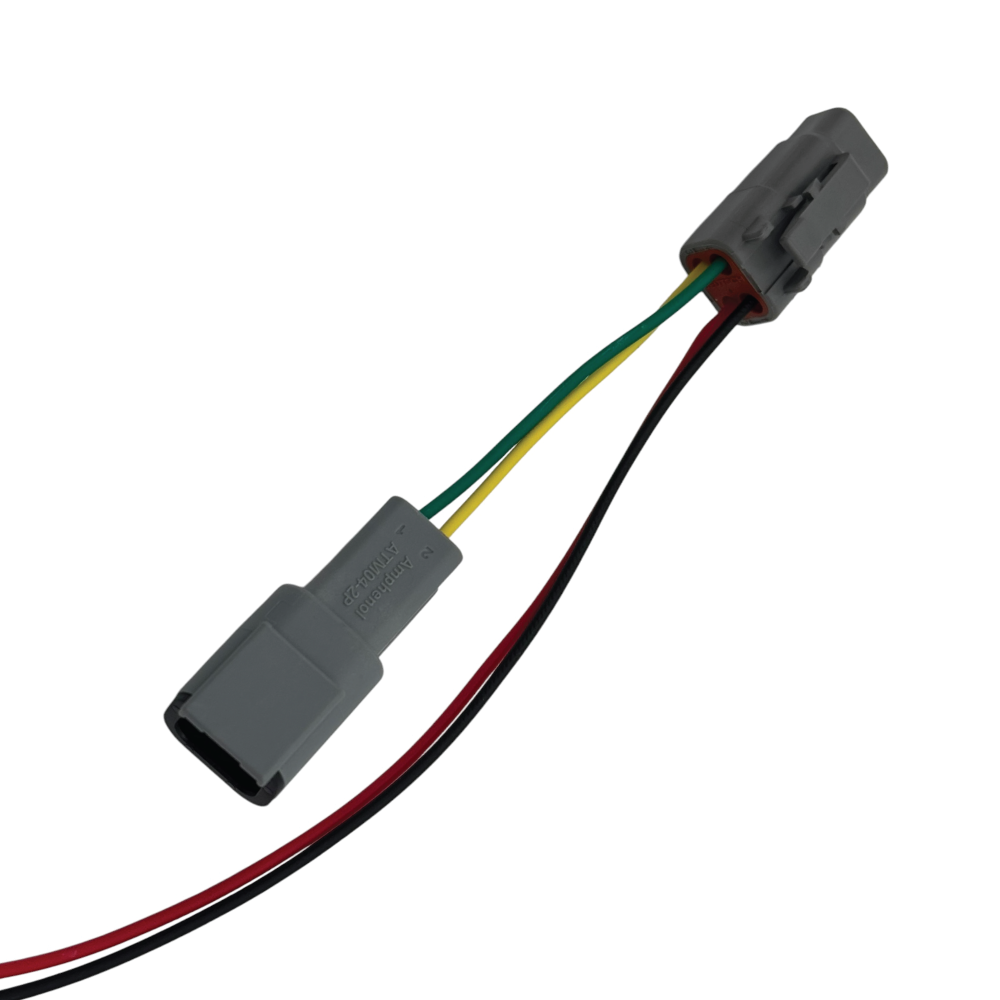

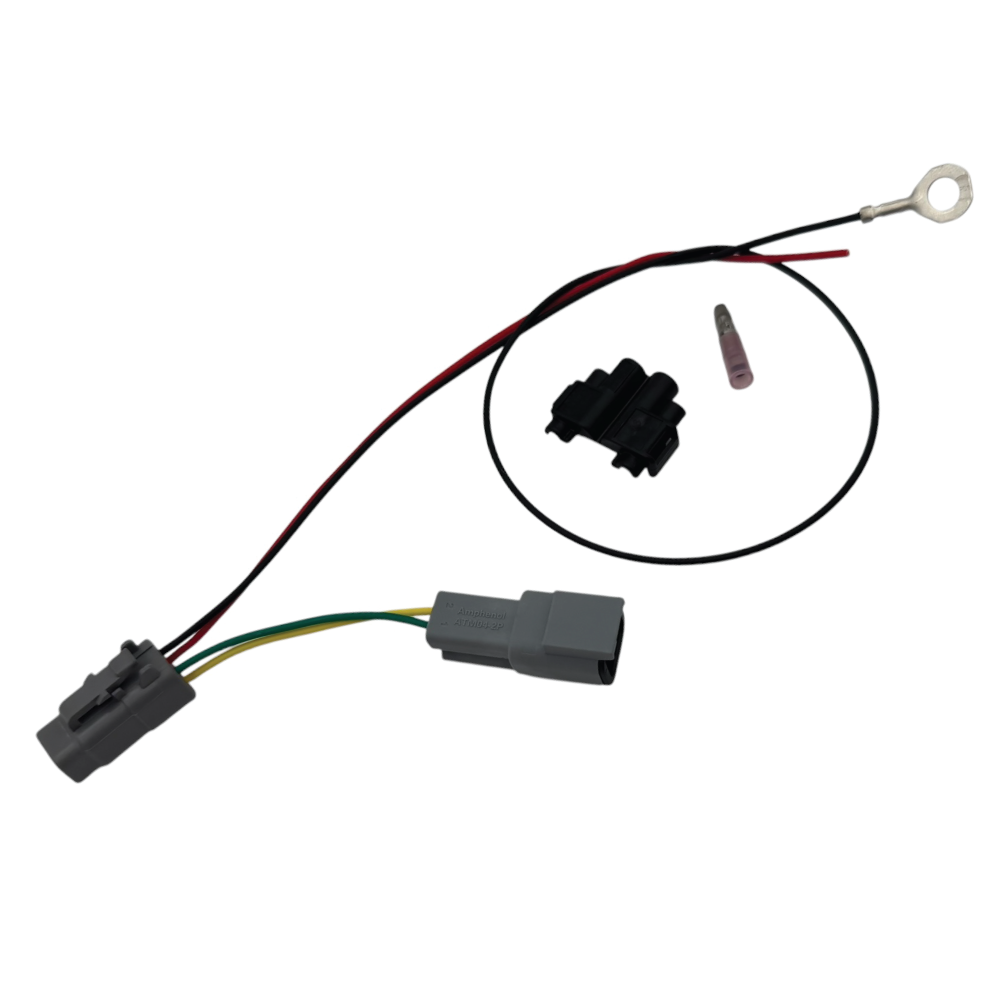

This harness connects to the FlexFuel+ Power and CANBus Harness so you can chose from our vehicle-specific options for a tailored installation or opt for the universal harness, designed to work with ANY vehicle for ultimate versatility.

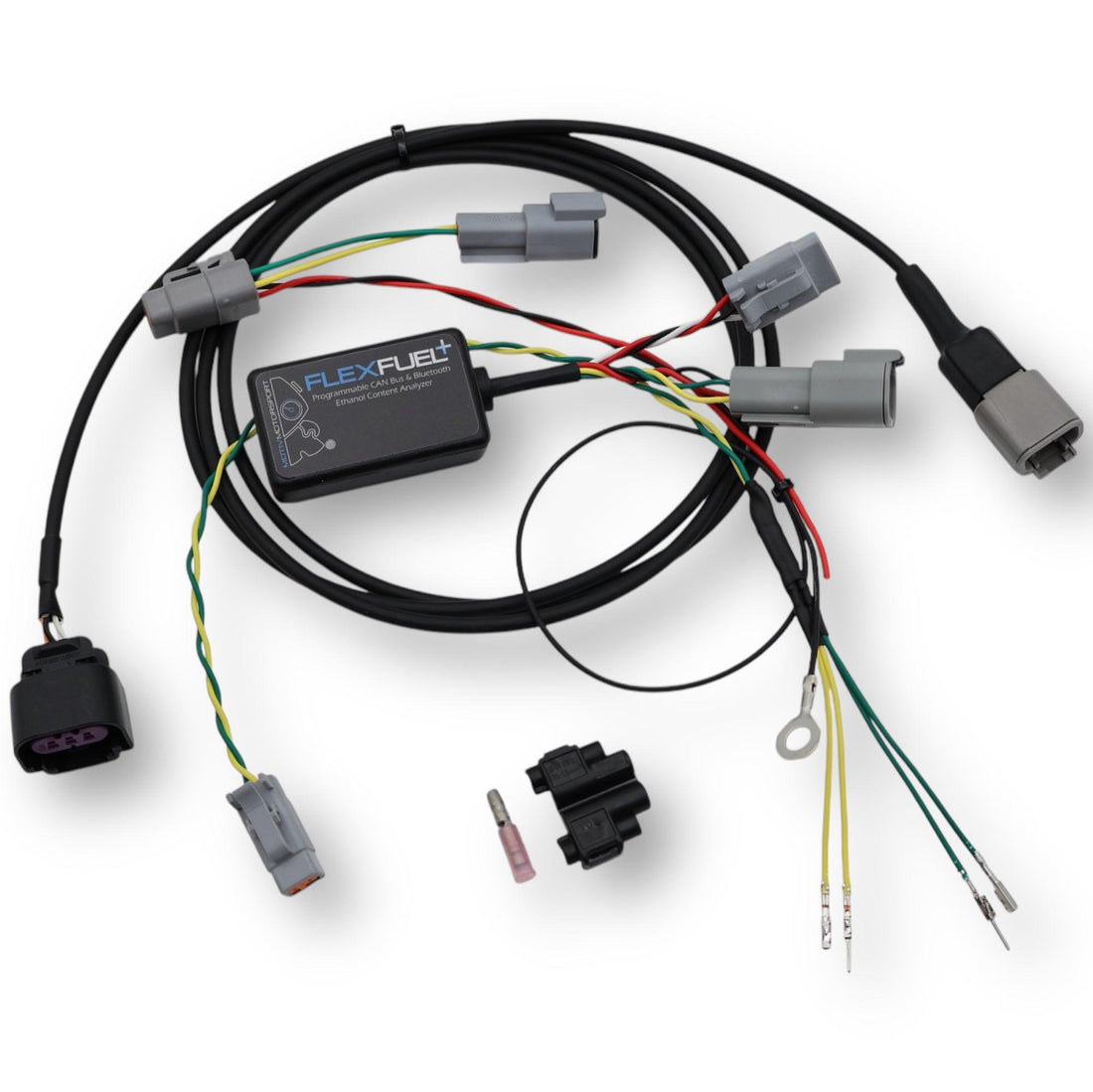

Take the guesswork out of ethanol blends with MOTIV FlexFuel+

Are you tired of manually testing ethanol content at the pump or constantly reflashing your ECU when switching between fuel blends like pump gas and E85? Say goodbye to the hassle and hello to effortless precision with the FlexFuel+ CAN Bus & Bluetooth Ethanol Content Analyzer Kit.

The FlexFuel+ is a cutting-edge solution designed to analyze your vehicle's ethanol content in real time. Using advanced technology, it measures ethanol concentration and fuel temperature with precision, ensuring optimal performance and efficiency.

Key Features:

• Real-Time Monitoring: Instantly tracks ethanol content and fuel temperature, giving you up-to-the-second data.
• Bluetooth Connectivity: Access live fuel data effortlessly via Bluetooth Low Energy (BLE) on your mobile device.
• Seamless Integration: Sends data directly to your vehicle's ECU via CANbus for automatic adjustments and peak performance.
• Enhanced Efficiency: Achieve the perfect fuel mix without the need for constant manual intervention.

With MOTIV FlexFuel+ you’ll enjoy seemless transitions between fuel types and enhanced vehicle performance—no more trial and error. Upgrade to smarter ethanol content integration today!

Real-Time Data at Your Fingertips:

• Ethanol Percentage (%): Know your fuel blend instantly.
• Fuel Temperature: Switch between °C and °F to suit your preference.
• Sensor Connection Status: Stay confident in your system’s functionality.
• CAN Bus Status: Keep your communications in check for seamless integration

Advanced Features:

• Over-The-Air (OTA) Firmware Upgrades: Always have the latest features and improvements.
• Live Ethanol Data via CANbus: Ensure your ECU/DME is optimized with precise, real-time data.
• Broad Platform Compatibility: Supports all existing CAN Bus platforms on any vehicle with known CAN Bus ID.
• Custom Configuration: Easily setup the CAN Bus communication settings using Bluetooth Low Energy (BLE) on the MOTIV App.
• Adaptable Ethanol Signal Circuit: Perfect for both new and existing setups.

The MOTIV App will be available soon in the AppStore and PlayStore.  Visit the respective store for details on the latest updates and device compatibility.

Includes:

• FlexFuel+ Ethanol Content Analyzer
• FlexFuel+ Wiring Harness
• FlexFuel+ CAN Bus Connection (Select Option)
• FlexFuel+ Plug-n-Play Ethanol Sensor Harness

MOTIV FlexFuel+ Full Documentation and Support
