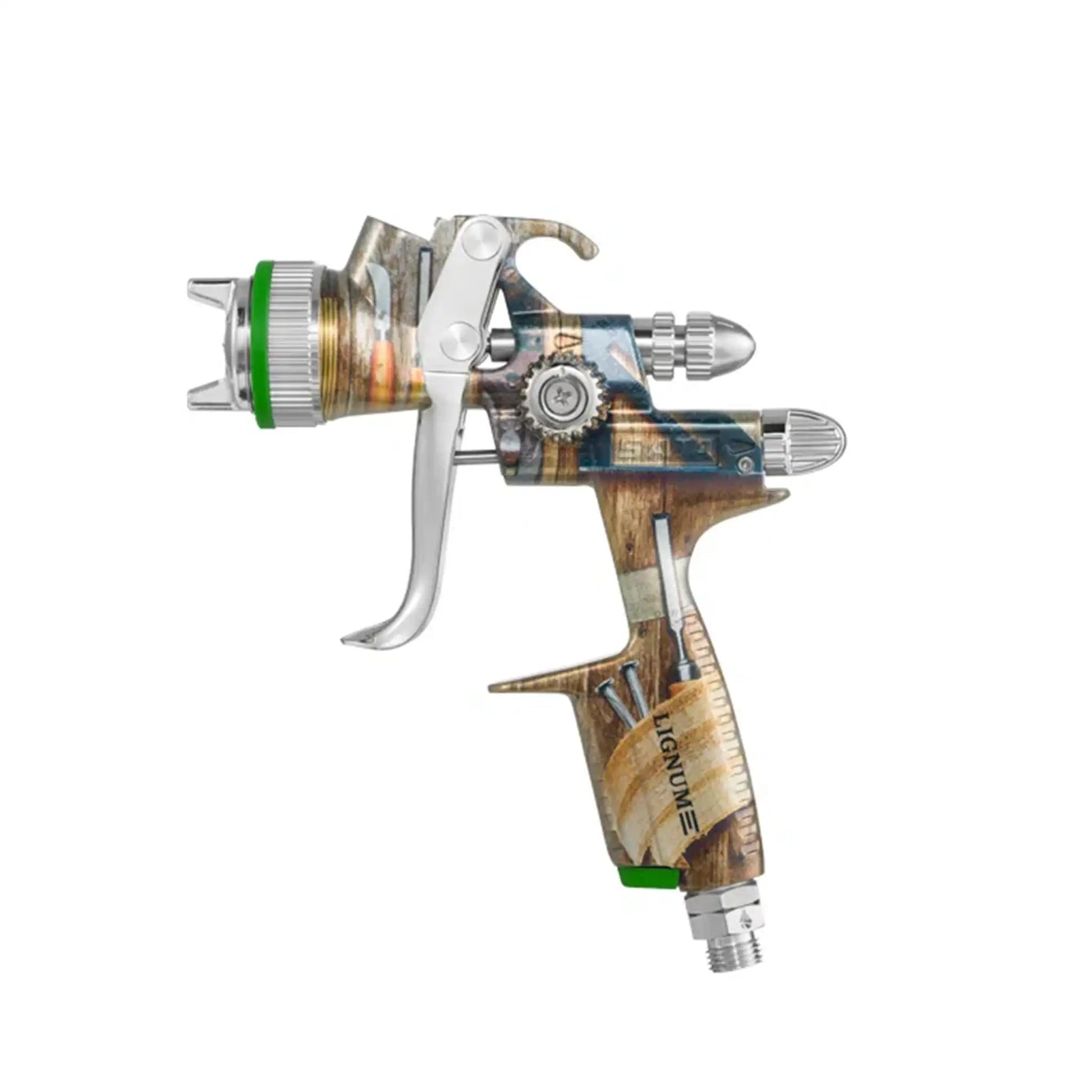

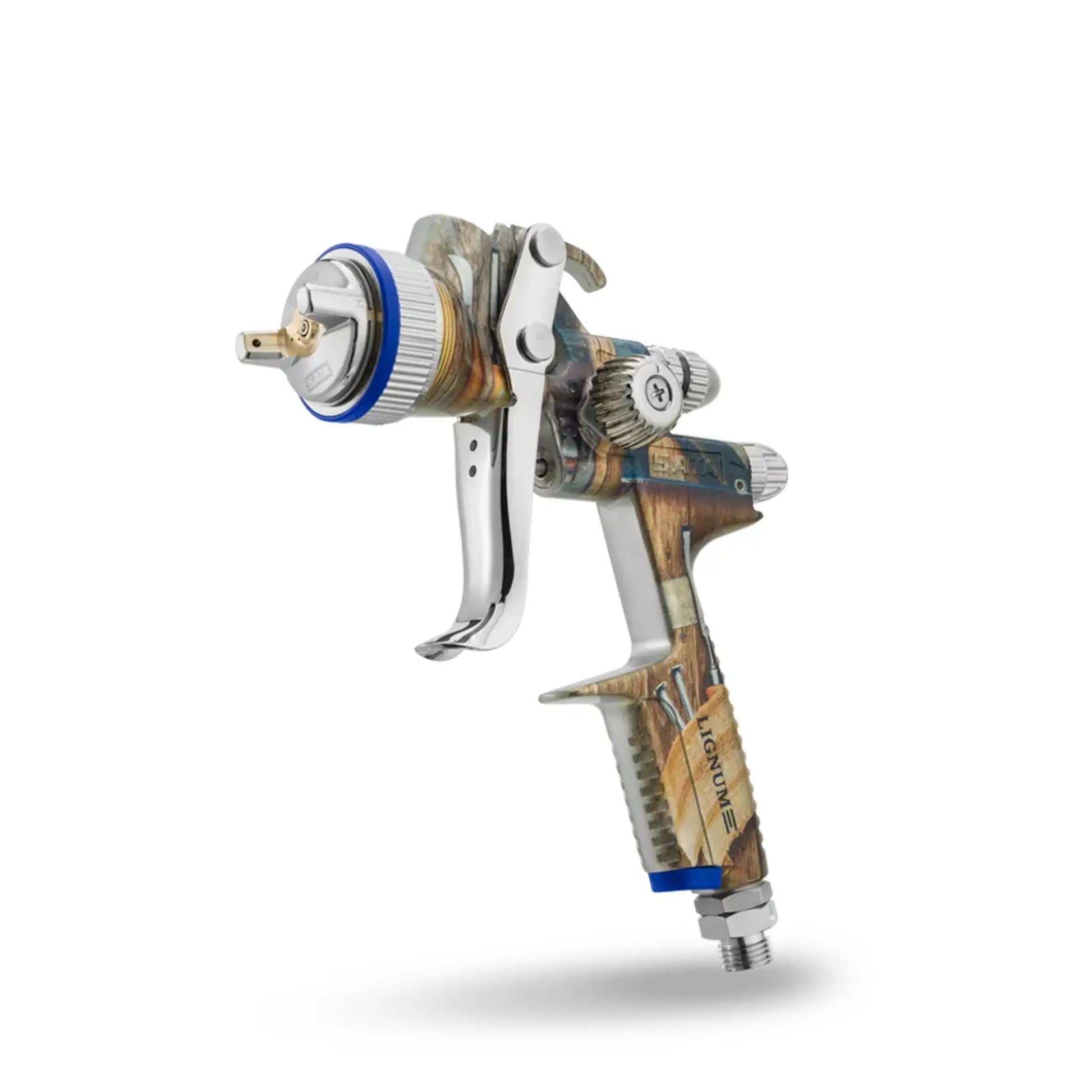

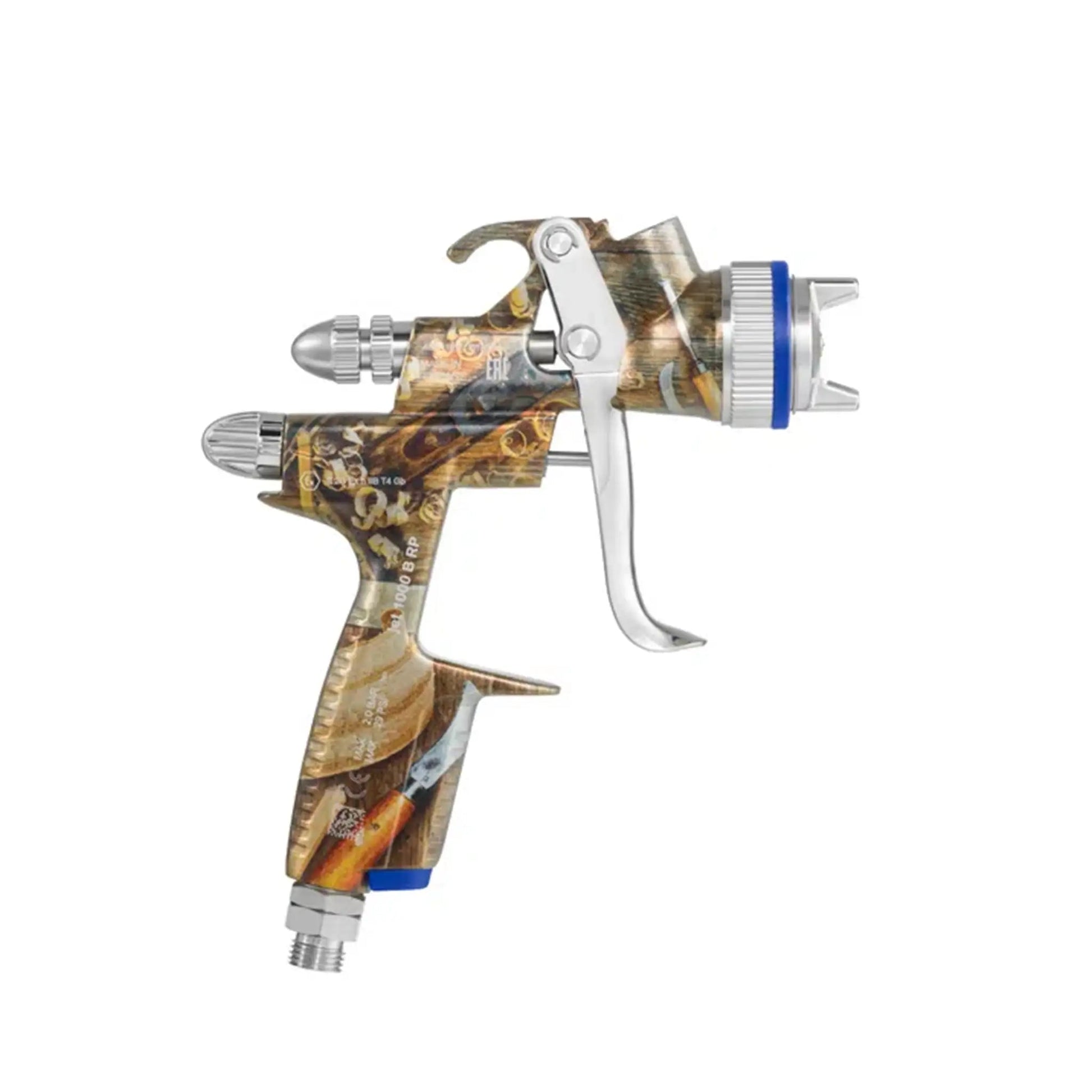

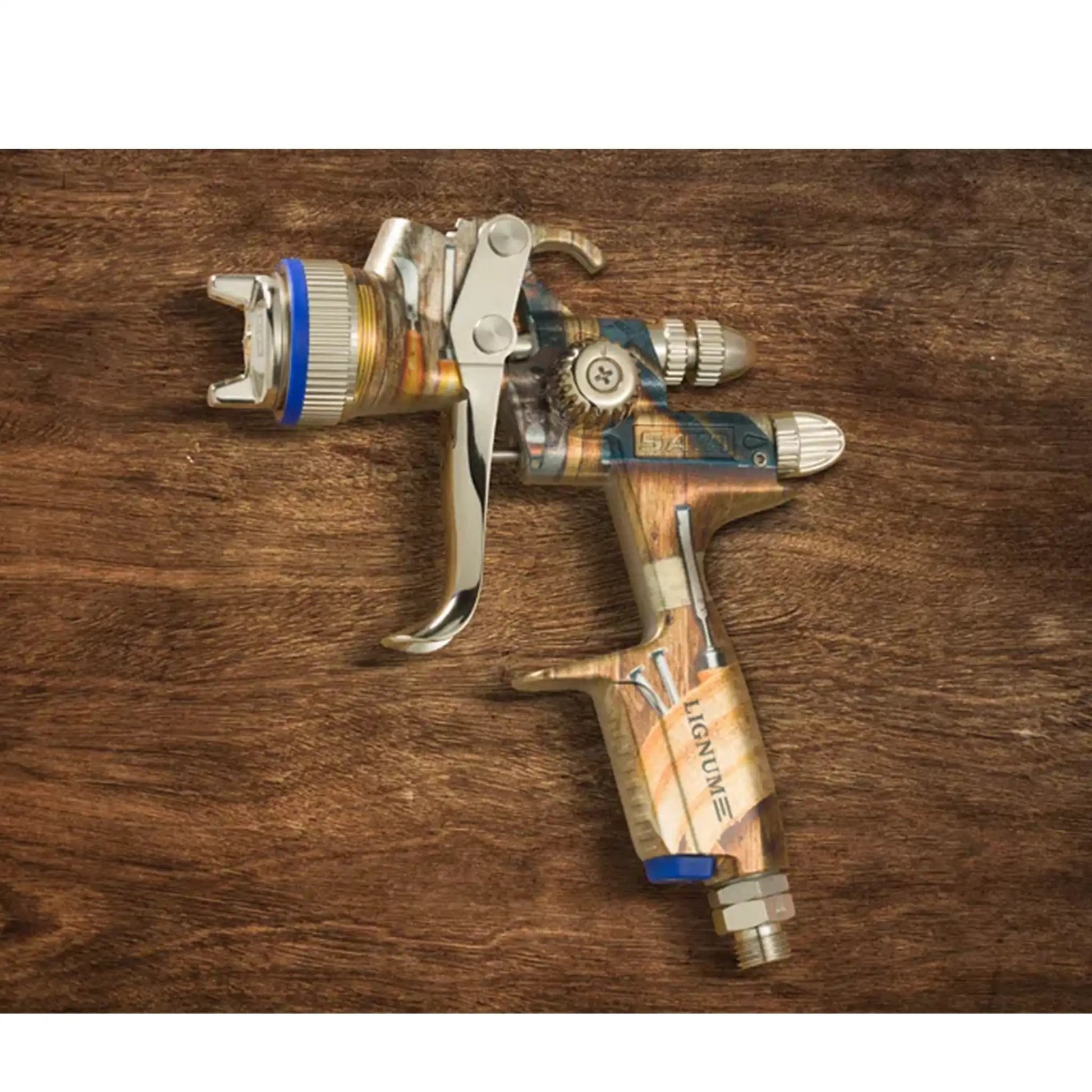

SATAjet 1000 B Lignum 3 w/ 0.6L Cup

Perfect for Industrial and Wood finishing.

Wood finishing requires a profound understanding of the different types of wood for a perfect surface texture. On top of that, it requires experience as well as the perfect tool. With the SATAjet 1000 B Lignum 3, the carpenter has the best tool to give his workpiece the final touch and to achieve a perfect finish.

This robust and easy to clean universal spray gun is tailor-made for the wood finishing industry. Its comprehensive selection of nozzle sizes ranging from 0.8 to 5.0 and the availability of pressurized as well as agitator cups allows the application of a large spectrum of different paint materials: from low-viscosity wood stains, single stage materials and clear coats to thick film stains, glues and thixotropic materials.

Product Benefits

• Suitable for the application of various materials – waterborne or solvent-based
• Sturdy, easy clean surface
• Special nozzle sets for the application of different materials, such as adhesives, textured paints, etc.
• The use of extensions from 20 – 300 cm with different spray angles is possible for special applications

Suitable Areas Of Application

• Industrial Applications

• Carpentry

• Decorative Painting

• Yacht and Boat Building

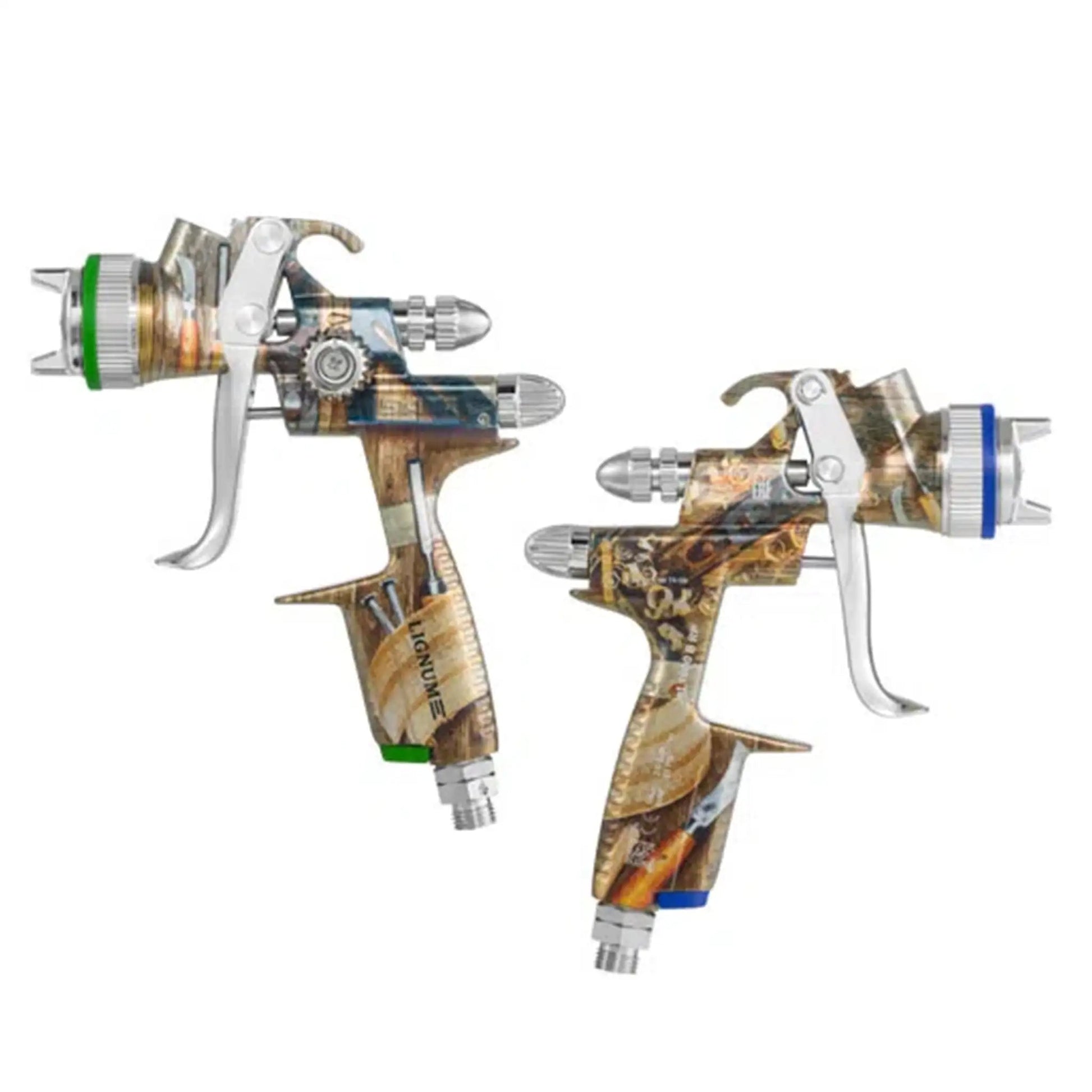

Two paths to the perfect result: HVLP and RP

• RP: Extra Fast - RP spray guns stand for maximum working speed with optimized high-pressure technology and low overspray.
• HVLP: Extra Economical - HVLP paint spray guns achieve particularly high transfer rates with their low-pressure technology.
• Both variants can be used very flexibly, meet the highest demands on the painting result and clearly exceed the transfer rates of 65 % required by the VOC directive.



More Information:

SATAjet 1000 B Lignum 3

Material Versatility: Comprehensive nozzle size range (0.8 – 5.0 mm) and both pressurized and agitator cup options handle everything from low‑viscosity wood stains and clearcoats to thick‑film stains and thixotropic glues.

Robust, Anodized Body: Lightweight anodized aluminum construction delivers exceptional corrosion resistance and durability, while remaining easy to clean after every job.

Lightweight Ergonomic Design: Ergonomically formed handle and balanced gun body reduce painter fatigue, ensuring comfortable, extended use even in demanding applications.

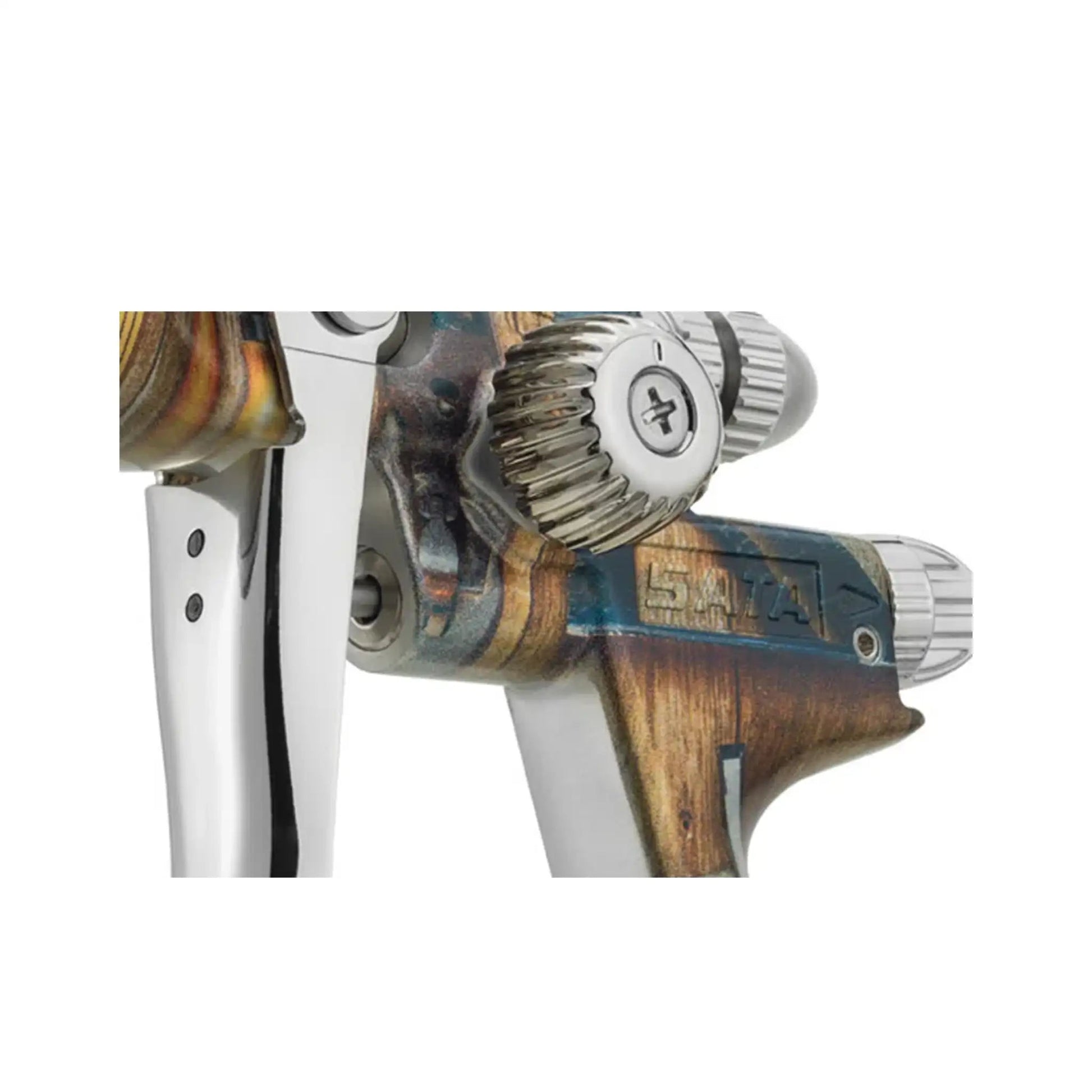

Precision Fan & Flow Control: Integrated round/flat fan control with half‑turn adjustment, material flow valve and air micrometer enable exact tuning of spray pattern and film build.

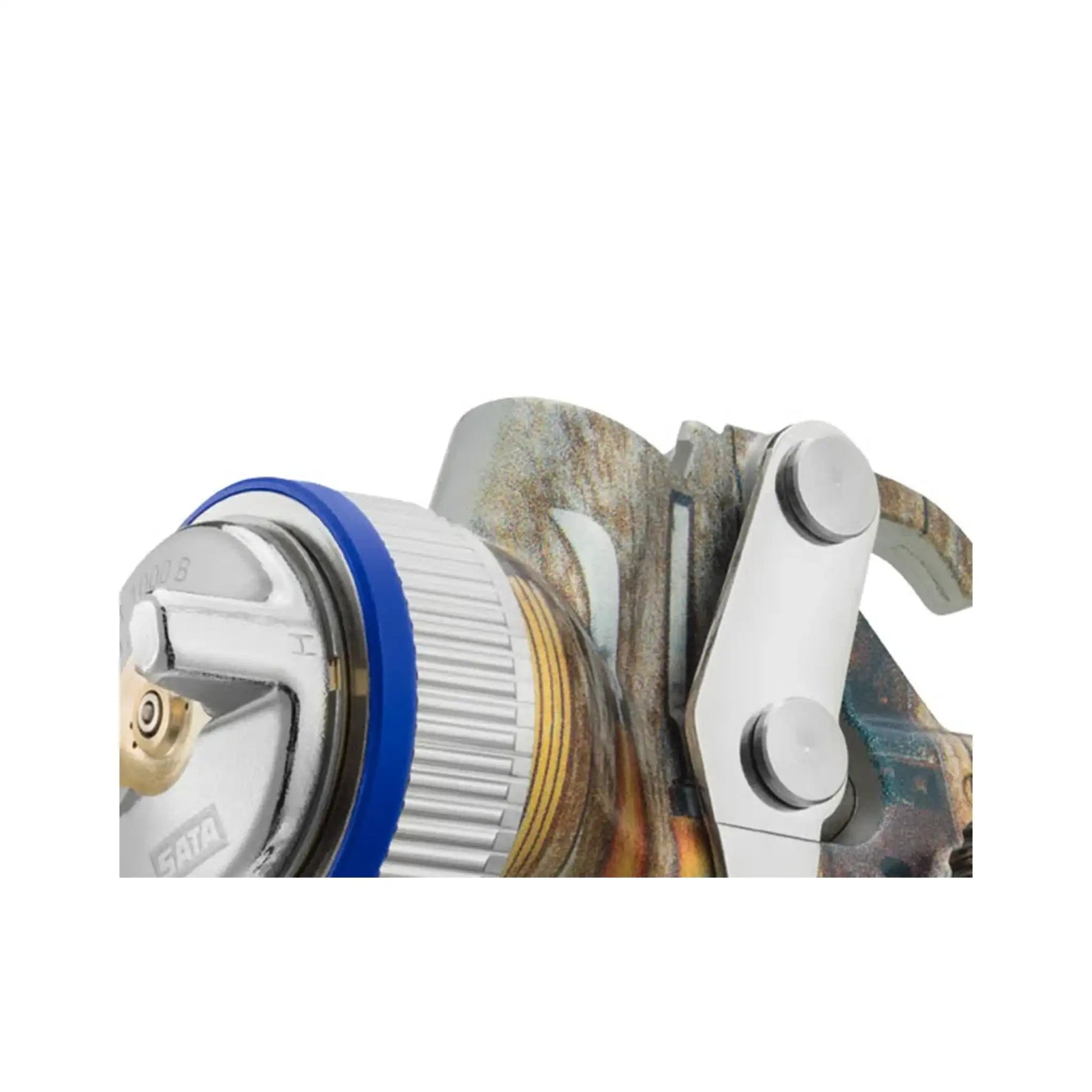

Anti‑Overspray Air Cap: Special air‑cap horn passages prevent material accumulation on the cap, maintaining consistent atomization and a flawless finish.

Smooth Fluid Passages: Large, smooth internal channels minimize clogging and streamline cleaning between colour changes for uninterrupted workflow.

Maintenance‑Free Sealings: Self‑adjusting seals ensure leak‑tight performance without manual tensioning or part replacement, reducing maintenance downtime.

QCC® Cup Connection: Quick‑bayonet QCC system accommodates 600 ml pressurized or agitator cups for fast, tool‑free colour swaps.

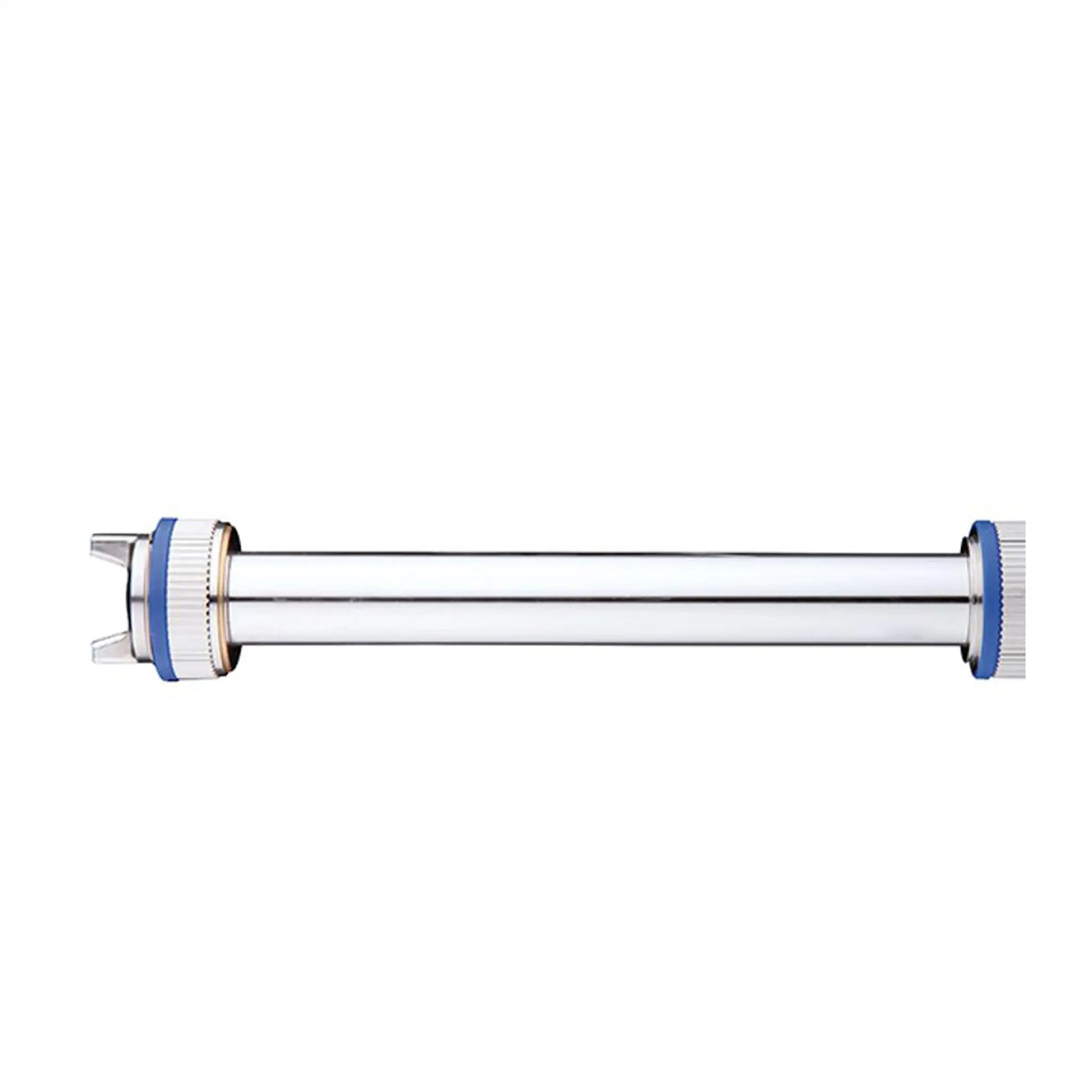

Extension Capability: Compatible with extensions from 20 cm up to 300 cm and various spray angles, allowing access to hard‑to‑reach and intricate areas.

Which to choose?

• HVLP –  Choose HVLP for ultra‑fine finishes, high transfer efficiency (exceeding 65 % per VOC directive) and economical material usage on sensitive wood surfaces.

• RP –  Choose RP for maximum spray speed and heavy‑build applications, with optimized high‑pressure performance and reduced overspray on large‑area projects.
