A high flow catted downpipe is the compromise part that actually works: more flow and sound than stock, while a real catalytic converter stays in the exhaust. The catch is that "high flow" means nothing on its own. The cell count, the substrate material and the heat rating decide whether you get a crisp, clean-smelling car or a check engine light and a melted brick a year later. This guide explains what to look for, then shows where the Vorsprung EA825 High-Flow Catted Downpipe and our 3.0T high flow cats fit in.
What Is a High Flow Catted Downpipe?
On a turbocharged engine like the EA825 4.0T V8, the downpipe is the first pipe after each turbo, and the factory version carries a catalytic converter inside it. A high flow catted downpipe replaces that assembly with larger, smoother tubing and a less restrictive converter. Compared with the factory part you get lower backpressure, quicker turbo response and a louder, fuller tone. Compared with a catless pipe you keep a converter doing its job, which means less smell, a far better chance of a quiet dashboard and a much stronger position at inspection time.
The supercharged 3.0T V6 has no turbo, so its equivalent is a set of high flow catalytic converters that bolt to the exhaust manifolds. Same idea, different location. Our Audi 3.0T downpipes guide explains that layout in detail.
Cell Counts Explained: 200 Cell vs 400 Cell
A catalytic converter core is a honeycomb. "Cell count" is how many channels run through each square inch of it. More cells means more coated surface for the exhaust to touch, so better cleaning, but also more resistance to flow. Fewer cells flow more but give the gas less surface to react with.
- 200 cell: the enthusiast pick. Least backpressure and the most sound, while still dense enough to knock down odor and smooth out rasp.
- 400 cell: the stealth pick. More filtration and a more factory-like tone, with a modern high-flow design that does not choke a tuned engine the way older dense cats could.
- Factory cats: built for fast light-off and long-term emissions compliance on a stock tune, not for the heat and flow of a tuned engine.
Cell count is only half the story. The substrate material matters just as much. Ceramic cores are cheap and brittle and can crack or break apart under heat cycling. Metallic substrates tolerate thermal shock and vibration far better, which is why every Vorsprung catted part uses metallic cores.
Check Engine Lights and Emissions: the Honest Version
Your ECU watches the converter with a downstream oxygen sensor. A healthy cat stores oxygen and smooths out the signal. If the downstream reading starts looking like the upstream one, the ECU decides the catalyst is not working and sets an efficiency code, typically P0420 for bank 1 or P0430 for bank 2.
A good high flow catted downpipe with a quality metallic core is designed to keep that signal in check, and our EA825 catted downpipes are built to run CEL-free. Real-world results still depend on your tune, your cell count and the car, so here is the fine print nobody else prints:
- A tune helps. On a tuned 4.0T, your tuner can account for the new hardware. On a stock tune, 400 cell is the safer bet.
- O2 spacers are not a legal loophole. Our Euro 6 O2 Spacers carry a real catalyst core to help sensor readings behind a high flow cat, but using any spacer to hide a missing or dead converter on a street car counts as tampering under EPA policy.
- Legality is local. In the US, replacing a factory converter on a road car generally requires a replacement that is certified for that vehicle, and in California an aftermarket converter needs a CARB Executive Order for your exact car. If a part does not list one, assume it is not California legal. Our high flow catalytic converter legality guide covers the details.
What to Look For in a High Flow Catted Downpipe
- ✅ Metallic substrate with a disclosed cell count and heat rating.
- ✅ Full-diameter flow path that does not neck down to OEM size at the ends.
- ✅ Thick flanges (ours are 10mm, reinforced inside and out) so they do not warp and leak.
- ✅ TIG welded, back purged joints and double-walled pipe ends to resist cracking.
- ✅ Heat shielding to protect nearby components and cut heat soak.
- ✅ Honest fitment tables by chassis and engine code, not "fits most Audis."
Vorsprung vs the Alternatives
In short: our catted downpipes use metallic 200 or 400 cell cores, 2.0mm 304L stainless, 10mm flanges and included heat shielding. Many kits on the market use cheaper ceramic cores or never disclose the substrate at all. The dealer part is the same restrictive design that just failed, at full Audi Tax pricing.
| Feature | Vorsprung | Typical name-brand option | Dealer/OEM |
|---|---|---|---|
| Catalyst core | Metallic, 200 or 400 cell | Often ceramic or undisclosed | Dense factory core |
| Wall thickness | 2.0mm 304L stainless | Often thinner | Factory spec |
| Flanges | 10mm, reinforced | Varies | Factory spec |
| Heat shielding | Included, quartz-lined option | Often extra or none | Factory shields |
| Flow gain over stock | Large | Varies | None |
✅ Metallic 200/400 cell catalysts ✅ Fitment help from real 4.0T and 3.0T owners ✅ Made to order for your platform
Shop the EA825 High-Flow Catted Downpipe, $1,799.99
Vorsprung High Flow Catted Parts by Platform
EA825 4.0T: C8 RS6, RS7 and D5 A8, S8

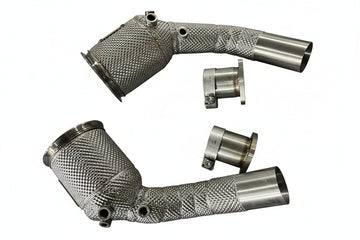

The high-flow catted downpipe for C8 RS6/RS7 and D5 A8/S8 comes in 200 or 400 cell, with standard heat shielding or a dual-layer quartz-lined version for better heat management. Detachable flanges make install easier, and the flow path stays full diameter from top to bottom.
EA825 4.0T: 4M SQ7, SQ8 and RSQ8
SUV owners get the same recipe in the SQ7/SQ8/RSQ8 high-flow catted downpipe. Both EA825 versions are made to order, with a current lead time of about 30 days.
EA837 3.0T supercharged: B8/B8.5, 8R, C7 and D4
On the supercharged V6, the equivalent is our 3.0T High Flow Cats: 200 or 400 cell metallic cores rated to 950C, a full 2.5 inch path and 2.0mm 304L stainless. We recommend 200 cell for the best durability on pulley-swapped cars. Made to order, 14 to 21 days processing.
Install and Care Tips
- Use new gaskets and hardware at every joint; old nuts on turbo and manifold studs love to seize.
- Let a fresh converter heat cycle a few drives before judging smell or readiness monitors.
- Skip crackle and burble maps and ignition-cut launch control. They dump unburnt fuel into the converter and void the warranty on our cats.
- Clear codes and let readiness monitors complete before any inspection.
Still weighing catless? Our head-to-head catless downpipe vs catted comparison covers power, sound, smell and resale.
High Flow Catted Downpipe FAQ
What is a high flow catted downpipe?
It is a downpipe with a less restrictive catalytic converter built in. You get more flow and sound than the factory part while a working converter stays in the exhaust.
Will a high flow catted downpipe throw a check engine light?
It can, depending on cell count, substrate quality and tune. A quality metallic 200 or 400 cell core is designed to keep catalyst efficiency readings in range, and a tune that accounts for the hardware helps further.
Is 200 cell or 400 cell better?
200 cell flows more and sounds louder. 400 cell cleans more and sounds closer to stock. On a stock tune or a car that sees inspections, 400 cell is the conservative choice.
Do I need a tune with a high flow catted downpipe?
On the EA825 4.0T a tune is recommended to get the full benefit and manage readings. Our 3.0T high flow cats do not require a tune on their own.
Is a high flow catted downpipe street legal?
It depends on where you live and whether the part is certified for your vehicle. In California, an aftermarket converter needs a CARB Executive Order for your exact car. Check local rules before you buy.
Does a high flow catted downpipe smell?
Much less than catless. A metallic 200 or 400 cell core burns off most of the raw fuel smell that catless setups are known for.
How long does a high flow catted downpipe last?
A metallic core with a proper heat rating lasts far longer than cheap ceramic units, as long as you avoid crackle tunes, ignition-cut launch control and misfires that overheat the catalyst.
Bottom Line on the High Flow Catted Downpipe
A high flow catted downpipe is the right call for most tuned Audis that still wear license plates. Pick a metallic core, choose 200 cell for sound or 400 cell for stealth, and match it to your tune. For the RS6, RS7, A8 and S8, the Vorsprung EA825 High-Flow Catted Downpipe checks every box.
Shop the EA825 High-Flow Catted Downpipe, $1,799.99
Drive the difference. Drive Vorsprung.
Prices checked September 25, 2026 and subject to change.
