Two Audis, both wearing quattro badges, can put power down in completely different ways. That is the whole Torsen vs Haldex question in one sentence. A longitudinal-engine Audi like a B8 S4, C7 A6 or Q7 uses a mechanical center differential (Torsen, or the later crown-gear unit) that drives all four wheels all the time. A transverse-engine Audi like an A3, S3, TT or Q3 uses a Haldex clutch coupling that sends torque to the rear axle when it is needed. Neither one is "fake quattro," but they feel different, age differently, and respond differently to more power.
At Vorsprung we live on the longitudinal side of that line, so this guide also shows how to take the slop out of a quattro driveline with parts like our billet rear differential carrier inserts for B8, B8.5 and C7.
Torsen vs Haldex: How Each System Works
Torsen and crown-gear: permanent mechanical quattro
Torsen is short for "torque sensing." It is a gear-type limited-slip differential: helical gears inside the center diff resist speed differences between the front and rear outputs, so when one axle starts to lose grip, more torque goes to the axle that has it. No clutches, no pump, no waiting. Audi started using Torsen center differentials in the late 1980s, and the Type C unit arrived with the B7 RS4, running a nominal 40:60 front-to-rear split that gives longitudinal Audis their rear-leaning feel.
In early 2010 the RS5 debuted Audi's own crown-gear center differential. According to Audi's technology portal, it also runs 40:60 normally and can send up to 70 percent of torque to the front or up to 85 percent to the rear when grip changes. It is lighter and more compact than the Torsen it replaced, and it spread to many longitudinal Audis with manual and S tronic dual-clutch gearboxes. Many tiptronic (torque-converter automatic) models kept a Torsen center diff. Either way, the principle is the same: permanent, mechanical, always-on all-wheel drive.
Haldex: on-demand clutch coupling for transverse cars
Transverse Audis are front-drive cars at heart, with the engine sideways and the gearbox beside it. There is no room for a longitudinal-style center diff, so Audi (like VW) uses a Haldex coupling: an electronically controlled wet multi-plate clutch at the rear axle, with its own pump and fluid. The control unit reads wheel speed, throttle, steering and stability data and clamps the clutch to send torque rearward. Haldex arrived at Audi in the late 1990s on the first TT quattro and A3 quattro and has gone through several generations since. Newer versions pre-load the clutch so the rear axle joins in quickly, but the car still starts from a front-biased baseline.
The twist: quattro ultra
Here is where many comparison articles get it wrong. Since 2016, many longitudinal Audis with four-cylinder engines, like a lot of B9 A4, A5 and Q5 models, use quattro with ultra technology instead of a mechanical center diff. It uses a multi-plate clutch at the transmission output plus a decoupling clutch in the rear differential, and runs in front-wheel drive until the system predicts it needs the rear axle, as described on Wikipedia's quattro overview. So "longitudinal" does not always mean "Torsen." The S and RS models are where the permanent mechanical systems live.
Torque Split and Driving Feel Compared
On a dry on-ramp, the difference is subtle. On a wet corner exit, it is not. A Torsen or crown-gear car already has the rear axle working when you roll into the throttle, so it feels planted and pushes out of the corner. A Haldex car starts front-led and adds rear torque as the clutch engages, which feels more like a very grippy front-driver with help from behind. Repeated hard launches are the other big split: gears do not care about heat, while a clutch-based coupling has to manage it.
| Trait | Torsen / crown-gear quattro | Haldex quattro |
|---|---|---|
| Engine layout | Longitudinal | Transverse |
| Hardware | Mechanical center differential | Electro-hydraulic multi-plate clutch at rear axle |
| Default behavior | Always AWD, rear-biased (40:60 on later units) | Front-biased, rear engages on demand |
| Response | Instant, purely mechanical | Fast, controlled by software |
| Efficiency | More driveline drag | Less drag in normal driving |
| Service items | Diff fluids, mounts and bushings | Coupling fluid, filter and pump |
| Typical Audis | S4, S5, SQ5, A6/S6, A7/S7, RS models, Q7/SQ7 | A3, S3, TT, TTS, TT RS, Q3 |
One note on RS models: the newest RS3 uses a rear "torque splitter" with two clutches instead of a single Haldex coupling, which lets it push more torque to the outside rear wheel. Different hardware, same transverse family.
Which Audis Use Torsen and Which Use Haldex
Start with one question: is the engine longitudinal or transverse? Then check the trim.
- ✅ Longitudinal, permanent mechanical quattro: B8/B8.5 S4, S5 and SQ5 with the EA837 3.0T supercharged V6, B9 S4, S5 and SQ5 with the EA839 3.0T, C7 A6, S6, A7, S7 and RS7, 4M Q7 and SQ7, plus RS4, RS5 and RS6. Center diff type (Torsen or crown-gear) depends on year and transmission.
- ✅ Longitudinal, quattro ultra: many 2017-on four-cylinder A4, A5, allroad and Q5 models.
- ✅ Transverse, Haldex: A3 and S3 quattro, TT, TTS and TT RS, Q3 quattro and earlier RS3 generations.
If you own an EA837 3.0T car, which is most of our customers, you are on the permanent mechanical side. That is great news for launches and track days, and it means the weak links are not in the diff itself but in the rubber holding everything in place.
Tightening Up a Torsen-Style quattro Driveline
A mechanical quattro drivetrain is a chain: engine, transmission, center diff, propshaft, rear differential, subframe. Audi hangs most of those parts on soft rubber with molded voids so the car feels like a luxury sedan. Add a pulley, a tune or a few years of heat, and that rubber lets everything wind up and bounce. You feel it as clunks on shifts, a vague delay on throttle, and axle tramp on hard launches. The Audi Tax fix is a new factory bushing made from the same soft rubber. Ours is billet.

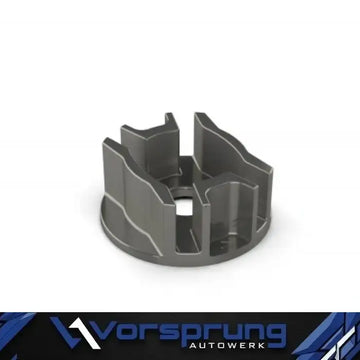

- ✅ Billet rear differential carrier inserts ($44.99) fill the voids in the factory rear diff bushings on B8/B8.5 and C7 quattro cars, reducing rear diff movement under launch and lift-off.
- ✅ Billet subframe inserts for B8/B8.5 or C7 billet subframe inserts ($79.99) fill the subframe mount voids for sharper steering and less rear-end shuffle.
- ✅ TruShift transmission mount ($19.99, B8/B9/4M/D5) or TruShift V2 ($74.99, C7 and 4M Q7/Q8) firm up the gearbox so the center diff sees clean inputs. C7 and 4M owners can also use the billet transmission mount insert ($39.99).
Our Audi transmission mount upgrade guide covers symptoms and fitment in detail. Shop everything in one place in drivetrain components.
✅ Billet aluminum drivetrain inserts ✅ Audi platform fitment help from real 3.0T/4.0T owners ✅ Fast US shipping
Shop the Billet Rear Diff Carrier Inserts, $44.99
Fitment Notes for Our Drivetrain Parts
The rear differential carrier inserts fit B8/B8.5 S4, RS4, S5, RS5, Q5 and SQ5 quattro plus C7 A6, S6, RS6, A7 and S7 quattro. They are for quattro cars only, not front-drive variants. The B8/B8.5 subframe insert kit includes front and rear pairs (the rear pair also fits the Porsche 95B Macan), and the C7 kit covers the A6, S6, RS6, A7 and S7. None of these parts apply to Haldex cars, because the rear driveline layout is different.
Install and Maintenance Tips
- ✅ Diff inserts: you are working at the rear differential mount, so use a lift or solid jack stands and basic hand tools. No cutting or drilling.
- ✅ Do subframe and diff inserts together if you can. They target the same rear assembly, so the result feels more complete.
- ✅ Keep the fluids fresh. Torsen-style cars have gear oil in the front, center and rear drive units; Haldex cars need periodic coupling fluid and filter service. Follow your factory schedule.
- ✅ Match your tires. Any AWD system hates mismatched tire diameters. Replace in sets.
New to the jargon? Our Audi performance parts glossary decodes chassis and engine codes.
FAQ
What is the main difference in Torsen vs Haldex?
Torsen is a permanent mechanical center differential used on longitudinal-engine Audis. Haldex is an electronically controlled clutch coupling on transverse-engine Audis that engages the rear axle on demand.
Is Haldex real quattro?
Audi sells Haldex cars under the quattro name, so yes by badge. Mechanically it is an on-demand system that starts front-biased, unlike the permanent Torsen and crown-gear systems.
Does my B8 or B8.5 S4 have Torsen or Haldex?
Neither is Haldex. The B8 and B8.5 S4 is longitudinal with a permanent mechanical center differential. Depending on year and transmission, it is a Torsen Type C or the later crown-gear differential.
What is the crown-gear differential?
It is Audi's own mechanical center differential, first used on the RS5 in 2010. It runs 40:60 front to rear normally and can shift up to 70 percent to the front or 85 percent to the rear.
What is quattro ultra?
Quattro ultra is a clutch-based on-demand system for longitudinal Audis, common on 2017-on four-cylinder A4, A5 and Q5 models. It runs in front-wheel drive and connects the rear axle when needed.
Which is better for tuning, Torsen or Haldex?
For repeated launches and track use, a permanent mechanical system is more consistent because it has no clutch to heat up. Haldex cars can be tuned well but benefit from attention to the coupling and its software.
Do drivetrain inserts help a Torsen quattro car?
Yes. Billet differential carrier, subframe and transmission mount inserts reduce driveline wind-up and slop, giving cleaner shifts, sharper throttle response and less wheel hop.
Bottom Line on Torsen vs Haldex
The Torsen vs Haldex debate is really longitudinal vs transverse. Torsen and crown-gear cars give you permanent, rear-biased, mechanical grip that loves repeated abuse. Haldex gives you compact, efficient, on-demand AWD. If you drive an EA837 3.0T S4, S5, SQ5, A6, A7 or Q7, you already have the mechanical kind, so make the rest of the driveline as solid as the diff. Start with the billet rear differential carrier inserts and let the quattro system do its job.
Shop the Billet Rear Diff Carrier Inserts, $44.99
