Audi 3.0T Billet Valve Cover Breather Adapter, 19mm to 10AN 90 Degree Quick Connect for PCV Relocation
Vorsprung Billet Valve Cover Breather Adapter for the Audi 3.0T: 19mm to 10AN
Turn Your 3.0T Valve Covers Into AN Fittings
Each valve cover on the supercharged Audi 3.0T has a factory breather port, and Audi built that port for a plastic quick-connect hose. That works fine until you want to run AN lines for a PCV relocation or a catch can. Then you find out there is nothing on the valve cover to thread an AN hose end onto, and the usual answer is a pile of barbs, clamps and adapters stacked on adapters.

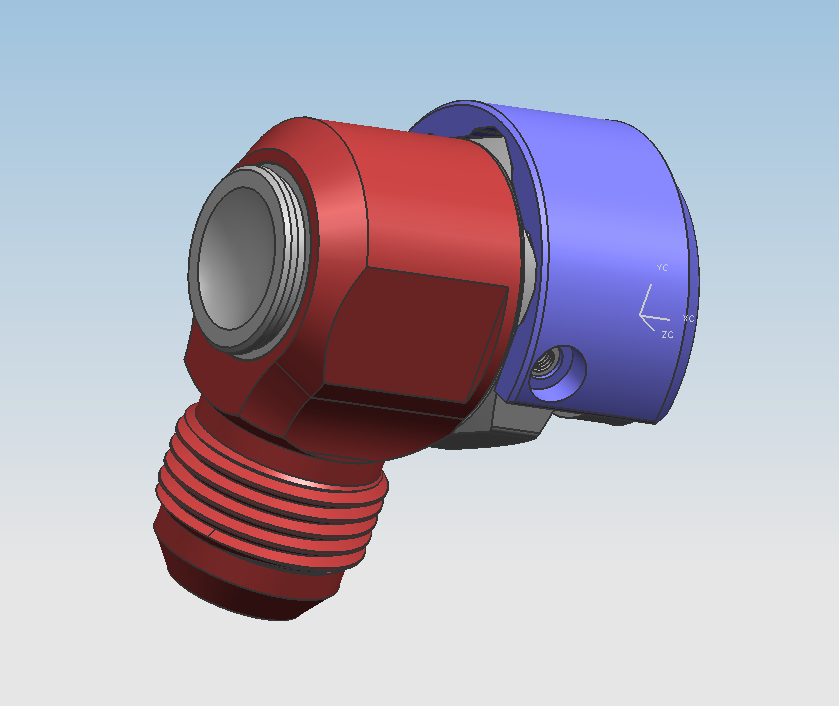

The Vorsprung Billet Valve Cover Breather Adapter skips all of that. It locks into the factory 19mm breather port and gives you a 10AN male fitting with a 90-degree outlet, ready for a 10AN hose end. Put one on each valve cover and your crankcase ventilation runs on AN from the heads on. No cutting, no drilling and no permanent changes to the valve covers.
- ✅ Converts each 3.0T valve cover breather port to 10AN male, so you can plumb the valve covers with AN hose
- ✅ 19mm quick-connect end that locks into the factory valve cover port with no modification
- ✅ 90-degree 10AN outlet for cleaner hose routing off the valve cover
- ✅ Oversized dual Viton O-ring seal for a tight, leak-free fit under heat and oil vapor
- ✅ Billet locking retainer that keeps the adapter seated once it is in
- ✅ Built for the Vorsprung 3.0T PCV relocation with AN lines, and just as useful for custom catch can plumbing
- ✅ Two per car: a 3.0T has two valve covers, so a full conversion takes two Large adapters
Bottom line: two of these and your 3.0T valve covers speak AN, so the PCV relocation or catch can plumbing goes on clean and stays sealed.
Large or Small: Which One Do I Need?
- Large (Audi 3.0T): the valve cover adapter for the supercharged Audi 3.0T. A 3.0T needs two, one per valve cover, so set the quantity to 2.
- Small: not the 3.0T piece. It is a smaller version for other breather ports. Email us at help@vorsprungautowerk.com with your engine and we will confirm the fit before you order.
How It Fits Into the Vorsprung 3.0T PCV Relocation
The factory 3.0T PCV valve sits under the supercharger, so servicing it normally means pulling the blower. Our PCV relocation moves the system where you can reach it and plumbs it with AN lines. The Billet PCV Housing Adapter replaces the lower factory PCV housing with 12AN ORB ports, and these adapters convert the valve covers to 10AN. With both in place every connection is AN, so you pick the hose and the routing for your build. Our Audi 3.0T PCV relocation guide covers how the system works and the honest pros and cons.
Running a catch can instead? The same 10AN outlet gives you a clean, sealed starting point at each valve cover.
Installation
- With the engine cool, release the factory breather hose quick connect from the valve cover port.
- Lightly oil the Viton O-rings with clean engine oil.

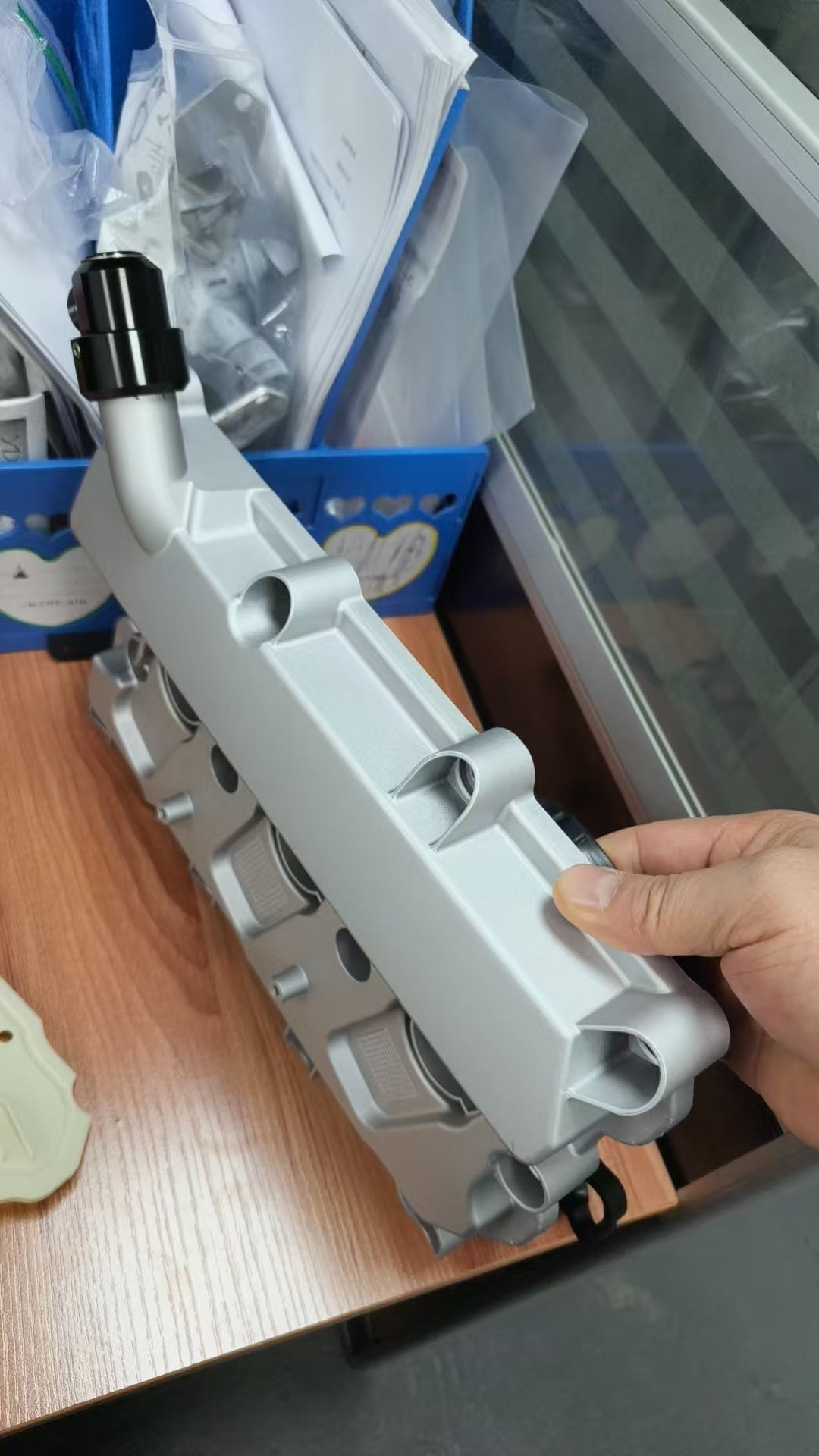

- Point the 90-degree outlet toward your hose routing, press the adapter straight into the 19mm port until it seats, and engage the billet lock.
- Thread your 10AN hose end onto the adapter, then repeat on the other valve cover.
- Start the engine and check every connection for leaks.
Vehicle Fitment
The Large adapter fits the Gen 1 supercharged Audi 3.0T (EA837) valve covers in North American models: the 2010-2016 S4, the 2010-2017 S5 (2010-2012 Cabriolet only), the 2013-2017 Q5 3.0T, the 2014-2017 SQ5, the 2009-2011 A6 (C6), the 2012-2015 A6 and A7 (C7), the 2013-2014 A8 (D4) and the 2011-2015 Q7 (4L).
| Make | Model | Years | Chassis | Engine |
|---|---|---|---|---|
| Audi | S4 | 2010-2016 | B8 / B8.5 | 3.0T Supercharged (EA837) |
| Audi | S5 (2010-2012 Cabriolet only) | 2010-2017 | B8 / B8.5 | 3.0T Supercharged (EA837) |
| Audi | Q5 3.0T | 2013-2017 | B8.5 | 3.0T Supercharged (EA837) |
| Audi | SQ5 | 2014-2017 | B8.5 | 3.0T Supercharged (EA837) |
| Audi | A6 | 2009-2011 | C6 | 3.0T Supercharged (EA837) |
| Audi | A6 / A7 | 2012-2015 | C7 | 3.0T Supercharged (EA837) |
| Audi | A8 | 2013-2014 | D4 | 3.0T Supercharged (EA837) |
| Audi | Q7 | 2011-2015 | 4L | 3.0T Supercharged (EA837) |
NOTE: Gen 2 (CREC) 3.0T cars, the 2016-2018 A6 and A7 (C7.5), 2015-2018 A8 and 2017-2019 Q7 (4M), are not listed. Email us at help@vorsprungautowerk.com before ordering for one of those. The Large adapter uses a common 19mm quick-connect size that also appears on the 5.2L V10 in the Audi R8 and Lamborghini Gallardo and Huracán, and on the BMW B58 inline-six in the BMW Z4 and Toyota GR Supra. Port location and clearance vary by engine, so confirm your port before ordering for a non-3.0T build.
Valve Cover Breather Adapter FAQ
What does this adapter do?
It converts the factory breather port on an Audi 3.0T valve cover to a 10AN male fitting, so you can run AN hose from the valve covers to a relocated PCV system or a catch can.
How many do I need?
Two for a 3.0T, one per valve cover. Order 2 of the Large size.
What is the difference between Large and Small?
Large is the Audi 3.0T valve cover adapter. Small is a smaller version for other breather ports. If you are not sure which you need, email us with your engine.
What else do I need to plumb it?
A 10AN hose end and 10AN hose for each adapter. Hose and hose ends are not included, so you can pick the hose type and length for your routing.
Is this part of the Vorsprung PCV relocation?
Yes. It is the valve cover side of our 3.0T PCV relocation with AN lines. Pair it with the Billet PCV Housing Adapter and the relocation parts listed below.
Does it fit the Gen 2 (CREC) 3.0T?
Gen 2 cars are not on the fitment list. Email us before ordering for a 2016-2018 A6 or A7, 2015-2018 A8 or 2017-2019 Q7.
What seals the connection?
Oversized dual Viton O-rings seal the port, and the billet locking retainer keeps the adapter seated.
Complete Your Build
- Billet PCV Housing Adapter - replaces the lower factory PCV housing with 12AN ORB ports, the other half of an all-AN relocation.
- PCV Relocation Oil Separator (06E103772C) - the baffled separator the relocation is built around.
- Audi Crankcase Vent Valve 06E103245E - the vent valve that completes the relocated system.
- GLT TruSeal PCV Valve Diaphragm Upgrade - the upgraded diaphragm for the relocated PCV valve.
- PCV Breather Hose for PCV Relocation (06E103217M) - the quick-disconnect breather hose used in 3.0T relocation builds.
- 10AN Universal PTFE Hose Kit and 10AN 90-Degree PTFE Hose End - 10AN PTFE hose with straight, 45-degree and 90-degree hose ends to connect to these adapters, plus extra 90-degree ends if your routing needs them.
