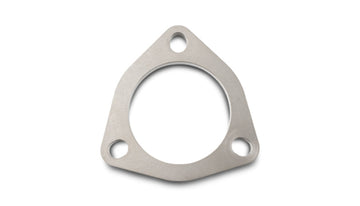

The three bolt exhaust flange is the triangle-shaped joint you find on countless downpipes, test pipes, mid-pipes and repair sections. When it's right, you never think about it. When it's wrong, you get a tick at cold start, a sooty stain on the pipe and a sensor reading that makes your ECU nervous. This guide focuses on what matters for the three-bolt design specifically: dimensions and bolt patterns, how to measure yours, gasket choice, and how to repair one properly. If you need a replacement, we stock the Vibrant three bolt flange for 3 in ID tubing.
Why the Three Bolt Exhaust Flange Is So Common
Three bolts are the sweet spot. Compared with a 2-bolt design, the load is spread evenly around the gasket at 120 degree intervals, so the plate is less likely to open up at the sides after heat cycles. Compared with a V-band, it is cheaper, more tolerant of slightly imperfect faces, and easy to find in any size. Choosing between 2-bolt, 3-bolt and V-band in general? That comparison lives in our 3 inch exhaust flange guide. Here, we go deep on the three-bolt itself.
Three Bolt Exhaust Flange Dimensions
Three-bolt flanges are sized by the pipe they accept and by the bolt circle, the imaginary circle that passes through the center of all three holes. Below is one widely published pattern. Some sizes share a bolt circle (2.00 and 2.25 inch, 2.75 and 3.00 inch), which is handy for step-up adapters. Plates in this pattern are about 0.394 inch (10 mm) thick.
| Pipe ID | Bolt circle | Hole-to-hole spacing (approx.) |
|---|---|---|
| 2.00 in | 3.13 in | 2.71 in |
| 2.25 in | 3.13 in | 2.71 in |
| 2.50 in | 3.50 in | 3.03 in |
| 2.75 in | 3.94 in | 3.41 in |
| 3.00 in | 3.94 in | 3.41 in |
| 3.50 in | 4.46 in | 3.86 in |
Patterns are not universal. For example, the Vibrant three bolt flange for 3.50 in ID ($93.95) is listed at 4.44 inch bolt hole center-to-center and 0.3125 inch thick, which does not match the table above. That is exactly why you measure before you buy.
How to Measure a Three Bolt Flange
- ✅ Bore: measure the inside of the flange opening with calipers, and note whether the pipe slips inside it (ID sized) or butts against it.
- ✅ Hole-to-hole spacing: measure center to center between any two holes. On an evenly spaced three-bolt flange, bolt circle equals this number multiplied by 1.155.
- ✅ Hole size: measure the bolt holes so the new studs or bolts fit.
- ✅ Thickness: measure the plate. Thicker plates resist warping.
- ✅ Face: check whether it is flat or has a raised or recessed sealing area.
Example: 3.41 inch hole spacing multiplied by 1.155 gives about 3.94 inch, the common pattern for 2.75 and 3.00 inch pipe.
Choosing the Right Gasket
The gasket has to match the bolt pattern, the bore and the flange face. Options:
- ✅ Multi-layer graphite: conforms well to slightly imperfect faces and handles exhaust heat. Vibrant lists matching graphite gaskets for its flanges.
- ✅ Multi-layer steel (MLS): very durable on flat, clean faces and high-heat locations close to the turbo or exhaust manifolds.
- ✅ Fiber or composite: budget option for low-stress joints further back.
- ✅ Never reuse a crushed gasket, and never stack two gaskets to "fill a gap". That is a misalignment problem, not a gasket problem.
Check that the gasket bore is not smaller than the pipe. An undersized gasket sticks into the flow path and can burn away.
Three Bolt Flange Repair: Fix or Replace?
Signs it's time
- ✅ Ticking or puffing at cold start that fades as the metal expands
- ✅ Black soot tracks around the joint
- ✅ A flange that rocks on a flat surface (warped)
- ✅ Cracks at the weld between the pipe and the flange
- ✅ Stripped threads or studs that are more rust than metal
- ✅ O2 sensor codes, since a leak upstream of a sensor can skew its readings
How to repair it
1. Free the hardware. Soak nuts with penetrating oil and give it time. Seized hardware snaps, so use steady force and a proper extractor if it does.
2. Check the face. Lay the flange on a flat surface. Light pitting can be dressed with a file or sanding block. A warped or cracked flange should be cut off, not "made to work".
3. Weld on a new flange. Cut the old flange off square, match the new flange to the mating side (bore, bolt pattern, thickness), tack it, test fit with bolts in place, then fully weld. Stainless welds are stronger when back purged.
4. Reassemble right. New gasket, new or cleaned hardware, tighten in stages alternating around the triangle, then recheck after a few heat cycles.
5. Add flex where needed. If the joint cracks because the exhaust moves, a 3 bolt 10mm spring bolt kit ($33.95) keeps clamping pressure while allowing a little movement. For a joint you'll take apart often, consider a V-band like the Vibrant V-band flange assembly for 3 in OD ($188.95).
✅ Real Vibrant flanges and hardware in stock ✅ Exhaust help from real 3.0T/4.0T Audi owners ✅ Fast US shipping
Shop the Vibrant 3-Bolt Flange for 3 in ID, $83.95
What Makes a Flange Last
Flange failures usually come from three things: thin plates that warp, weak welds that crack, and pipes that hang on the joint instead of on their mounts. That is the same thinking behind our own exhaust parts. The Audi 3.0T Test Pipes V2 ($474.99) use reinforced 10mm flanges and reinforced mounting points that reduce stress on the factory manifold studs. The 3.0T High Flow Cats ($1,049.99-$1,299.99) use extra-thick 10mm stainless flanges, reinforced inside and out to prevent warping. If you're changing catalysts, add our Euro 6 O2 spacers ($49.99) to help with sensor codes.
More reading: our Audi 3.0T header install guide, the Audi 3.0T Test Pipes V2 post, and the full direct-fit catalytic converter collection.
Three Bolt Exhaust Flange FAQ
What is the bolt pattern of a 3 inch three bolt exhaust flange?
A widely published pattern for 2.75 and 3.00 inch ID pipe uses a 3.94 inch (100 mm) bolt circle, about 3.41 inch between hole centers. Patterns vary by maker, so measure yours.
How do I measure a three bolt flange bolt circle?
Measure center to center between two holes and multiply by 1.155. That gives the bolt circle on an evenly spaced three-bolt flange.
What gasket should I use on a three bolt exhaust flange?
A new multi-layer graphite or multi-layer steel gasket that matches the bolt pattern and bore. Use fiber gaskets only on low-stress joints.
Can I reuse an exhaust flange gasket?
No. Once a gasket has been compressed and heat cycled it will not seal reliably again.
Why does my three bolt flange keep leaking?
Usually a warped or thin flange, a reused or wrong gasket, uneven tightening, or a pipe that is forcing the joint out of alignment.
Is a three bolt flange better than a 2 bolt?
For most performance pipes, yes. Three bolts clamp the gasket more evenly. Our 3 inch exhaust flange guide compares 2-bolt, 3-bolt and V-band in detail.
Can I weld a new flange onto my existing pipe?
Yes. Cut the old flange off square, match the new one to the mating side, tack and test fit, then fully weld using filler and tubing that match the pipe material.
Bottom Line on the Three Bolt Exhaust Flange
A three bolt exhaust flange is simple, strong and everywhere, as long as you match the bore and bolt circle, use a fresh gasket and tighten it evenly. If yours is warped or cracked, replace it rather than stacking gaskets. Start with the Vibrant three bolt flange for 3 in ID, and let direct-fit Vorsprung parts handle the hard sections.
