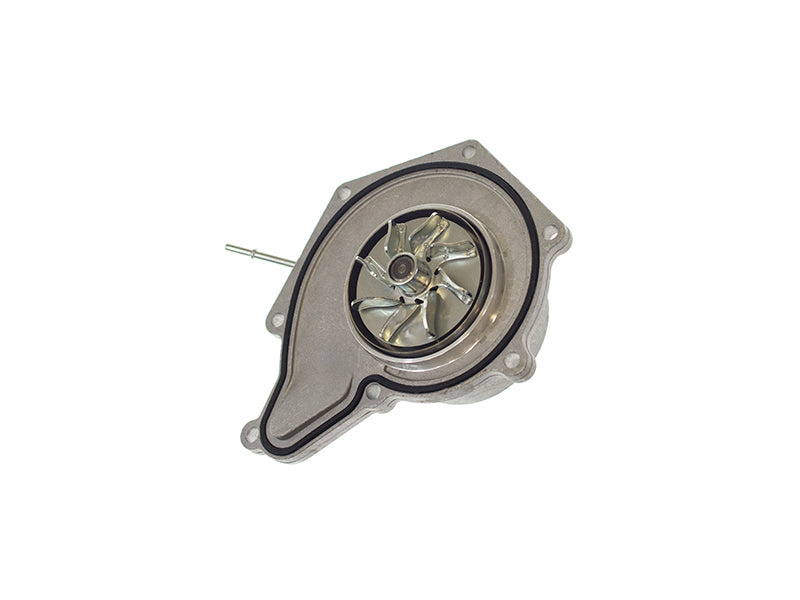

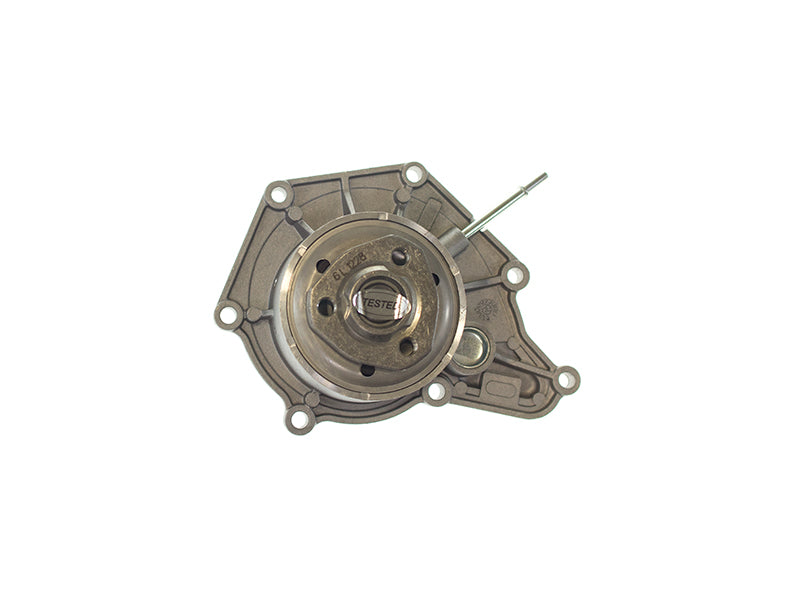

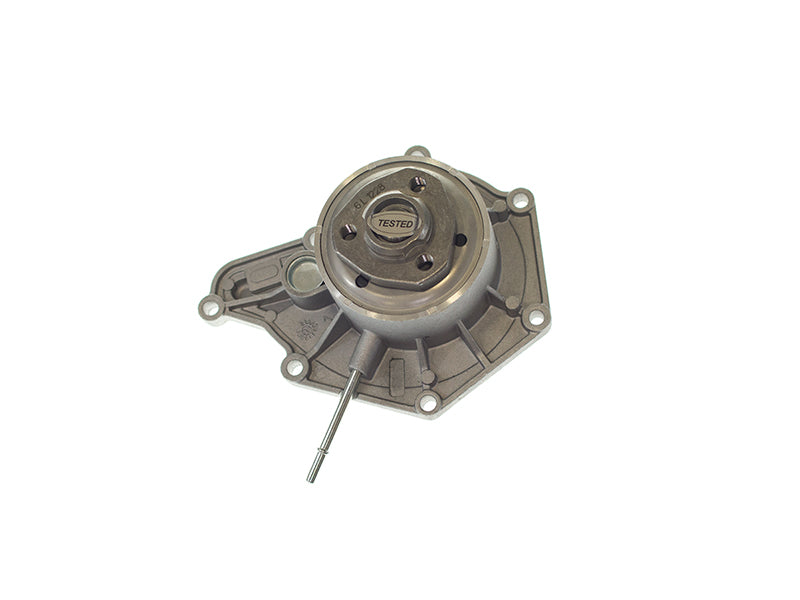

Audi Porsche VW Engine Water Pump - Graf PA1228 - Metal Impeller
Engine Water Pump
Your vehicles engine water pump is responsible for keeping coolant flowing through the engine. As water pumps get old the internal bearing can go bad causing noise and a coolant leak. A good indicator that your water pump is failing is if you see coolant leaking through the water pump "weep hole".
Engine Water Pump Failure Symptoms
- Coolant leak through weep hole
- Play at water pump pulley shaft indicating a bad bearing
- Squeaking noise coming from pump at idle
- Overheating conditions
- Low coolant light on instrument cluster indicating a cooling system leak
Fits These Vehicles
Verify your vehicle’s trim and engine code before ordering. Click a vehicle group below to view full fitment details.
| Year | Trim | Body | Drive | Transmission | Engine | Engine Code | Fuel Type |
|---|---|---|---|---|---|---|---|
| 2011 | S Hybrid | Sport Utility | AWD | Automatic | 3.0L V6 | 06EC | Full Hybrid (FHEV) |
| 2012 | S Hybrid | Sport Utility | AWD | Automatic | 3.0L V6 | CGFA | Full Hybrid (FHEV) |
| 2013 | S Hybrid | Sport Utility | AWD | Automatic | 3.0L V6 | CGFA | Full Hybrid (FHEV) |
| 2014 | S Hybrid | Sport Utility | AWD | Automatic | 3.0L V6 | CGFA | Full Hybrid (FHEV) |
| 2015 | S E-Hybrid | Sport Utility | AWD | Automatic | 3.0L V6 | CGFA | Plug-in Hybrid (PHEV) |
| 2016 | S E-Hybrid | Sport Utility | AWD | Automatic | 3.0L V6 | CGFA | Plug-in Hybrid (PHEV) |
| 2017 | S E-Hybrid | Sport Utility | AWD | Automatic | 3.0L V6 | CGFA | Plug-in Hybrid (PHEV) |
| 2017 | S E-Hybrid Platinum Edition | Sport Utility | AWD | Automatic | 3.0L V6 | CGFA | Plug-in Hybrid (PHEV) |
| 2018 | S E-Hybrid | Sport Utility | AWD | Automatic | 3.0L V6 | CGFA | Plug-in Hybrid (PHEV) |
| 2018 | S E-Hybrid Platinum Edition | Sport Utility | AWD | Automatic | 3.0L V6 | CGFA | Plug-in Hybrid (PHEV) |
| Year | Trim | Body | Drive | Transmission | Engine | Engine Code | Fuel Type |
|---|---|---|---|---|---|---|---|
| 2011 | Hybrid | Sport Utility | AWD | Automatic | 3.0L V6 | CGFA | Full Hybrid (FHEV) |
| 2012 | Hybrid | Sport Utility | AWD | Automatic | 3.0L V6 | CGFA | Full Hybrid (FHEV) |
| 2013 | Hybrid | Sport Utility | AWD | Automatic | 3.0L V6 | CGFA | Full Hybrid (FHEV) |
| 2014 | Hybrid | Sport Utility | AWD | Automatic | 3.0L V6 | CGFA | Full Hybrid (FHEV) |
| 2015 | Hybrid | Sport Utility | AWD | Automatic | 3.0L V6 | CGFA | Full Hybrid (FHEV) |
| Year | Trim | Body | Drive | Transmission | Engine | Engine Code | Fuel Type |
|---|---|---|---|---|---|---|---|
| 2012 | Premium | Sedan | AWD | Automatic | 3.0L V6 | CGXB | Gas |
| 2012 | Premium Plus | Sedan | AWD | Automatic | 3.0L V6 | CGXB | Gas |
| 2012 | Prestige | Sedan | AWD | Automatic | 3.0L V6 | CGXB | Gas |
| 2013 | Premium | Sedan | AWD | Automatic | 3.0L V6 | CTUA | Gas |
| 2013 | Premium Plus | Sedan | AWD | Automatic | 3.0L V6 | CTUA | Gas |
| 2013 | Prestige | Sedan | AWD | Automatic | 3.0L V6 | CTUA | Gas |
| 2014 | Premium | Sedan | AWD | Automatic | 3.0L V6 | CTUA | Gas |
| 2014 | Premium Plus | Sedan | AWD | Automatic | 3.0L V6 | CTUA | Gas |
| 2014 | Prestige | Sedan | AWD | Automatic | 3.0L V6 | CTUA | Gas |
| 2015 | Premium Plus | Sedan | AWD | Automatic | 3.0L V6 | CTUA | Gas |
| 2015 | Prestige | Sedan | AWD | Automatic | 3.0L V6 | CTUA | Gas |
| Year | Trim | Body | Drive | Transmission | Engine | Engine Code | Fuel Type |
|---|---|---|---|---|---|---|---|
| 2012 | — | Hatchback | AWD | Automatic | 3.0L V6 | CGXB | Gas |
| 2013 | — | Hatchback | AWD | Automatic | 3.0L V6 | CTUA | Gas |
| 2014 | Premium Plus | Hatchback | AWD | Automatic | 3.0L V6 | CTUA | Gas |
| 2014 | Prestige | Hatchback | AWD | Automatic | 3.0L V6 | CTUA | Gas |
| 2015 | Premium Plus | Hatchback | AWD | Automatic | 3.0L V6 | CTUA | Gas |
| 2015 | Prestige | Hatchback | AWD | Automatic | 3.0L V6 | CTUA | Gas |
| Year | Trim | Body | Drive | Transmission | Engine | Engine Code | Fuel Type |
|---|---|---|---|---|---|---|---|
| 2012 | S Hybrid | Hatchback | RWD | Automatic | 3.0L V6 | CGFA | Full Hybrid (FHEV) |
| 2013 | S Hybrid | Hatchback | RWD | Automatic | 3.0L V6 | CGFA | Full Hybrid (FHEV) |
| 2014 | S E-Hybrid | Hatchback | RWD | Automatic | 3.0L V6 | CGFA | Plug-in Hybrid (PHEV) |
| 2015 | S E-Hybrid | Hatchback | RWD | Automatic | 3.0L V6 | CGFA | Plug-in Hybrid (PHEV) |
| 2016 | S E-Hybrid | Hatchback | RWD | Automatic | 3.0L V6 | CGFA | Plug-in Hybrid (PHEV) |
| Year | Trim | Body | Drive | Transmission | Engine | Engine Code | Fuel Type |
|---|---|---|---|---|---|---|---|
| 2013 | L | Sedan | AWD | Automatic | 3.0L V6 | CTUB | Gas |
| 2013 | — | Sedan | AWD | Automatic | 3.0L V6 | CTUB | Gas |
| 2014 | L | Sedan | AWD | Automatic | 3.0L V6 | CTUB | Gas |
| 2014 | — | Sedan | AWD | Automatic | 3.0L V6 | CTUB | Gas |
| Year | Trim | Body | Drive | Transmission | Engine | Engine Code | Fuel Type |
|---|---|---|---|---|---|---|---|
| 2013 | Premium Plus | Sport Utility | AWD | Automatic | 3.0L V6 | CTUC | Gas |
| 2013 | Prestige | Sport Utility | AWD | Automatic | 3.0L V6 | CTUC | Gas |
| 2014 | Premium Plus | Sport Utility | AWD | Automatic | 3.0L V6 | CTUC | Gas |
| 2014 | Prestige | Sport Utility | AWD | Automatic | 3.0L V6 | CTUC | Gas |
| 2015 | Premium Plus | Sport Utility | AWD | Automatic | 3.0L V6 | CTUC | Gas |
| 2015 | Prestige | Sport Utility | AWD | Automatic | 3.0L V6 | CTUC | Gas |
| 2016 | Premium Plus | Sport Utility | AWD | Automatic | 3.0L V6 | CTUC | Gas |
| 2016 | Prestige | Sport Utility | AWD | Automatic | 3.0L V6 | CTUC | Gas |
| 2017 | Premium Plus | Sport Utility | AWD | Automatic | 3.0L V6 | CTUC | Gas |
| 2017 | Prestige | Sport Utility | AWD | Automatic | 3.0L V6 | CTUC | Gas |
| Year | Trim | Body | Drive | Transmission | Engine | Engine Code | Fuel Type |
|---|---|---|---|---|---|---|---|
| 2013 | — | Sedan | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CGXC | Gas |
| 2014 | Premium Plus | Sedan | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2014 | Prestige | Sedan | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2015 | Premium Plus | Sedan | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2015 | Prestige | Sedan | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2016 | Premium Plus | Sedan | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2016 | Prestige | Sedan | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| Year | Trim | Body | Drive | Transmission | Engine | Engine Code | Fuel Type |
|---|---|---|---|---|---|---|---|
| 2013 | Cabriolet | Convertible | AWD | Automatic Dual Clutch | 3.0L V6 | CGXC | Gas |
| 2013 | — | Coupe | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CGXC | Gas |
| 2014 | Premium Plus | Convertible | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2014 | Premium Plus | Coupe | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2014 | Prestige | Convertible | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2014 | Prestige | Coupe | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2015 | Premium Plus | Convertible | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2015 | Premium Plus | Coupe | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2015 | Prestige | Convertible | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2015 | Prestige | Coupe | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2016 | Premium Plus | Convertible | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2016 | Premium Plus | Coupe | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2016 | Prestige | Convertible | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2016 | Prestige | Coupe | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2017 | — | Convertible | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| 2017 | — | Coupe | AWD | Automatic Dual Clutch / Manual | 3.0L V6 | CTUB | Gas |
| Year | Trim | Body | Drive | Transmission | Engine | Engine Code | Fuel Type |
|---|---|---|---|---|---|---|---|
| 2014 | Premium Plus | Sport Utility | AWD | Automatic | 3.0L V6 | CTUD | Gas |
| 2014 | Prestige | Sport Utility | AWD | Automatic | 3.0L V6 | CTUD | Gas |
| 2015 | Premium Plus | Sport Utility | AWD | Automatic | 3.0L V6 | CTUD | Gas |
| 2015 | Prestige | Sport Utility | AWD | Automatic | 3.0L V6 | CTUD | Gas |
| 2016 | Premium Plus | Sport Utility | AWD | Automatic | 3.0L V6 | CTUD | Gas |
| 2016 | Prestige | Sport Utility | AWD | Automatic | 3.0L V6 | CTUD | Gas |
| 2017 | Premium Plus | Sport Utility | AWD | Automatic | 3.0L V6 | CTUD | Gas |
| 2017 | Prestige | Sport Utility | AWD | Automatic | 3.0L V6 | CTUD | Gas |
Water Pump FAQ
What are the symptoms of a failing water pump?
Coolant leaking from the weep hole, play at the pulley shaft, a squeaking noise at idle, overheating, or a low coolant warning on the instrument cluster.
Is this a direct OE replacement?
Yes, this is a Graf-manufactured water pump (PA1228) built to OE specification for the applications listed above.
How do I know if this fits my exact vehicle?
Click through the vehicle groups above to check your specific year, trim, and engine code — the 3.0L V6 was used across multiple Audi, Porsche, and Volkswagen models with different engine codes, so confirming yours ensures correct fitment.
Should I replace anything else at the same time?
A water pump job is a common time to also inspect or replace your thermostat, coolant hoses, and drive belt, since they're often exposed during the same service.
