CREC Coolant Crossover Kit, Audi 3.0T (06E121045BE, 06E121045AN, 06E121030K)

CREC Coolant Crossover Kit

The coolant crossover pipes running between the water pump and thermostat housing on the Gen2 supercharged 3.0T sit right in the heat of the valley, cycling hot and cold every drive for years. Audi's factory plastic pipes and couplers eventually give out there, and when they do, you're looking at a coolant leak in one of the least convenient places on the engine to chase down.

This kit gets you ahead of it: the genuine Audi upper and lower crossover pipes, a new coupler, and fresh gaskets, all in one order instead of piecing it together part number by part number.

• ✅ Genuine Audi upper and lower coolant crossover pipes
• ✅ New coupler included, not reused with the old one's wear already baked in
• ✅ Fresh gaskets for a proper seal on install
• ✅ One order covers the full crossover pipe service instead of three separate part lookups

Bottom line: if you're already in the valley for a water pump, thermostat, or supercharger service, do the crossover pipes at the same time. This kit gets you everything that job needs in one box.

What's Included

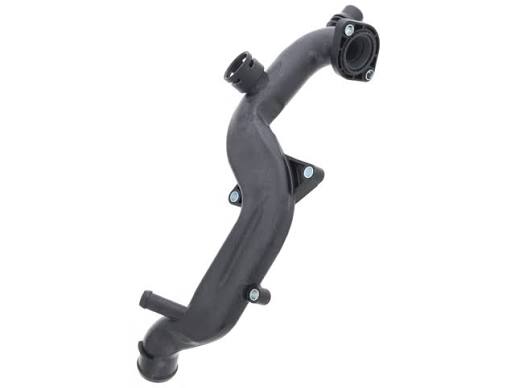

• 1x Upper coolant crossover pipe (06E121045BE)
• 1x Lower coolant crossover pipe (06E121045AN)
• 1x Coupler (06E121030K)
• Gaskets for the above

Coolant Crossover Kit FAQ

Why do these crossover pipes fail?
They're factory plastic, sitting in one of the hottest, most heat-cycled corners of the engine. Over years of thermal cycling they go brittle at the seams and couplers, the same failure mode as most plastic cooling system components on this platform.

Is this a genuine Audi part or aftermarket?
These are genuine Audi parts (06E121045BE, 06E121045AN, 06E121030K), not aftermarket reproductions.

Does this include gaskets?
Yes, fresh gaskets are included for both pipes.

Will this fit my Gen1 supercharged S4 or S5?
No. This kit is for the CREC-code Gen2 supercharged 3.0T (A6/A7 C7.5, A8 D4, Q7 4M). The Gen1 B8/B8.5 platform uses a different part number family.

Should I replace anything else while I'm in there?
If you're already pulling the crossover pipes, it's a good time to check your thermostat and water pump for the same heat-cycle wear, and to inspect nearby hoses and clamps.

Complete Your Build

Already in the CREC valley? Pair this kit with:

• Vorsprung Billet Supercharger Clutch Delete, Audi CREC 3.0T - same CREC platform, same service window if you're already under the supercharger.
• 3.0T Oil Check Valve Set - another common valley failure item worth doing at the same time.
