Most Audi PCV advice starts with the wrong test. If the oil cap feels hard to remove, people jump straight to “bad PCV valve,” then replace a part without proving whether the fault is in the diaphragm, the breather hose check valve, or another vacuum leak. That shortcut wastes money, and on 3.0T and 4.0T cars it can leave the core issue untouched.
The audi pcv valve is better treated as a system diagnosis than a part swap. Modern Audi ventilation hardware is part of the engine's pressure control architecture, not a simple breather, and the diagnostic path has to match that reality. If you want the fault fixed the first time, start with the way the system fails.
Table of Contents
- Why Most Audi PCV Diagnoses Are Wrong
- How the Audi PCV System Works
- Recognizing Real PCV Failure Symptoms
- OEM Plastic Versus Billet Aluminum Upgrades
- Proper Diagnostic Procedure Before Replacement
- Track and High-Performance Applications
- Making the Right Decision for Your Audi
Why Most Audi PCV Diagnoses Are Wrong
The oil-cap suction test has become internet gospel, but it doesn't isolate the fault. A car can show strong suction at the filler cap and still have a bad hose check valve, a cracked breather housing, or another intake leak that's distorting crankcase flow. That's why so many DIY fixes appear to “work” for a week, then the rough idle or boost loss comes right back.
The problem with symptom-only diagnosis
A failing crankcase ventilation circuit can mimic several other issues at once. The engine may idle badly, whistle, leak oil, or feel lazy under boost, and each of those symptoms also overlaps with ignition faults, turbo control issues, or ordinary vacuum leaks. If the diagnosis stops at “the cap is hard to remove,” the shop or owner never proves where the air is entering or how the crankcase is being metered.
A better method is to separate the PCV assembly, the breather hose, and the rest of the intake tract into distinct checks. Audi technical guidance tied to crankcase ventilation shows that clamping the primary vent line and watching fuel trims move back toward spec can confirm a vent-valve issue rather than a generic leak, while 3.0T diagnosis content also notes the hose check valve can fail independently of the housing itself. That distinction matters, because the bad component isn't always the part you can see first. The official Audi technician material on crankcase ventilation lays out that system-level test approach clearly in the PDF on crankcase ventilation and secondary air injection, which is the right mindset for this job Audi crankcase ventilation diagnostic guidance.
Practical rule: If the oil-cap test is your only test, you're guessing.
Why parts get replaced for the wrong reason
I see this most often on cars that already have intake leaks or aged check valves. The owner hears a whistle or sees rough idle, replaces the PCV housing, and then wonders why the symptoms remain. In a lot of cases, the original housing was only part of the story.
The right question isn't “Is there suction?” The right question is “Where is the system losing control of pressure and flow?” That's a much narrower, more useful question, and it's the one that saves time in the bay. The rest of this article stays focused on that narrower test.
How the Audi PCV System Works
Audi crankcase ventilation is a pressure regulator with a job to do under several different engine states. At idle, it has to meter vapors without creating a large vacuum event. Under load, it has to control crankcase pressure so boost does not push oil vapor and oil mist into places they do not belong.
The modern Audi and VAG units commonly seen on these engines are pressure-controlled diaphragm assemblies mounted on the cylinder head or valve cover, not crude one-way breather valves. OE replacement listings commonly specify FPM/ACM seals and PA6.6 or reinforced plastic housings, which shows the part is built around heat and chemical resistance, not just airflow. Some cataloged units also carry a 60,000 km or 3 year service interval, which matches the way diaphragms harden and plastic housings age out in the heat of normal use, as shown in this Audi PCV catalog example.
What the system is trying to control
On a healthy engine, crankcase gases are metered back into the intake path instead of escaping past seals or pushing oil vapor into the wrong places. The metering has to stay stable because idle quality and fuel control depend on predictable airflow. If the diaphragm hardens or the housing cracks, the metering changes enough to create vacuum leaks, restricted crankcase flow, or both.
That is why a bad Audi PCV does not always announce itself with one obvious code. A rough idle can be the first clue, but the underlying failure may be that the crankcase is no longer being held at the correct pressure, so the engine management system keeps correcting for unmetered air. When that happens, the fault looks like a drivability issue long before it looks like a hardware failure.
Why these units are not simple breather parts
The OEM-style assemblies in these cars have to survive heat cycles, boost transitions, and constant exposure to oil vapor. A plain plastic fitting might last as a hose connector, but the PCV module has to meter pressure in real time. That is why the internal diaphragm and valve behavior matter as much as the housing itself.
The practical takeaway is simple. If you only think about the audi pcv valve as a replaceable cap or check valve, you miss the control function that makes it valuable in the first place. The modern part is a control device, and control devices need control-oriented diagnosis.
Recognizing Real PCV Failure Symptoms
The cleanest symptom pattern isn't “it idles funny.” It's a combination of trim drift, boost loss, and crankcase behavior that doesn't match a healthy sealed system. Audi technician guidance tied to 2.0T and VAG crankcase faults notes that idle fuel trims around ±10% are the useful benchmark, so when trims wander outside that band, the ventilation circuit deserves attention before random parts get changed fuel trim guidance for VAG PCV faults.
What to watch on the scan tool
Idle trims that sit outside the expected band are a stronger clue than a vague sound complaint. So is rough idle that doesn't clean up the way a normal cold-start quirk would. When the crankcase circuit is leaking or restricted, the ECU has to correct for air that didn't go through the normal metering path.
A failing PCV can also reduce boost stability. If crankcase pressure is wrong, the engine may lose some of the control margin it needs to hold requested pressure consistently, and that often feels like a soft top-end or lazy spool rather than a dramatic failure. That's why a pressure or trim complaint on an Audi is worth separating from ignition and turbo diagnosis before anyone orders coils or a wastegate.
Signs that are useful, and signs that aren't
Oil consumption can be part of the picture, but it's not enough by itself to prove a PCV failure. Oil leaks around the valve cover or intake area can also point you toward a venting problem, yet those leaks can be secondary to the pressure issue rather than the root cause. The key is whether the engine is showing an airflow-control problem, not just a dirty engine bay.
Shop rule: If idle trims are normal and boost is stable, don't call it a PCV fault just because the cap feels tugged down.
The wrong diagnosis is costly because it sends attention to unrelated parts. A rough idle can invite ignition work, while boost complaints can send people toward turbo hardware. On these engines, that's exactly how a simple ventilation fault turns into a stacked repair bill.

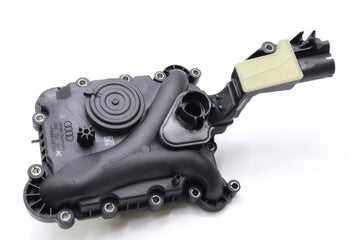

The internal link worth checking if you're pricing a replacement is the Hengst-style crankcase valve assembly sold for the EA837 platform, which gives you a reference point for OEM-style replacement hardware and fitment Hengst PCV crankcase valve 06E103547AC.
OEM Plastic Versus Billet Aluminum Upgrades
Plastic OEM-style PCV parts solve the job when they're fresh, but they age in a very predictable way. Heat cycles harden the diaphragm, the housing can crack, and the sealing surfaces eventually stop behaving like precision parts. Billet replacements address those failure modes by changing the material and, usually, the way the assembly is supported under heat and vibration.
What changes with billet hardware
Billet aluminum housings don't eliminate the need for a functioning diaphragm or check-valve design, but they do remove one of the most common weak links, the plastic body itself. That matters most on cars that see repeated heat soak, frequent spirited use, or extended load. The housing isn't the whole story, yet on Audi platforms it's often the part that cracks after enough thermal cycling.
OEM plastic has a lower upfront cost, and that's why it remains common on stock daily drivers. Billet costs more up front, but the owner is paying for a more durable body and better resistance to deformation under heat. In real shop use, that trade-off usually makes sense when the car is modified, tracked, or kept for the long term.
Where the upgrade makes the most sense
The best billet case is a car that already runs increased boost, spends time in repeated pulls, or has had multiple ventilation-related failures. If the engine bay routinely sees high heat and the plastic part has already shown stress, the upgrade is easy to justify. If the car is an unmodified commuter with no signs of abnormal trim behavior, OEM replacement can still be the right answer.
Vorsprung Autowerk's billet PCV adapter for the Audi 3.0T sits in that category of hardware aimed at durability-focused owners, especially when the factory-style plastic component has become a recurring maintenance item Vorsprung Autowerk billet PCV adapter. The point isn't that billet is always mandatory, it's that the material choice becomes more relevant as heat, boost, and ownership length go up.
A simple way to choose is to ask whether you're trying to restore stock behavior or reduce repeat failures. If it's the first, OEM-style replacement is usually fine. If it's the second, billet has a real place.
Proper Diagnostic Procedure Before Replacement
Before any part gets ordered, I want to know whether the ventilation circuit responds when the primary vent line is isolated. That one check does more to separate a real PCV fault from a generic vacuum leak than the oil-cap test ever will. It also keeps the diagnosis honest when the breather hose check valve is the true failure point.
The workflow matters because the PCV housing is only one possible failure in the system. Audi technical content shows that clamping the primary vent line and watching fuel trims move back toward spec can confirm the vent valve path, while hose check-valve failure can exist on its own. If you skip that separation, you can replace the wrong component and still chase the same drivability complaint.
A practical bench-first sequence
Start with the scan tool and look at fuel trims at idle. Then isolate the primary vent path and see whether the engine's corrections shift in the direction you expect. If trims normalize, that points toward the crankcase ventilation assembly; if they don't, keep looking for an intake leak or another restriction in the system.
A breather hose can be tested off the car for pressure-holding behavior, which is especially useful when the internal check valve is the weak point. Visual inspection still matters, because cracked housings and degraded seals are common enough to show up without fancy equipment. What you don't want to do is treat every symptom as proof of the same failed part.
Diagnostic habit that pays off: If the vent line test doesn't change the trims, stop assuming the PCV housing is guilty.
The linked MAF diagnosis note from Vorsprung Autowerk is useful here because a bad MAF and a bad PCV can both produce confusing air-fuel behavior, but for different reasons Audi MAF sensor diagnostic note. That's why it helps to confirm the airflow story before you replace a ventilation component.
A proper diagnosis is less dramatic than a parts swap, but it's much more reliable. Once you've separated housing, hose, and leak behavior, the repair decision gets a lot easier.
Track and High-Performance Applications
A customer can drive a mildly tired PCV on a grocery-run Audi for a while and get away with it. Put the same engine on repeated high-boost pulls, long uphill loads, or track heat cycles, and the margin disappears fast. That's when crankcase pressure control stops being a comfort issue and starts becoming a durability issue.
On newer high-output platforms, failed internal check valves can pressurize the crankcase, push hot oil where it shouldn't be, and create a fire risk when the car is being worked hard. That's a different conversation from the usual rough-idle complaint. It also explains why performance owners are paying more attention to off-car hose testing and component-level inspection than they used to.
What changes under sustained load
Under track conditions, the engine doesn't get the same recovery time it gets on the street. Heat stays in the housing longer, seals are exposed to more stress, and a marginal valve can go from acceptable to failed without much warning. The failure mode isn't always a clean code, either. Sometimes the first sign is oil mist, a burning smell, or pressure where the crankcase should be controlled.
For 3.0T and 4.0T owners, the issue isn't only age, it's how often the engine sees full thermal load. That's why a billet body and improved structural stability make sense for a lot of tuned applications. The upgrade doesn't make a bad diagnosis go away, but once the diagnosis is right, it gives the system a better chance of staying sealed and stable.
A shop pattern that keeps repeating
The cars that worry me most are the ones that already run hard and then start showing small ventilation symptoms. A little extra trim correction, a faint whistle, or a bit of oil in the wrong place can be the first sign of a problem that's much more meaningful under sustained boost. On a track day, there's no room for a component that only works when it's cool and lightly loaded.
That's also why premature deterioration matters more than normal wear in this context. A street car can tolerate some aging, but a performance car asks the part to stay accurate under conditions that expose every weakness. If the body is brittle, the seal is soft, or the check valve hangs up, the system gives up sooner than the owner expects.
Making the Right Decision for Your Audi
The decision tree is simpler than the forum noise makes it seem. If the car has idle trim deviation, rough idle, boost loss, or oil vapor behavior that points to the crankcase circuit, test the system, don't guess. If the fault is in the OEM-style plastic housing and the car is a normal street-driven Audi, an OE replacement is still a sensible fix.
If the car has repeated failures, runs hotter than stock, or sees hard use, billet becomes a more rational choice. The material change matters because the failure pattern on these engines is often about heat, cracking, and degraded control, not just mileage. For a tuned 3.0T or 4.0T, that durability margin can be worth more than the lower entry price of plastic.
If you're still not sure, that's the point where a pressure-flow diagnosis from someone who works on these systems every week makes sense. The wrong replacement can hide the actual fault for a while, but it won't cure it. A clean diagnosis does.
If your Audi is showing trim drift, rough idle, or crankcase pressure symptoms, Vorsprung Autowerk offers Audi-focused diagnostics and platform-specific PCV hardware that fit the repair the car needs. Visit Vorsprung Autowerk to review crankcase ventilation parts, billet options, and the supporting components that make the diagnosis stick the first time.
