Thinking about Audi S4 test pipes for your B8 or B8.5 3.0T? The pipes are the easy part. Getting the factory cats out is the job. This guide covers what Audi S4 test pipes replace, how long the install really takes, the tools that save your sanity, and what to expect for sound, smell and check engine lights afterward. Read it before you book the lift.
Off-road / competition use only: test pipes remove the factory catalytic converters. They are sold for off-road and competition vehicles and may not be legal on public roads where you live. Check your local laws before you buy or install.
What Audi S4 Test Pipes Replace
On the supercharged 3.0T (EA837), the catalytic converters sit right behind the exhaust manifolds, tucked between the engine, the transmission and the subframe. Test pipes replace that front catalyst section on both banks. They bolt to the exhaust manifolds at the front and to your OEM or aftermarket 2.5-inch downpipes at the back.
The same pipes fit the 2010-2012 B8 S4 and the 2013-2016 B8.5 S4, plus the S5, A6, A7, A8, Q5 and SQ5 with the supercharged 3.0T. The 4M Q7 is different and needs Q7-specific test pipes.
How Long Does an S4 Test Pipe Install Take?
Longer than the parts make it look. Shops commonly quote Audi book time of around 12 to 13 hours for this job. DIY owners on the forums report anywhere from about 7 hours on a lift to a full weekend or more working in tight quarters. S tronic (DSG) cars generally need more room to get the cats out than 6-speed manuals.
That labor number is the whole reason pipe quality matters. If a cheap set cracks, you pay for those same hours again. Think of it as the Audi Tax, except you charged yourself.
Tools and Supplies
- ✅ A lift. Owners who tried it on jack stands mostly say "never again."
- ✅ Swivels and long extensions in 1/4-inch and 3/8-inch drive for the manifold-to-cat nuts.
- ✅ A transmission jack or a second jack, plus engine support, to lower the drivetrain safely.
- ✅ Penetrating oil, applied the day before and again before you start.
- ✅ An O2 sensor socket.
- ✅ New gaskets and nuts. Never reuse the old ones. Our S4 test pipes include all hardware and gaskets.
- ✅ Spare manifold studs, just in case. Old exhaust hardware on a 10-year-old Audi does not always come out politely.
Installing Test Pipes on a B8/B8.5 S4: The Overview
Every car and every shop does this a little differently, so treat this as the big picture, not a torque-by-torque procedure. Follow the factory repair information for your exact car.
- Let the exhaust cool completely, get the car on a lift and remove the underbody panels.
- Soak every fastener on the manifold-to-cat and cat-to-downpipe joints with penetrating oil.
- Unplug the O2 sensors. Remove the ones you can reach now. Some owners find the passenger-side sensor easier to deal with once the cat is out.
- Separate the downpipes from the factory cats.
- Make room. With the engine supported, owners either lower the transmission tail by unbolting the rear transmission mount and easing it down on a jack, or lower the front subframe a few inches. S tronic cars usually need more drop than manuals.
- Remove the manifold-to-cat nuts with swivels and extensions, then work the factory cats out. Some owners cut the old cats to get them out; plan your approach before you start.
- Clean the flange faces and inspect the manifold studs. Replace any that are stretched, damaged or broken.
- Fit the test pipes with new gaskets and nuts. Snug everything by hand first, line up the downpipes, then tighten evenly.
- Reinstall the O2 sensors, raise the drivetrain back into place, refit the mounts and reconnect everything.
- Start it, check for leaks and contact points, then recheck the hardware after the first full heat cycle.
The biggest risk: seized or broken studs. One owner reported breaking four of six fasteners at the cat-to-downpipe joints. Budget time and parts for it, and don't rush the penetrating oil.
Check Engine Light, Tuning and O2 Sensors
With the cats gone, the downstream O2 sensors no longer see a working catalyst, so most ECUs set catalyst efficiency codes like P0420 and P0430. Owners report a few ways to handle it:
- ✅ A tune with a test pipe or decat file. This is the cleanest approach and lets you use the extra flow. Ask your tuner before you install.
- ✅ O2 sensor spacers. Owners describe results as hit or miss, and they come with legal questions of their own. Read our O2 sensor spacer guide first.
- ✅ Clearing codes only buys time. A light that keeps coming back can hide a real problem.
Need to keep a catalyst on the car? Look at 3.0T high flow cats instead, and see our test pipes vs high flow cats comparison.
What S4 Test Pipes Sound Like
Louder, with more supercharger whine and crackle on throttle. Owners consistently report two complaints with test pipes on the S4: rasp, and drone somewhere around 2,500 to 4,000 rpm. Both depend heavily on the pipes and on the rest of the exhaust.
- ✅ Wall thickness matters. Thin pipes ring. Thicker walls keep the tone deeper.
- ✅ Your cat-back matters. Resonators in the system tame drone more than anything at the front.
- ✅ Expect some smell. A raw exhaust smell is part of running catless.
Why Owners Remove the Factory Cats
On a stock S4, the factory cats are fine. Add a pulley and a tune and the story changes. The cats sit in a hot spot right behind the manifolds, and owners running dual-pulley setups regularly report cats that break down from heat. That can mean rattles, lost power and a restricted exhaust. For a dedicated track car, test pipes remove that failure point along with the restriction.
What to Look For in Audi S4 Test Pipes
Because the install is a 12-hour job, buy the set you only want to install once:
- ✅ Wall thickness: many sets use about 1.5 to 1.65mm tube. Ours is 2.0mm 304 stainless.
- ✅ Fewer welds: one-piece mandrel bends mean fewer places to crack.

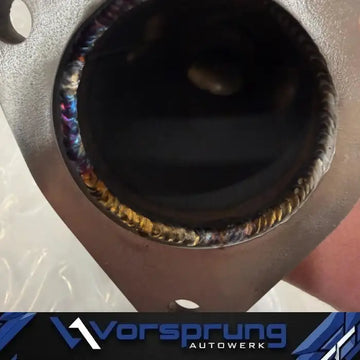

- ✅ Back-purged TIG welds for clean, strong internal welds.
- ✅ Thick flanges: 10mm reinforced flanges resist warping and leaks.
- ✅ Heat shielding included: some popular sets charge well over $100 extra for it. Ours includes dual-layer shielding at no extra cost.
- ✅ Gaskets and hardware included in the box.
That's exactly how we built the Vorsprung Audi S4 test pipes V2: 2.0mm wall, true 2.5-inch, single mandrel bends, back-purged TIG welds, 10mm flanges, integrated heat shielding and all hardware for $474.99. Want the engineering deep dive? Read our 3.0T test pipes V2 guide.
Shop Audi S4 Test Pipes V2, $474.99
Do More While It's Apart
- ✅ HEH Headers V2: the manifolds are right there.
- ✅ Ported supercharger service: more air in to match the extra flow out.
- ✅ New manifold studs and nuts on any joint that fought you.
Audi S4 Test Pipes Install FAQ
How long does it take to install test pipes on an Audi S4?
Shops commonly quote Audi book time of around 12 to 13 hours. DIY owners report roughly 7 hours on a lift up to a full weekend, and S tronic cars usually take longer than manuals.
Do I have to drop the subframe to install S4 test pipes?
You need room to get the factory cats out. Owners either lower the transmission tail on a jack or lower the front subframe a few inches with the engine supported. S tronic cars generally need more drop than 6-speed manuals.
Do I need a tune after installing test pipes on my S4?
A tune with a test pipe or decat file is strongly recommended. It handles catalyst monitoring and gets the most from the added flow. Talk to your tuner before you install.
Will S4 test pipes cause a check engine light?
Usually, yes. Without catalysts most ECUs set catalyst efficiency codes such as P0420 and P0430 unless the tune accounts for the change.
Do the same test pipes fit the B8 and B8.5 S4?
Yes. Our Audi S4 test pipes fit the 2010-2012 B8 and 2013-2016 B8.5 S4, plus the S5, A6, A7, A8, Q5 and SQ5 with the supercharged 3.0T.
Are test pipes street legal?
No. Test pipes remove the catalytic converters and are intended for off-road and competition use only.
What do S4 test pipes sound like?
Louder, with more supercharger whine and crackle. Thin-wall pipes are known for rasp, and drone around 2,500 to 4,000 rpm depends a lot on the rest of your exhaust.
Bottom Line
Test pipes on a B8 or B8.5 S4 are a big job with a simple lesson: the labor costs more than the parts, so buy pipes that won't send you back under the car. Plan a lift, plenty of penetrating oil and a tune, and grab a set of Audi S4 test pipes built to be installed once.
Drive the difference. Drive Vorsprung.
Labor times are typical shop quotes and owner-reported experiences, not guarantees. Always follow factory repair information and check your local emissions laws before modifying any exhaust component.
