OE Ultimate Under Supercharger Kit (Audi 3.0T Gen 1 2012 C7, Built Before 05/2012, 06E103547AC PCV)

Regular price $674.99
Sale price $674.99 Regular price
Unit price
In stock, ships from Vorsprung
Ships Free in the USThis part qualifies for free shipping
14-Day ReturnsHassle-free, see return policy
Pay Over TimeShop Pay, Affirm or Afterpay at checkout
Tested On Our CarsReal 3.0T support from people who wrench
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL Wero
  • Mastercard
  • PayPal
  • Satispay
  • Shop Pay
  • Visa

Under-Supercharger Service Kit (Gen 1 EA837 2012 C7 3.0T)

VIN Check This kit includes PCV valve 06E103547AC. Audi used several different PCV valves on the 3.0T, sometimes changing part numbers partway through a model year. Not sure which one your car takes? Email your VIN to help@vorsprungautowerk.com before you order and we'll confirm the right kit for your car.

The Vorsprung Autowerk Ultimate Under-Supercharger Service Kit replaces the thermostat and thermostat housing, heater pipe, water pump, PCV valve, crankcase breather hose and intake manifold gaskets under the supercharger of the Gen 1 EA837 3.0T, and fits 2012 Audi C7 A6 and A7 3.0T cars built before May 2012 that use PCV valve 06E103547AC.

Don’t pull the supercharger twice. Do it once, and do it right.

If you are removing the supercharger on your Gen 1 Audi 3.0T to replace a failing thermostat or PCV valve, replacing the rest of the critical "under-blower" components while you're in there isn't just recommended, it's mandatory.

The factory plastic cooling components are notorious failure points that leave drivers stranded and facing massive labor bills. The Vorsprung Autowerk Ultimate Under-Supercharger Service Kit bulletproofs the valley of your 3.0T. We've taken the guesswork out of this heavy-duty maintenance job by assembling the highest-quality OEM, OES, and upgraded metal components on the market.

Say goodbye to cracking plastic housings and leaking seals. This kit is designed for enthusiasts who demand peak reliability for their daily drivers or stage-tuned track weapons.

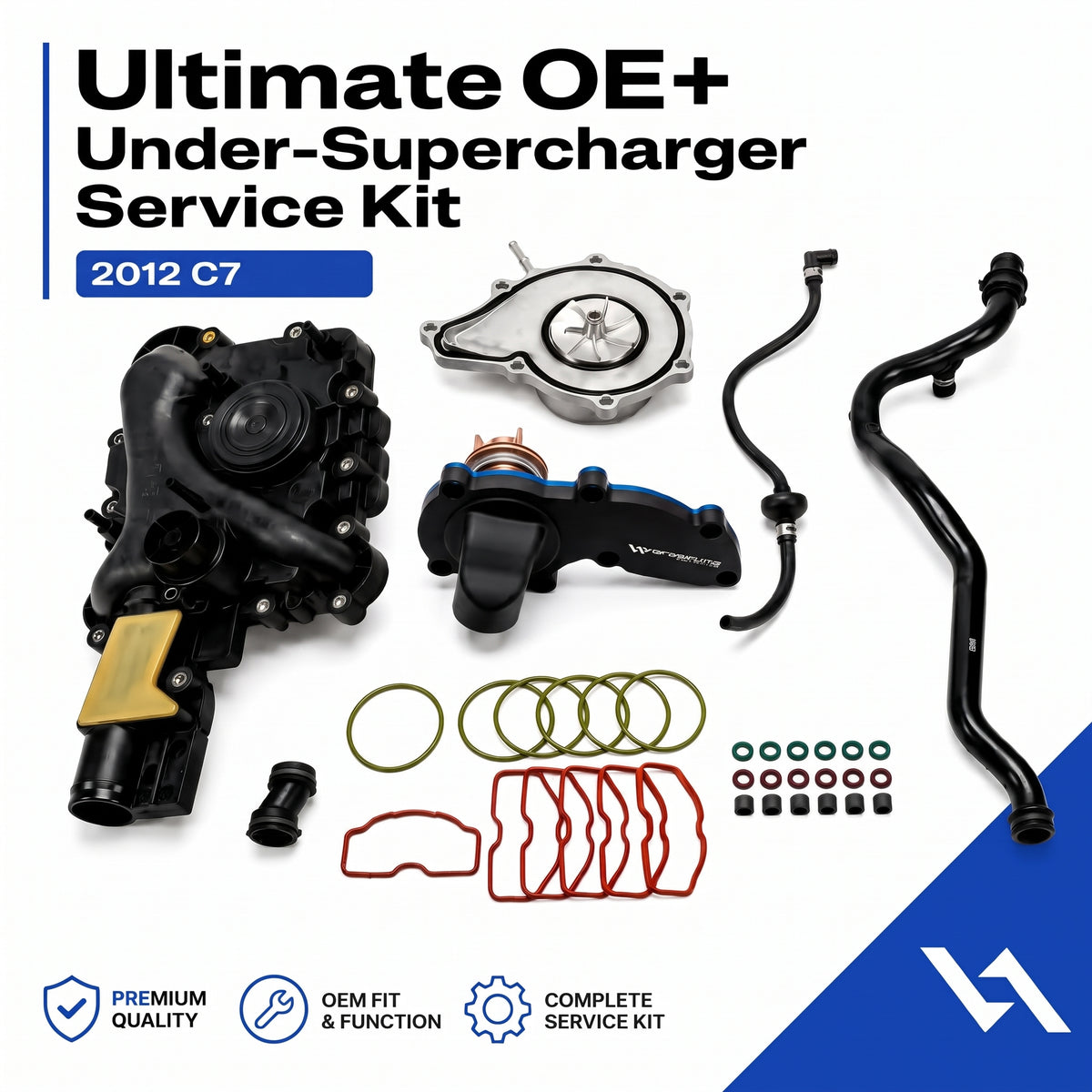

Kit Includes:

  • Complete Vorsprung Billet Thermostat Housing and Thermostat - the full billet aluminum housing with the thermostat included, not just the housing (Replaces OEM 06E121111AL)
  • Aluminum Heater Pipe - Eliminates plastic failure point (Replaces OEM 06E121065N)
  • Graf Metal Water Pump - OEM quality replacement (Replaces OEM 06E121018N)
  • OEM Hengst PCV Valve - (06E103547AC)
  • Elring Upper Intake Manifold Gaskets (x6) - (079129717D)
  • Elring Lower Intake Manifold Gaskets (x6) - (079129717B)
  • Genuine VW/Audi PCV to Supercharger Adapter Pipe - (06E103213)
  • Elring Klinger Fuel Injector Seal Kit (x6) - (06E998907E)
  • Engine Crankcase Breather Hose - (06E103207P)
  • Engine Air Intake Hose Clamp - (N10203601)

Vehicle Fitment

This kit is scoped specifically to 2012 model year Audi C7 A6 and A7 3.0T V6 Supercharged (Gen 1 EA837) cars built before May 2012, which use PCV valve 06E103547AC.

Make Model Chassis Year Engine
Audi A6 C7 2012 (built before 05/2012) 3.0T V6 Supercharged (Gen 1 EA837)
Audi A7 C7 2012 (built before 05/2012) 3.0T V6 Supercharged (Gen 1 EA837)

NOTE: 2012 A6 and A7 built in May 2012 or later, all 2013-2015 C7 A6 and A7, and the 2011-2015 4L Q7 use PCV valve 06E103547AK and need our C7 A6, A7 & 4L Q7 Under Supercharger Kit. B8.5 S4/S5, Q5/SQ5 and A8 owners should see the B8.5 Under Supercharger Kit. The build month is on the sticker in the driver's door jamb. Not sure which you need? Email your VIN to help@vorsprungautowerk.com.


Under Supercharger Kit FAQ

What's included in this Audi 2012 C7 under supercharger kit?
The complete billet aluminum thermostat housing and thermostat, aluminum heater pipe, Graf metal water pump, OEM Hengst PCV valve, Elring upper and lower intake manifold gaskets, the PCV-to-supercharger adapter pipe, an Elring injector seal kit, and the small breather hose and clamp hardware. Full part numbers are listed above.

Does the kit include just the billet thermostat housing, or the thermostat too?
Both. You get the complete billet aluminum thermostat housing and the thermostat as one assembly, so there is no separate thermostat to buy.

This kit already includes an OEM breather hose. Can I buy that part on its own?
Yes. The Engine Crankcase Breather Hose in this kit is genuine OEM part 06E103207P. If you want a spare on hand, or need to order it separately down the road without buying the whole kit again, see our standalone genuine 06E103207P PCV pipe listing.

Does this fit my 2013+ C7 A6 or A7, or a late-2012 car?
No. 2013-2015 C7 A6 and A7, plus 2012 cars built in May 2012 or later, use a different PCV valve (06E103547AK). Order our C7 A6, A7 & 4L Q7 Under Supercharger Kit instead.

How is this different from your other Gen 1 kits?
The core parts are shared across the Gen 1 kits. The difference is the PCV valve: early 2012 C7 cars use 06E103547AC (this kit), later C7 A6 and A7 and the 2011-2015 4L Q7 use 06E103547AK, and the B8.5 S4, S5, Q5 and SQ5 use 06E103547AH. Each kit ships with the valve your car is cataloged for.

Do I need to replace every part in the kit, or just the one that failed?
Once the supercharger is off the car, the labor to remove and reinstall it is the expensive part, not the parts themselves. Replacing the whole valley now means you won't be paying for that labor twice.

Are these OEM parts or aftermarket?
Both. This kit mixes genuine OEM hardware with trusted OE-supplier brands (Graf, Hengst, Elring) and a Vorsprung-engineered billet aluminum thermostat housing in place of the factory plastic piece that tends to crack. From time to time we may need to substitute gaskets for another OE equivalent due to supplier shortages, but we will never substitute hard parts.

A Word on Why This Kit Doesn't Cost What You'd Expect

A full under-supercharger kit with this much parts content should, on paper, cost more than it does. The reason it doesn't isn't that we cut something out, it's that we didn't mark up every single line item 50-100% the way a lot of bundled kits do. Ten parts at a 75% markup each adds up fast, and none of that extra margin makes the water pump spin any better.

We priced this kit off what the components actually cost to source and assemble, not off what the market would tolerate charging for convenience. Every OEM and OE-supplier part in this kit is the exact same part number you'd get anywhere else; we just didn't stack a markup on top of a markup ten times over.

  • Real Part Numbers, Real Sources: Genuine OEM hardware and trusted OE-supplier brands, not unbranded substitutes.
  • One Reasonable Markup, Not Ten: We price the kit as a kit, not as several separately-inflated line items bundled together.
  • No Convenience Tax: You're paying for the parts and the R&R this kit saves you, not for someone else's margin stack.

Bottom line: a lower price on a complete kit isn't a sign that something's missing, it's a sign that nobody padded the invoice on the way to your cart.


Why Buy From Us?

  • ✅
    Enthusiast Designed & Tested: Developed by people who actually drive and modify these cars.
  • ✅
    Tested on Our Own Cars: If we wouldn't run it ourselves, we don't sell it.
  • ✅
    Continuous R&D: We continually develop and improve our products instead of relying on generic catalog parts.
  • ✅
    Supporting Audi Platform Development: Your purchase helps fund continued development of new parts for these chassis.
  • ✅
    Real Enthusiast Support: Get help from people who understand the platform, not ticket bots.
  • ✅
    Small Team, Big Passion: Every order directly supports continued product development and innovation.
  • ✅
    Performance Without the Marketing Fluff: Purpose-built parts designed to perform.

Complete Your Build

Already in the valley? Pair your kit with:


Drive the difference. Drive Vorsprung.
