Coolant level dropping, a sweet smell after every drive, and nobody can find a puddle? Welcome to the most common complaint on the supercharged V6. An Audi 3.0T coolant leak almost always starts at a plastic part that has spent years cooking in the valley under the supercharger. The good news: there are only a handful of usual suspects, and every one of them has a permanent fix. One of the most common is the factory thermostat housing, which is why we machine a billet Audi 3.0T thermostat housing to replace it. Use this guide to find your leak first.
Signs Your Audi 3.0T Is Losing Coolant
- ✅ The low coolant warning comes on, or the reservoir drops below MIN between top-ups
- ✅ A sweet smell from the engine bay after a drive
- ✅ Pink or purple crust on parts in the valley, on hoses, or on the side of the block
- ✅ Coolant pooling in the valley when you pull the engine cover
- ✅ Coolant loss with no drips at all, sometimes with white smoke or a rough start
- ✅ A temperature gauge that climbs, wanders, or a heater that blows lukewarm
Any one of these is worth chasing now. Coolant leaks on the 3.0T rarely heal themselves, and a slow weep becomes an overheating problem on the worst possible day.
Where Audi 3.0T Coolant Leaks Start
Think of the engine in four zones. The valley under the supercharger is where most leaks begin, because that is where Audi packed the plastic cooling parts into the hottest real estate on the engine.
- Valley parts, under the supercharger: thermostat housing, water pump, the Gen 1 heater pipe and the coolant crossover pipes.
- Intercooler bricks, inside the supercharger: coolant that leaks here goes into the intake, not onto the ground.
- Block hard lines: the O-rings where coolant pipes plug into the block can weep and run down the side of the engine.
- Front end: radiator, the heat exchanger for the supercharger cooling loop, hoses and the reservoir cap.
1. Thermostat Housing (Gen 1 and CREC)
The factory housing is plastic, and after thousands of heat cycles it turns brittle, warps and cracks. It sits in the valley, so the leak usually shows up as crust and pooling under the supercharger long before you see a drip. A new plastic housing just restarts the countdown. Our billet housings are machined from 6061-T6 aluminum, keep the factory geometry and come with an OE-spec thermostat and OE gaskets: the Gen 1 billet thermostat housing replaces 06E121111AL and its earlier versions, and the CREC billet thermostat housing covers Gen 2 cars. Both are $149.99 for the housing or $199.99 with the thermostat installed. The full story is in our Audi 3.0T thermostat housing guide.
2. Heater Pipe 06E121065N (Gen 1)
On Gen 1 engines, the plastic heater pipe 06E121065N lives buried under the supercharger and fails the same way the thermostat housing does: hairline cracks, a sweet smell and coolant pooling in the valley. Replacing it with another plastic pipe makes no sense when the labor to reach it is the expensive part. Our aluminum heater pipe for the Audi 3.0T Gen 1 is a direct replacement for 06E121065N at $44.99.
3. Coolant Crossover Pipes (06E121045BB and CREC)
The crossover pipes carry coolant between the cylinder heads and the rest of the circuit, and the factory composite versions go brittle at the seams and couplers. On Gen 1 cars, the Vorsprung 06E121045BB coolant crossover pipe replaces the factory pipe and its AA, AJ and AK revisions for $54.99. CREC cars use a different upper pipe, lower pipe and coupler, all included in our CREC coolant crossover kit with genuine Audi parts and fresh gaskets for $299.99.
4. Water Pump
The mechanical water pump also sits under the supercharger. When its seal or bearing wears, coolant weeps from the weep hole, the pulley develops play, or you hear a squeak at idle. A Graf metal-impeller water pump is the OE-supplier fix at $139.99.
5. Intercooler Bricks
If the coolant disappears with no puddle and no crust, look inside the supercharger. A leaking intercooler brick pushes coolant into the intake, which shows up as coolant loss under boost, white smoke, misfires or a rough cold start. That one needs its own diagnosis, so read our Audi 3.0T intercooler leak symptoms guide before you order anything.
6. Block Hard Lines and Front-End Leaks
Not every leak is under the blower. The O-rings where hard coolant lines enter the block can weep and run down the side of the engine, and the front end has its own suspects: the radiator, hoses, the reservoir cap and the heat exchanger that cools the supercharger loop. If the heat exchanger is the problem, our heat exchanger replacement cost guide and the GP Ice heat exchanger are the place to start.
How to Find an Audi 3.0T Coolant Leak, Step by Step
- Start cold. Never open the cooling system on a hot engine. Check the reservoir level and note where it sits.
- Follow the crust. Pull the engine cover and look into the valley with a flashlight. Dried coolant leaves a pink or purple crust that points straight at the source.
- Check the sides and the front. Look along both sides of the block, the hoses, the radiator and the reservoir cap.
- Pressure test it. A cooling system pressure tester, pumped to the pressure rating on your reservoir cap, makes a slow leak show itself. Many parts stores lend testers.
- Add UV dye if it hides. Run the car, then check the valley and the block with a UV light.
- No external leak? If the system holds pressure but coolant still disappears, suspect the intercooler bricks and follow the intercooler leak checks.
Why One Valley Leak Usually Means More Are Coming
The thermostat housing, heater pipe, crossover pipes and water pump all live in the same hot valley and age on the same clock. Every one of them sits under the supercharger, so every one of them carries the same labor bill. Owners have reported dealer quotes of roughly $750 to $1,500 for a thermostat job alone. Pay that once for the thermostat, then again for the heater pipe a year later, and the Audi Tax adds up fast. The smart move is to replace the valley parts together, once, with parts that don't fail the same way twice.
Patch the Leak vs Under-Supercharger Kit vs Dealer Repair
In short: patching only the part that leaks today costs the least up front but often means another supercharger removal later. A Vorsprung under-supercharger kit replaces the usual valley failures in one visit with billet and metal parts, starting at $574.99. A dealer repair replaces the failed part, usually with factory plastic again.
| Patch the leak you can see | Vorsprung under-supercharger kit | Dealer repair | |
|---|---|---|---|
| What gets replaced | The one part leaking today | Billet thermostat housing and thermostat, Graf metal-impeller water pump, OE PCV valve, Elring intake manifold gaskets and injector seals, plus a metal heater pipe on Gen 1 kits | The failed part |
| Materials | Often plastic again | Billet aluminum and metal where the factory used plastic | Factory plastic |
| Supercharger removals | One now, likely more later | One | One per failure |
| Parts price | $44.99 to $199.99 per part (our prices) | From $574.99 | Dealer pricing |
| Labor | Paid again each time another valley part fails | Paid once | Owner-reported quotes of $750 to $1,500 for a thermostat job alone |

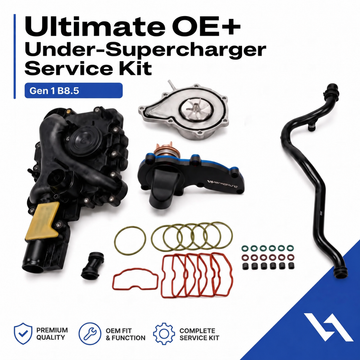

Already pulling the supercharger? Our Audi 3.0T under-supercharger kits bundle the valley parts for your exact engine so you only pay that labor once.
Shop Under-Supercharger Kits, from $574.99
✅ OE-supplier parts from Graf, Elring and Hengst · ✅ Fitment help by VIN at help@vorsprungautowerk.com · ✅ Free US shipping on orders over $425
Audi 3.0T Coolant Leak Fitment: Gen 1 vs CREC
Gen 1 (EA837): 2010 to 2016 S4, 2010 to 2017 S5 (2010 to 2012 is the Cabriolet only), 2013 to 2017 Q5 3.0T, 2014 to 2017 SQ5, 2009 to 2011 C6 A6, 2012 to 2015 C7 A6 and A7, 2011 to 2015 4L Q7 and the 2013 to 2014 A8. Gen 1 cars take the Gen 1 thermostat housing and the aluminum heater pipe. The 06E121045BB crossover pipe fits Gen 1 cars from the B8.5 and C7 generation on, so check the years on the listing. Kits: B8.5 S4, S5, Q5 and SQ5, B8 and C6, C7 A6 and A7 built from May 2012 and 4L Q7, and 2012 C7 A6 and A7 built before May 2012.
Gen 2 (CREC): 2016 to 2018 C7.5 A6 and A7, 2015 to 2018 A8 and 2017 to 2019 4M Q7. These cars take the CREC thermostat housing, the CREC coolant crossover kit and the CREC under-supercharger kit.
Not sure which engine you have? The engine code is on the vehicle data sticker. Email us your VIN and we will confirm before you order. For the bigger picture on both engines, see our Audi 3.0T supercharged engine guide.
Install Notes
- ✅ Plan for the supercharger to come off. Every valley part needs it, so do them together.
- ✅ Use the right coolant and follow the factory fill and bleed procedure for your engine. Our G13 coolant guide covers the basics.
- ✅ Clean every sealing surface and use new gaskets and O-rings. In warm climates, our TruSeal AFLAS coolant gaskets resist the heat and oil that harden factory seals. They are not for cars that see freezing winters.
- ✅ Do the PCV valve while you are in there. It shares the same labor. Our Audi 3.0T PCV valve replacement guide explains why.
- ✅ Pressure test before you put it all back together and again after the first drive.
Audi 3.0T Coolant Leak FAQ
Why is my Audi 3.0T losing coolant with no visible leak?
Two usual reasons. A small leak in the valley under the supercharger can land on hot engine parts and evaporate before it ever reaches the ground, so all you find is crust. A leaking intercooler brick inside the supercharger sends coolant into the intake instead, often under boost, with white smoke or misfires and no puddle at all. A cold pressure test and a look into the valley tell the two apart.
Where is the thermostat on an Audi 3.0T?
In the valley between the cylinder banks, under the supercharger, on both Gen 1 and CREC engines. Replacing the thermostat or its housing means removing the supercharger.
Do you have to remove the supercharger to fix a 3.0T coolant leak?
For the thermostat housing, water pump, heater pipe and crossover pipes, yes, because they all live in the valley under the supercharger. Leaks at the radiator, heat exchanger, hoses or reservoir cap at the front of the car do not need it.
How much does it cost to fix an Audi 3.0T coolant leak?
The parts are the small part of the bill. Our valley parts run from $44.99 for the aluminum heater pipe to $199.99 for a complete billet thermostat housing with thermostat. Labor to pull the supercharger is the big number: owners have reported dealer quotes of roughly $750 to $1,500 for a thermostat job alone. That is why replacing every valley part in one visit usually costs less over the life of the car.
Can I keep driving with a coolant leak?
Only with care. Keep the level topped up with the correct coolant, watch the temperature gauge, and stop if it climbs or the low coolant warning stays on. Overheating can do damage that costs far more than the leak repair.
What coolant does the Audi 3.0T use?
Audi specifies its own G-spec coolant for these engines. Check your owner's manual for the exact spec for your model year and do not top up with generic green coolant. Our G13 coolant guide covers mixing rules and refilling.
Is the CREC engine different from the Gen 1 3.0T?
Yes. The CREC engine in the 2016 to 2018 A6 and A7, 2015 to 2018 A8 and 2017 to 2019 Q7 uses different thermostat, crossover pipe and kit part numbers than Gen 1 cars. Check the engine code on the vehicle data sticker before you order.
Should I use upgraded AFLAS coolant gaskets when I fix the leak?
In warm climates, our TruSeal AFLAS coolant gaskets resist the heat and oil exposure that harden factory seals in the valley. They are rated for ambient temperatures above 23°F (-5°C) only, so cars that see freezing winters should stay with standard gaskets.
Bottom Line on the Audi 3.0T Coolant Leak
An Audi 3.0T coolant leak is almost never a mystery once you know the four zones. Check the valley first, pressure test cold, and suspect the intercooler bricks when the coolant vanishes without a trace. Then fix it once: a billet thermostat housing, an aluminum heater pipe on Gen 1 cars, fresh crossover pipes, or the whole valley in one of our under-supercharger kits. Browse everything for your engine in Audi 3.0T performance parts.
Shop the Billet Thermostat Housing, $149.99 to $199.99
Drive the difference. Drive Vorsprung.
Prices checked October 14, 2026 and subject to change. Dealer labor figures are owner-reported quotes, not Vorsprung pricing.
